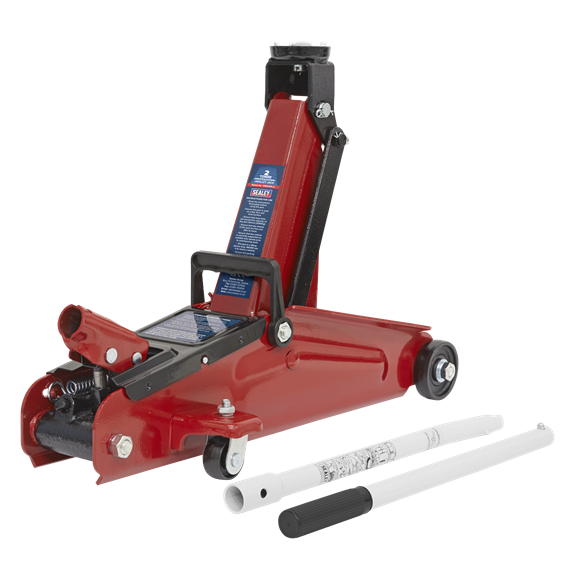

2 Tonne Short Chassis Trolley Jack with Storage Case
Model No. 1100CXD| List Price | |||
|
|
|||
| List Price | |||
|
|
|||
- VERSATILE LIFTING RANGE - Minimum saddle height 130mm, maximum saddle height 380mm.
- OVERLOAD PROTECTION - For user safety.
- EASY-TO-STORE - Supplied in tough storage case to keep dirty jack away from contents of car boot.
- STRONG CHASSIS - Steel chassis with welded castor supports and one-piece hydraulic unit.
- SUITABLE FOR - The hobby user or as an emergency mobile jack.
Capacity:
2 Tonne
Consumable Parts:
n/a
Length:
531mm
Maximum Chassis Height:
132mm
Maximum Saddle Height:
380mm
Minimum Saddle Height:
130mm
Nett Weight:
12.1kg
Model No.
Description
List Price (Exc. VAT)
List Price (Inc. VAT)
1100CXD.V5-01
Handle Grip
Name: Handle Grip
Model No: 1100CXD.V5-01
£0.49
£0.59
1100CXD.V5-02
Upper Handle c/w grip
Name: Upper Handle c/w grip
Model No: 1100CXD.V5-02
£2.79
£3.35
1100CXD.V5-03
Lower Handle
Name: Lower Handle
Model No: 1100CXD.V5-03
£3.79
£4.55
1100CXD.V5-04
Locating Pin
Name: Locating Pin
Model No: 1100CXD.V5-04
£0.49
£0.59
1100CXD.V5-05
Retaining Spring
Name: Retaining Spring
Model No: 1100CXD.V5-05
£0.49
£0.59
1100CXD.V5-06
Rear Axle
Name: Rear Axle
Model No: 1100CXD.V5-06
£2.49
£2.99
1100CXD.V5-07
Spindle Side Member
Name: Spindle Side Member
Model No: 1100CXD.V5-07
£0.49
£0.59
1100CXD.V5-08
Support Shaft
Name: Support Shaft
Model No: 1100CXD.V5-08
£2.49
£2.99
1100CXD.V5-09
Retaining Ring 13mm
Name: Retaining Ring 13mm
Model No: 1100CXD.V5-09
£0.49
£0.59
1100CXD.V5-10
Linking Rod
Name: Linking Rod
Model No: 1100CXD.V5-10
£1.99
£2.39
1100CXD.V5-11
Cover Plate
Name: Cover Plate
Model No: 1100CXD.V5-11
£1.29
£1.55
1100CXD.V5-12
Lifting Arm Assembly
Name: Lifting Arm Assembly
Model No: 1100CXD.V5-12
£13.99
£16.79
1100CXD.V5-13
Retaining Ring 17mm
Name: Retaining Ring 17mm
Model No: 1100CXD.V5-13
£0.49
£0.59
1100CXD.V5-14
Pin 2 x 20
Name: Pin 2 x 20
Model No: 1100CXD.V5-14
£0.49
£0.59
1100CXD.V5-15
Saddle Pin
Name: Saddle Pin
Model No: 1100CXD.V5-15
£0.49
£0.59
1100CXD.V5-16
Saddle, Black Serrated Cup (F) Ø 50mm
Name: Saddle, Black Serrated Cup (F) Ø 50mm
Model No: 1100CXD.V5-16
£1.29
£1.55
1100CXD.V5-17
Side Frame, R/H
Name: Side Frame, R/H
Model No: 1100CXD.V5-17
£12.49
£14.99
1100CXD.V5-20
Carrying Handle
Name: Carrying Handle
Model No: 1100CXD.V5-20
£0.79
£0.95
1100CXD.V5-21
Torsion Spring Pins
Name: Torsion Spring Pins
Model No: 1100CXD.V5-21
£0.49
£0.59
1100CXD.V5-23
Spacer Front Wheel
Name: Spacer Front Wheel
Model No: 1100CXD.V5-23
£0.49
£0.59
1100CXD.V5-24
Wheel, Front Fixed, (D: 65 W: 18 B: 22)
Name: Wheel, Front Fixed, (D: 65 W: 18 B: 22)
Model No: 1100CXD.V5-24
£2.29
£2.75
1100CXD.V5-25
Bracket Part
Name: Bracket Part
Model No: 1100CXD.V5-25
£3.49
£4.19
1100CXD.V5-26
Bracket Spindle
Name: Bracket Spindle
Model No: 1100CXD.V5-26
£0.79
£0.95
1100CXD.V5-27
Spindle, Front Wheel
Name: Spindle, Front Wheel
Model No: 1100CXD.V5-27
£1.49
£1.79
1100CXD.V5-28
Cross Head Pin
Name: Cross Head Pin
Model No: 1100CXD.V5-28
£0.99
£1.19
1100CXD.V5-29
Wheel, Swivel Castor, Single Bolt (D: 40 W: 17 B: 8 H: 67)
Name: Wheel, Swivel Castor, Single Bolt (D: 40 W: 17 B: 8 H: 67)
Model No: 1100CXD.V5-29
£0.79
£0.95
1100CXD.V5-32
Bolt M8x22
Name: Bolt M8x22
Model No: 1100CXD.V5-32
£0.49
£0.59
1100CXD.V5-33
Steel Ball Bearing Race
Name: Steel Ball Bearing Race
Model No: 1100CXD.V5-33
£0.49
£0.59
1100CXD.V5-36
Side Frame, L/H
Name: Side Frame, L/H
Model No: 1100CXD.V5-36
£12.49
£14.99
1100CXD.V5-37
Returning Spring Dia 15.2mm
Name: Returning Spring Dia 15.2mm
Model No: 1100CXD.V5-37
£0.99
£1.19
1100CXD.V5-38
Hydraulic Unit Assembly
Name: Hydraulic Unit Assembly
Model No: 1100CXD.V5-38
£35.49
£42.59
1100CXD.V5-38.01
Piston Rod
Name: Piston Rod
Model No: 1100CXD.V5-38.01
£5.79
£6.95
1100CXD.V5-38.02
Piston Ring
Name: Piston Ring
Model No: 1100CXD.V5-38.02
£0.79
£0.95
1100CXD.V5-38.03
Back-up Ring
Name: Back-up Ring
Model No: 1100CXD.V5-38.03
£0.49
£0.59
1100CXD.V5-38.04
Y-type Gasket Ring
Name: Y-type Gasket Ring
Model No: 1100CXD.V5-38.04
£0.49
£0.59
1100CXD.V5-38.05
Cylinder
Name: Cylinder
Model No: 1100CXD.V5-38.05
£4.79
£5.75
1100CXD.V5-38.06
Steel Washer
Name: Steel Washer
Model No: 1100CXD.V5-38.06
£0.49
£0.59
1100CXD.V5-38.07
Filter Oil Tube
Name: Filter Oil Tube
Model No: 1100CXD.V5-38.07
£0.49
£0.59
1100CXD.V5-38.09
Cylinder Base
Name: Cylinder Base
Model No: 1100CXD.V5-38.09
£16.29
£19.55
1100CXD.V5-38.11
O-Ring
Name: O-Ring
Model No: 1100CXD.V5-38.11
£0.49
£0.59
1100CXD.V5-38.12
Slow Spring
Name: Slow Spring
Model No: 1100CXD.V5-38.12
£0.49
£0.59
1100CXD.V5-38.13
Release Valve
Name: Release Valve
Model No: 1100CXD.V5-38.13
£0.49
£0.59
1100CXD.V5-38.14
Washer of Pump Body
Name: Washer of Pump Body
Model No: 1100CXD.V5-38.14
£0.49
£0.59
1100CXD.V5-38.15
Pump Body
Name: Pump Body
Model No: 1100CXD.V5-38.15
£0.99
£1.19
1100CXD.V5-38.16
Overload Valve Adjusting Rod
Name: Overload Valve Adjusting Rod
Model No: 1100CXD.V5-38.16
£0.49
£0.59
1100CXD.V5-38.17
Safety Valve Spring
Name: Safety Valve Spring
Model No: 1100CXD.V5-38.17
£0.49
£0.59
1100CXD.V5-38.18
Spring Base
Name: Spring Base
Model No: 1100CXD.V5-38.18
£0.49
£0.59
1100CXD.V5-38.20
Top Cup
Name: Top Cup
Model No: 1100CXD.V5-38.20
£3.49
£4.19
1100CXD.V5-38.21
O-Ring
Name: O-Ring
Model No: 1100CXD.V5-38.21
£0.49
£0.59
1100CXD.V5-38.22
Upper Sealing Ring of Reservoir
Name: Upper Sealing Ring of Reservoir
Model No: 1100CXD.V5-38.22
£0.49
£0.59
1100CXD.V5-38.23
Reservoir
Name: Reservoir
Model No: 1100CXD.V5-38.23
£2.79
£3.35
1100CXD.V5-38.24
Oil Filter Plug
Name: Oil Filter Plug
Model No: 1100CXD.V5-38.24
£0.49
£0.59
1100CXD.V5-38.25
Back-up Ring of Reservoir
Name: Back-up Ring of Reservoir
Model No: 1100CXD.V5-38.25
£0.49
£0.59
1100CXD.V5-38.26
O-Ring, (Ex: 12.05 In: 6.81 Cs: 2.62)
Name: O-Ring, (Ex: 12.05 In: 6.81 Cs: 2.62)
Model No: 1100CXD.V5-38.26
£0.49
£0.59
1100CXD.V5-38.27
Nylon Ring
Name: Nylon Ring
Model No: 1100CXD.V5-38.27
£0.49
£0.59
1100CXD.V5-38.28
Pump Plunger
Name: Pump Plunger
Model No: 1100CXD.V5-38.28
£0.99
£1.19
1100CXD.V5-38.29
Pump Plunger Pin Base
Name: Pump Plunger Pin Base
Model No: 1100CXD.V5-38.29
£0.49
£0.59
1100CXD.V5-38.30
Piston Pin
Name: Piston Pin
Model No: 1100CXD.V5-38.30
£0.49
£0.59
1100CXD.V5-38.31
Connector Pin
Name: Connector Pin
Model No: 1100CXD.V5-38.31
£0.49
£0.59
1100CXD.V5-38.32
Handle Sleeve
Name: Handle Sleeve
Model No: 1100CXD.V5-38.32
£1.79
£2.15
1100CXD.V5-38.33
Pin 2 x 16
Name: Pin 2 x 16
Model No: 1100CXD.V5-38.33
£0.49
£0.59
1100CXD.V5-SC
Storage Case for 1100CXD.V5
Name: Storage Case for 1100CXD.V5
Model No: 1100CXD.V5-SC
£6.99
£8.39
FWM12.S
Flat Washer M12 Zinc
Name: Flat Washer M12 Zinc
Model No: FWM12.S
£0.79
£0.95
FWM8.S
Flat Washer M8 Zinc
Name: Flat Washer M8 Zinc
Model No: FWM8.S
£0.49
£0.59
SB-4.0
Steel Ball 4.0mm
Name: Steel Ball 4.0mm
Model No: SB-4.0
£0.79
£0.95
SB-6.0
Steel Ball 6.0mm
Name: Steel Ball 6.0mm
Model No: SB-6.0
£0.79
£0.95
SN12.S
Steel Nut M12 Zinc
Name: Steel Nut M12 Zinc
Model No: SN12.S
£0.99
£1.19
SN8.S
Steel Nut M8 Zinc
Name: Steel Nut M8 Zinc
Model No: SN8.S
£0.79
£0.95
