Air Jack 10 Tonne
Model No. AJS10000| List Price | |||
|
|
|||
| List Price | |||
|
|
|||

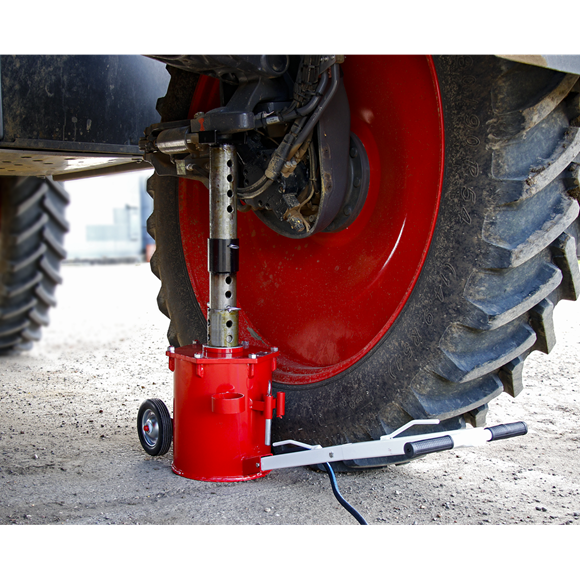

- Ideal for heavy plant, tractors and commercial vehicles.
- Multiple lifting and locking positions achieved using extension tube with multi-position pin support.
- Removable 2-piece handle aids easy storage.
- Requires 200psi of air pressure to reach optimum performance.
- This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Air Consumption:
n/a
Capacity:
10 Tonne
Chassis Length:
n/a
Extensions:
561mm
Max. Height (inc. Extn)/Capacity-Stage 1 (mm/tonne):
n/a
Max. Height (inc. Extn)/Capacity-Stage 2 (mm/tonne):
n/a
Max. Height (inc. Extn)/Capacity-Stage 3 (mm/tonne):
n/a
Maximum Length:
1480mm
Minimum Saddle Height:
447mm
Nett Weight:
80kg
Overall Width:
n/a
Piston Stroke:
292mm
Width without Wheels:
n/a
Working Pressure:
200psi
Model No.
Description
List Price (Exc. VAT)
List Price (Inc. VAT)
AJS10000.01
Lower post
Name: Lower post
Model No: AJS10000.01
£116.99
£140.39
AJS10000.02
Guide ring
Name: Guide ring
Model No: AJS10000.02
£37.49
£44.99
AJS10000.03
Seal ring
Name: Seal ring
Model No: AJS10000.03
£66.49
£79.79
AJS10000.04
Square plate
Name: Square plate
Model No: AJS10000.04
£9.49
£11.39
AJS10000.05
O-ring 16x2.4
Name: O-ring 16x2.4
Model No: AJS10000.05
£1.99
£2.39
AJS10000.06
Bolt m12x25
Name: Bolt m12x25
Model No: AJS10000.06
£3.99
£4.79
AJS10000.07
Air cylinder set (main jack body)
Name: Air cylinder set (main jack body)
Model No: AJS10000.07
£374.49
£449.39
AJS10000.08
Washer 20
Name: Washer 20
Model No: AJS10000.08
£1.49
£1.79
AJS10000.09
Wheel,fixed (D:200 W:43 B:20)
Name: Wheel,fixed (D:200 W:43 B:20)
Model No: AJS10000.09
£26.49
£31.79
AJS10000.10
Cotter Pin M3 x 50
Name: Cotter Pin M3 x 50
Model No: AJS10000.10
£1.49
£1.79
AJS10000.11
Bolt m8x60
Name: Bolt m8x60
Model No: AJS10000.11
£1.49
£1.79
AJS10000.12
3/8" air hose set
Name: 3/8" air hose set
Model No: AJS10000.12
£28.49
£34.19
AJS10000.13
Air valve assembly
Name: Air valve assembly
Model No: AJS10000.13
£74.49
£89.39
AJS10000.14
Handle Grip for Jack Handle
Name: Handle Grip for Jack Handle
Model No: AJS10000.14
£2.99
£3.59
AJS10000.15
Washer m8
Name: Washer m8
Model No: AJS10000.15
£1.49
£1.79
AJS10000.17
Locking pin
Name: Locking pin
Model No: AJS10000.17
£14.49
£17.39
AJS10000.18
Safety pin
Name: Safety pin
Model No: AJS10000.18
£9.49
£11.39
AJS10000.19
Jack Handle Assembly T-Shape
Name: Jack Handle Assembly T-Shape
Model No: AJS10000.19
£78.49
£94.19
AJS10000.20
Guide plate
Name: Guide plate
Model No: AJS10000.20
£18.99
£22.79
AJS10000.21
Cap set
Name: Cap set
Model No: AJS10000.21
£146.49
£175.79
AJS10000.23
Extension post
Name: Extension post
Model No: AJS10000.23
£105.49
£126.59
AJS10000.24
Upper post
Name: Upper post
Model No: AJS10000.24
£105.49
£126.59
SN16.S
Steel Nut M16 Zinc
Name: Steel Nut M16 Zinc
Model No: SN16.S
£0.99
£1.19
SN8.S
Steel Nut M8 Zinc
Name: Steel Nut M8 Zinc
Model No: SN8.S
£1.49
£1.79
- Ideal for heavy plant, tractors and commercial vehicles.
- Multiple lifting and locking positions achieved using extension tube with multi-position pin support.
- Removable 2-piece handle aids easy storage.
- Requires 200psi of air pressure to reach optimum performance.
- This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Air Consumption:
n/a
Capacity:
10 Tonne
Chassis Length:
n/a
Extensions:
561mm
Max. Height (inc. Extn)/Capacity-Stage 1 (mm/tonne):
n/a
Max. Height (inc. Extn)/Capacity-Stage 2 (mm/tonne):
n/a
Max. Height (inc. Extn)/Capacity-Stage 3 (mm/tonne):
n/a
Maximum Length:
1480mm
Minimum Saddle Height:
447mm
Nett Weight:
80kg
Overall Width:
n/a
Piston Stroke:
292mm
Width without Wheels:
n/a
Working Pressure:
200psi
