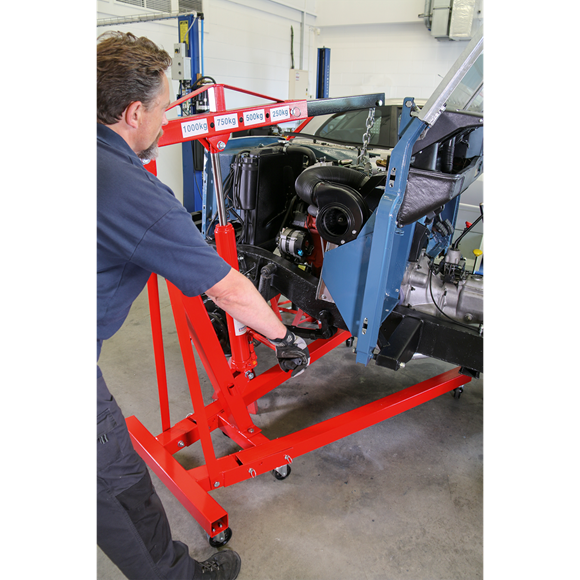

1 Tonne Folding Engine Crane
Model No. SC10| List Price | |||
|
|
|||
| List Price | |||
|
|
|||
- Super economy model delivered in knock-down form for reduced freight cost.
- Fast folding model provides easy storage and transportation.
- Heavy-duty castors.
- Weighs only 67kg and is perfect for mobile or workshop use.
- Side pump access with removable handle.
Height Jib Down:
1390mm
Height Legs Folded:
1440mm
Height of Frame:
185mm
Length Legs Extended:
1620mm

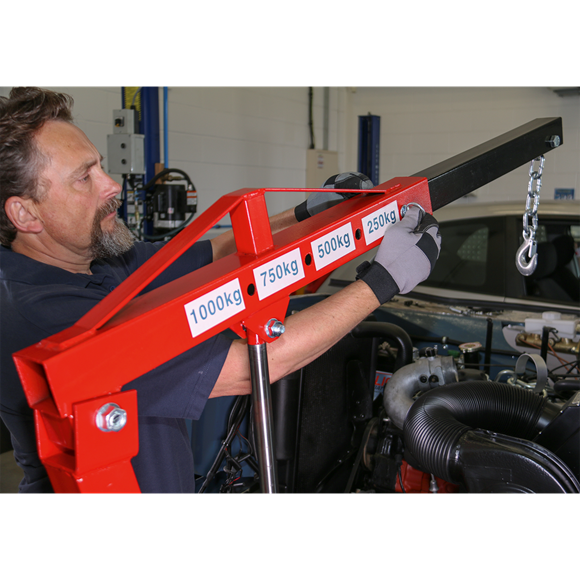

Length of Jib Position 1:
830mm
Length of Jib Position 2:
950mm
Length of Jib Position 3:
1070mm
Length of Jib Position 4:
1190mm
Length of Jib Position 5:
n/a
Length:
1620mm
Lifting Capacity in Position 1:
1000kg
Lifting Capacity in Position 2:
750kg
Lifting Capacity in Position 3:
500kg
Lifting Capacity in Position 4:
250kg
Lifting Capacity in Position 5:
n/a
Max. Lift Ht at Jib Position 1:
1820mm
Max. Lift Ht at Jib Position 2:
1935mm
Max. Lift Ht at Jib Position 3:
2030mm
Max. Lift Ht at Jib Position 4:
2150mm
Max. Lift Ht at Jib Position 5:
n/a
Nett Weight:
67kg
Rear Width:
700mm
Width Front Frame:
920mm
Width Inside Front Frame:
780mm
Model No.
Description
List Price (Exc. VAT)
List Price (Inc. VAT)
FWM14.S
Flat Washer M14 Zinc
Name: Flat Washer M14 Zinc
Model No: FWM14.S
£0.79
£0.95
FWM16.S
Flat Washer M16 Zinc
Name: Flat Washer M16 Zinc
Model No: FWM16.S
£0.99
£1.19
FWM18.S
Flat Washer M18 Zinc
Name: Flat Washer M18 Zinc
Model No: FWM18.S
£0.99
£1.19
FWM8.S
Flat Washer M8 Zinc
Name: Flat Washer M8 Zinc
Model No: FWM8.S
£0.49
£0.59
HHB14100.S
Hex Head Bolt M14 x 100mm
Name: Hex Head Bolt M14 x 100mm
Model No: HHB14100.S
£1.49
£1.79
HHB1480.S
Hex Head Bolt M14 x 80mm
Name: Hex Head Bolt M14 x 80mm
Model No: HHB1480.S
£1.49
£1.79
HHB1680.S
Hex Head Bolt M16 x 80mm
Name: Hex Head Bolt M16 x 80mm
Model No: HHB1680.S
£0.99
£1.19
HHB1690.S
Hex Head Bolt M16 x 90mm
Name: Hex Head Bolt M16 x 90mm
Model No: HHB1690.S
£1.49
£1.79
HHB18110.S
Hex Head Bolt M18 x 110mm
Name: Hex Head Bolt M18 x 110mm
Model No: HHB18110.S
£1.49
£1.79
PH20.V4-05
Pin for legs
Name: Pin for legs
Model No: PH20.V4-05
£1.79
£2.15
PH20.V4-I
Pumping handle
Name: Pumping handle
Model No: PH20.V4-I
£2.96
£3.55
SC10.V3-15
Pin (95mm)
Name: Pin (95mm)
Model No: SC10.V3-15
£1.16
£1.39
SC10.V3-21
Wheel,swivel castor,4 bolt (D:90 W:30 B:10 H:120)
Name: Wheel,swivel castor,4 bolt (D:90 W:30 B:10 H:120)
Model No: SC10.V3-21
£7.46
£8.95
SC10.V3-22
Wheel,swivel castor,4 bolt (D:75 W:30 B:10 H:100)
Name: Wheel,swivel castor,4 bolt (D:75 W:30 B:10 H:100)
Model No: SC10.V3-22
£6.11
£7.33
SC10.V3-D
Support brace
Name: Support brace
Model No: SC10.V3-D
£4.76
£5.71
SC10.V3-E
Hydraulic Ram for SC10.V3
Name: Hydraulic Ram for SC10.V3
Model No: SC10.V3-E
£93.95
£112.74
SC10.V3-E.RK
Repair kit for hydraulic unit
Name: Repair kit for hydraulic unit
Model No: SC10.V3-E.RK
£2.99
£3.59
SC10.V3-H
Chain (c/w hook)
Name: Chain (c/w hook)
Model No: SC10.V3-H
£8.81
£10.57
SC10.V4-B
Boom
Name: Boom
Model No: SC10.V4-B
£34.91
£41.89
SC10.V4-C
Post
Name: Post
Model No: SC10.V4-C
£37.61
£45.13
SC10.V4-G
Leg (l:1350 d:70x70)
Name: Leg (l:1350 d:70x70)
Model No: SC10.V4-G
£23.21
£27.85
SN14.S
Steel Nut M14 Zinc
Name: Steel Nut M14 Zinc
Model No: SN14.S
£0.99
£1.19
SN16.S
Steel Nut M16 Zinc
Name: Steel Nut M16 Zinc
Model No: SN16.S
£0.99
£1.19
SN18.S
Steel Nut M18 Zinc
Name: Steel Nut M18 Zinc
Model No: SN18.S
£0.99
£1.19
SN8.S
Steel Nut M8 Zinc
Name: Steel Nut M8 Zinc
Model No: SN8.S
£0.79
£0.95
SS820.S
Hex Head Set Screw M8 X 20 Zinc
Name: Hex Head Set Screw M8 X 20 Zinc
Model No: SS820.S
£0.79
£0.95
SWM14.S
Spring Washer M14 Zinc
Name: Spring Washer M14 Zinc
Model No: SWM14.S
£0.99
£1.19
SWM16.S
Spring Washer M16 Zinc
Name: Spring Washer M16 Zinc
Model No: SWM16.S
£0.99
£1.19
SWM18.S
Spring Washer M18 Zinc
Name: Spring Washer M18 Zinc
Model No: SWM18.S
£0.99
£1.19
SWM8.S
Spring Washer M8 Zinc
Name: Spring Washer M8 Zinc
Model No: SWM8.S
£0.49
£0.59
