13mm 2 Mechanical/Variable Speed Hammer Drill 1050W/230V
Model No. SD1000| List Price | |||
|
|
|||
| List Price | |||
|
|
|||
- Professional heavy-duty 1050W hammer drill with variable speed and reverse controls.
- Suitable for driving and removing screws.
- 2-Speed mechanical gearbox gives added versatility and hammer action allows up to Ø16mm capacity in masonry.
- Features high quality Ø13mm chuck with soft grip handle and body.

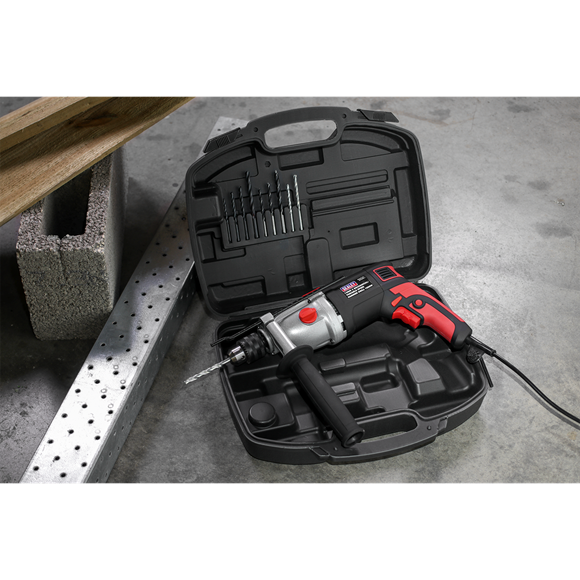

- Supplied with adjustable side handle, depth stop and 2m cable with 3-pin plug. all in a storage case with accessories.
Chuck Size:
Ø13mm
Drilling Capacities:
Wood:
Ø25mm
Steel:
Ø13mm
Masonry:
Ø16mm
Hammer Action:
0-17600/0-48000bpm
Motor Power:
1050W
Nett Weight:
4.5kg
No-Load Speed:
0-1100/0-3000rpm
Supply:
230V
Model No.
Description
List Price (Exc. VAT)
List Price (Inc. VAT)
B/6002
Bearing 6002
Name: Bearing 6002
Model No: B/6002
£8.54
£10.25
B/607Z
Bearing 607z
Name: Bearing 607z
Model No: B/607Z
£9.29
£11.15
B/609Z
Bearing 609z
Name: Bearing 609z
Model No: B/609Z
£7.91
£9.49
B/627
Bearing 627(so)
Name: Bearing 627(so)
Model No: B/627
£7.19
£8.63
B/HK0808
Needle bearing hk0808
Name: Needle bearing hk0808
Model No: B/HK0808
£15.99
£19.19
SD1000.V3-01
Cable
Name: Cable
Model No: SD1000.V3-01
£4.31
£5.17
SD1000.V3-02
Cable Grommet
Name: Cable Grommet
Model No: SD1000.V3-02
£0.49
£0.59
SD1000.V3-03
Cable clip
Name: Cable clip
Model No: SD1000.V3-03
£0.44
£0.53
SD1000.V3-04
Capacitor
Name: Capacitor
Model No: SD1000.V3-04
£1.34
£1.61
SD1000.V3-05
switch press button c/w safety lock & speed control
Name: switch press button c/w safety lock & speed control
Model No: SD1000.V3-05
£6.56
£7.87
SD1000.V3-06
reverse/ forward lever for switch
Name: reverse/ forward lever for switch
Model No: SD1000.V3-06
£0.44
£0.53
SD1000.V3-07
Tapping screw st4 x 16
Name: Tapping screw st4 x 16
Model No: SD1000.V3-07
£0.44
£0.53
SD1000.V3-08
Right handle
Name: Right handle
Model No: SD1000.V3-08
£3.59
£4.31
SD1000.V3-09
Carbon brush (so)
Name: Carbon brush (so)
Model No: SD1000.V3-09
£1.61
£1.93
SD1000.V3-10
Lower brush holder
Name: Lower brush holder
Model No: SD1000.V3-10
£0.71
£0.85
SD1000.V3-11
Inductor
Name: Inductor
Model No: SD1000.V3-11
£1.16
£1.39
SD1000.V3-12
Upper brush holder
Name: Upper brush holder
Model No: SD1000.V3-12
£0.71
£0.85
SD1000.V3-13
Coil spring
Name: Coil spring
Model No: SD1000.V3-13
£0.89
£1.07
SD1000.V3-14
Tapping screw st3 x 10
Name: Tapping screw st3 x 10
Model No: SD1000.V3-14
£0.44
£0.53
SD1000.V3-15
Label, r/h side
Name: Label, r/h side
Model No: SD1000.V3-15
£0.44
£0.53
SD1000.V3-16
Housing
Name: Housing
Model No: SD1000.V3-16
£10.61
£12.73
SD1000.V3-17
Label, l/h side
Name: Label, l/h side
Model No: SD1000.V3-17
£0.44
£0.53
SD1000.V3-18
Stator
Name: Stator
Model No: SD1000.V3-18
£11.96
£14.35
SD1000.V3-19
Waveform buckle
Name: Waveform buckle
Model No: SD1000.V3-19
£0.44
£0.53
SD1000.V3-20
Plain washer m4
Name: Plain washer m4
Model No: SD1000.V3-20
£0.44
£0.53
SD1000.V3-21
Rd Head S/T Screw M4 X 65 Black
Name: Rd Head S/T Screw M4 X 65 Black
Model No: SD1000.V3-21
£0.44
£0.53
SD1000.V3-22
Fan guide
Name: Fan guide
Model No: SD1000.V3-22
£0.44
£0.53
SD1000.V3-24
Rotor
Name: Rotor
Model No: SD1000.V3-24
£23.39
£28.07
SD1000.V3-26
Supporter
Name: Supporter
Model No: SD1000.V3-26
£3.14
£3.77
SD1000.V3-28
Middle gear
Name: Middle gear
Model No: SD1000.V3-28
£3.14
£3.77
SD1000.V3-29
Pin b5 x 70
Name: Pin b5 x 70
Model No: SD1000.V3-29
£0.44
£0.53
SD1000.V3-30
Slide
Name: Slide
Model No: SD1000.V3-30
£0.71
£0.85
SD1000.V3-32
Circlip 16mm
Name: Circlip 16mm
Model No: SD1000.V3-32
£0.44
£0.53
SD1000.V3-33
Steel ball m4
Name: Steel ball m4
Model No: SD1000.V3-33
£0.44
£0.53
SD1000.V3-34
Spring Dia 3.5mm
Name: Spring Dia 3.5mm
Model No: SD1000.V3-34
£0.44
£0.53
SD1000.V3-35
O-ring, (Ex: 12.79 In: 11.12 Cs: 0.84)
Name: O-ring, (Ex: 12.79 In: 11.12 Cs: 0.84)
Model No: SD1000.V3-35
£0.44
£0.53
SD1000.V3-36
Knob, Red Plastic, OD: 30mm, 10x5mm Crescent Female Fitting
Name: Knob, Red Plastic, OD: 30mm, 10x5mm Crescent Female Fitting
Model No: SD1000.V3-36
£0.44
£0.53
SD1000.V3-37
Rd Head S/T Screw M4 X 45 Black
Name: Rd Head S/T Screw M4 X 45 Black
Model No: SD1000.V3-37
£0.44
£0.53
SD1000.V3-38
Gear box
Name: Gear box
Model No: SD1000.V3-38
£8.09
£9.71
SD1000.V3-39
Pin 3x8
Name: Pin 3x8
Model No: SD1000.V3-39
£0.44
£0.53
SD1000.V3-40
Seal ring m12
Name: Seal ring m12
Model No: SD1000.V3-40
£0.44
£0.53
SD1000.V3-41
Slow gear
Name: Slow gear
Model No: SD1000.V3-41
£2.06
£2.47
SD1000.V3-42
Clutch
Name: Clutch
Model No: SD1000.V3-42
£3.86
£4.63
SD1000.V3-43
Gudgeon pin
Name: Gudgeon pin
Model No: SD1000.V3-43
£0.44
£0.53
SD1000.V3-44
Quick gear
Name: Quick gear
Model No: SD1000.V3-44
£2.24
£2.69
SD1000.V3-46
Shifting block
Name: Shifting block
Model No: SD1000.V3-46
£0.44
£0.53
SD1000.V3-47
Push button
Name: Push button
Model No: SD1000.V3-47
£0.44
£0.53
SD1000.V3-48
Push button seat
Name: Push button seat
Model No: SD1000.V3-48
£0.44
£0.53
SD1000.V3-49
Calm impact tooth
Name: Calm impact tooth
Model No: SD1000.V3-49
£1.16
£1.39
SD1000.V3-50
Spring Dia 14.5mm
Name: Spring Dia 14.5mm
Model No: SD1000.V3-50
£0.44
£0.53
SD1000.V3-51
Act impact tooth
Name: Act impact tooth
Model No: SD1000.V3-51
£2.69
£3.23
SD1000.V3-53
Steel ball 5mm
Name: Steel ball 5mm
Model No: SD1000.V3-53
£0.44
£0.53
SD1000.V3-54
Output spindle
Name: Output spindle
Model No: SD1000.V3-54
£4.76
£5.71
SD1000.V3-55
Felt washer
Name: Felt washer
Model No: SD1000.V3-55
£0.44
£0.53
SD1000.V3-56
Seal ring
Name: Seal ring
Model No: SD1000.V3-56
£0.44
£0.53
SD1000.V3-57
External Circlip 25.8mm ID.
Name: External Circlip 25.8mm ID.
Model No: SD1000.V3-57
£0.44
£0.53
SD1000.V3-58
Chuck 1.5-13mm 1/2x20unf
Name: Chuck 1.5-13mm 1/2x20unf
Model No: SD1000.V3-58
£5.66
£6.79
SD1000.V3-60
Chuck screw m6x25 (lh)
Name: Chuck screw m6x25 (lh)
Model No: SD1000.V3-60
£0.44
£0.53
SD1000.V3-61
Side handle
Name: Side handle
Model No: SD1000.V3-61
£2.96
£3.55
SD1000.V3-62
Scale
Name: Scale
Model No: SD1000.V3-62
£0.71
£0.85
SM2503.DCK
Drill chuck key
Name: Drill chuck key
Model No: SM2503.DCK
£31.79
£38.15
- Professional heavy-duty 1050W hammer drill with variable speed and reverse controls.
- Suitable for driving and removing screws.
- 2-Speed mechanical gearbox gives added versatility and hammer action allows up to Ø16mm capacity in masonry.
- Features high quality Ø13mm chuck with soft grip handle and body.
- Supplied with adjustable side handle, depth stop and 2m cable with 3-pin plug. all in a storage case with accessories.
Chuck Size:
Ø13mm
Drilling Capacities:
Wood:
Ø25mm
Steel:
Ø13mm
Masonry:
Ø16mm
Hammer Action:
0-17600/0-48000bpm
Motor Power:
1050W
Nett Weight:
4.5kg
No-Load Speed:
0-1100/0-3000rpm
Supply:
230V
