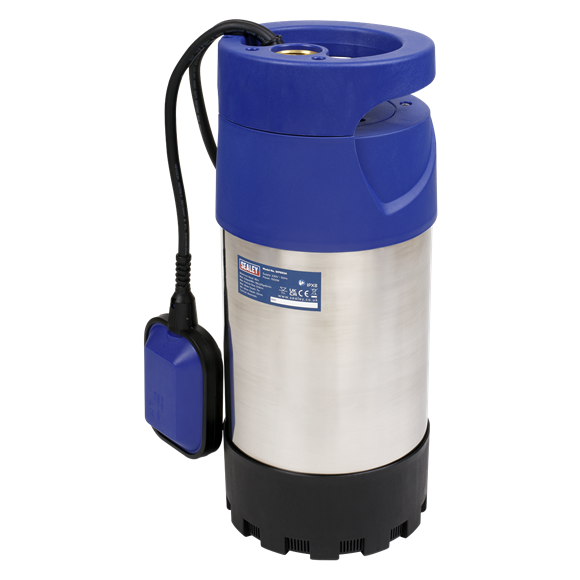

92L/min 40m Head Automatic Submersible Stainless Water Pump

Model No. WPS92A
List Price
Buy Online
Image Thumbnail Image Thumbnail Image Thumbnail
List Price

  • Manufactured from corrosion resistant materials with stainless steel body and motor case.
  • Max. Output: 92L(20gal)/min.
  • Massive maximum head of 40m makes this unit ideal for wells.
  • Fitted with automatic cut-out.
  • Designed for clean water although these pumps will accept small particles up to 0.5mm.
  • Suitable for the effective drainage of cellars, sinks, cisterns, baths and the general transfer of water.

Cut-Out:

Automatic

Maximum Head:

40m

Maximum Particle Size:

0.5mm

Maximum Water Depth:

7m

Minimum Water Depth:

32mm

Motor Power:

1000W

Nett Weight:

8.77kg

Outlet OD:

Ø32mm

Supply:

230V

Model No.

Description

List Price (Exc. VAT)

List Price (Inc. VAT)

O-ring, (Ex: 41.41 In: 36.17 Cs: 2.62) AK4560D.213 Spare Part Image

AK4560D.213

O-ring, (Ex: 41.41 In: 36.17 Cs: 2.62)

Name: O-ring, (Ex: 41.41 In: 36.17 Cs: 2.62)

Model No: AK4560D.213

£4.76

£5.71

Bearing 6201zz B/6201ZZ Spare Part Image

B/6201ZZ

Bearing 6201zz

Name: Bearing 6201zz

Model No: B/6201ZZ

£10.49

£12.59

Bearing 6202zz B/6202ZZ Spare Part Image

B/6202ZZ

Bearing 6202zz

Name: Bearing 6202zz

Model No: B/6202ZZ

£13.29

£15.95

Handle WP00202035 Spare Part Image

WP00202035

Handle

Name: Handle

Model No: WP00202035

£2.69

£3.23

Rear pump shell WP00302023 Spare Part Image

WP00302023

Rear pump shell

Name: Rear pump shell

Model No: WP00302023

£6.11

£7.33

Main pump shell WP00403047 Spare Part Image

WP00403047

Main pump shell

Name: Main pump shell

Model No: WP00403047

£5.21

£6.25

Pump base WP00601047 Spare Part Image

WP00601047

Pump base

Name: Pump base

Model No: WP00601047

£4.31

£5.17

Pressing ring WP00801007 Spare Part Image

WP00801007

Pressing ring

Name: Pressing ring

Model No: WP00801007

£0.89

£1.07

Impeller WP00904091 Spare Part Image

WP00904091

Impeller

Name: Impeller

Model No: WP00904091

£2.06

£2.47

End cover WP01101010 Spare Part Image

WP01101010

End cover

Name: End cover

Model No: WP01101010

£2.96

£3.55

Float switch 10A 250V (IP68) Blue
 WP01401001 Spare Part Image

WP01401001

Float switch 10A 250V (IP68) Blue

Name: Float switch 10A 250V (IP68) Blue

Model No: WP01401001

£6.56

£7.87

Bushing ring WP02005016 Spare Part Image

WP02005016

Bushing ring

Name: Bushing ring

Model No: WP02005016

£0.71

£0.85

Stator WP02202100 Spare Part Image

WP02202100

Stator

Name: Stator

Model No: WP02202100

£48.41

£58.09

Rotor WP02301129 Spare Part Image

WP02301129

Rotor

Name: Rotor

Model No: WP02301129

£15.29

£18.35

Motor front cover WP02411006 Spare Part Image

WP02411006

Motor front cover

Name: Motor front cover

Model No: WP02411006

£4.94

£5.93

Aluminum front cover WP02503013 Spare Part Image

WP02503013

Aluminum front cover

Name: Aluminum front cover

Model No: WP02503013

£2.24

£2.69

Aluminum rear cover WP02602004 Spare Part Image

WP02602004

Aluminum rear cover

Name: Aluminum rear cover

Model No: WP02602004

£2.24

£2.69

Rubber clip WP03203012 Spare Part Image

WP03203012

Rubber clip

Name: Rubber clip

Model No: WP03203012

£0.26

£0.31

Guide plate body WP03601010 Spare Part Image

WP03601010

Guide plate body

Name: Guide plate body

Model No: WP03601010

£2.06

£2.47

Guide plate middle cover WP03603002 Spare Part Image

WP03603002

Guide plate middle cover

Name: Guide plate middle cover

Model No: WP03603002

£0.89

£1.07

Wave washer WP03801001 Spare Part Image

WP03801001

Wave washer

Name: Wave washer

Model No: WP03801001

£0.44

£0.53

Adjusting gasket WP03802013 Spare Part Image

WP03802013

Adjusting gasket

Name: Adjusting gasket

Model No: WP03802013

£0.44

£0.53

Adjusting gasket WP03802027 Spare Part Image

WP03802027

Adjusting gasket

Name: Adjusting gasket

Model No: WP03802027

£0.44

£0.53

Adjusting gasket WP03802032 Spare Part Image

WP03802032

Adjusting gasket

Name: Adjusting gasket

Model No: WP03802032

£0.44

£0.53

Flat washer WP03804002 Spare Part Image

WP03804002

Flat washer

Name: Flat washer

Model No: WP03804002

£0.44

£0.53

Nylon safety press line cap WP04101001 Spare Part Image

WP04101001

Nylon safety press line cap

Name: Nylon safety press line cap

Model No: WP04101001

£0.44

£0.53

Nylon safety press line cap WP04101003 Spare Part Image

WP04101003

Nylon safety press line cap

Name: Nylon safety press line cap

Model No: WP04101003

£0.44

£0.53

Plate WP04102006 Spare Part Image

WP04102006

Plate

Name: Plate

Model No: WP04102006

£0.44

£0.53

Ground cover WP04105006 Spare Part Image

WP04105006

Ground cover

Name: Ground cover

Model No: WP04105006

£0.44

£0.53

O-ring, (Ex: 102.10 In: 91.44 Cs: 5.33) WP05101010 Spare Part Image

WP05101010

O-ring, (Ex: 102.10 In: 91.44 Cs: 5.33)

Name: O-ring, (Ex: 102.10 In: 91.44 Cs: 5.33)

Model No: WP05101010

£0.44

£0.53

O-ring, (Ex: 111.23 In: 107.67 Cs: 1.78) WP05101012 Spare Part Image

WP05101012

O-ring, (Ex: 111.23 In: 107.67 Cs: 1.78)

Name: O-ring, (Ex: 111.23 In: 107.67 Cs: 1.78)

Model No: WP05101012

£0.44

£0.53

O-ring WP05101015 Spare Part Image

WP05101015

O-ring

Name: O-ring

Model No: WP05101015

£0.44

£0.53

O-ring WP05101052 Spare Part Image

WP05101052

O-ring

Name: O-ring

Model No: WP05101052

£0.89

£1.07

Seal 12*14*28*4.5 WP05102003 Spare Part Image

WP05102003

Seal 12*14*28*4.5

Name: Seal 12*14*28*4.5

Model No: WP05102003

£0.44

£0.53

Cable sheath WP05201036 Spare Part Image

WP05201036

Cable sheath

Name: Cable sheath

Model No: WP05201036

£0.44

£0.53

Wire sheath WP05202003 Spare Part Image

WP05202003

Wire sheath

Name: Wire sheath

Model No: WP05202003

£0.44

£0.53

Cable grip WP05501001 Spare Part Image

WP05501001

Cable grip

Name: Cable grip

Model No: WP05501001

£0.44

£0.53

Cable buckle WP05602008 Spare Part Image

WP05602008

Cable buckle

Name: Cable buckle

Model No: WP05602008

£0.44

£0.53

Mechanical seal WP06102016 Spare Part Image

WP06102016

Mechanical seal

Name: Mechanical seal

Model No: WP06102016

£2.51

£3.01

Stainless steel housing WP06201017 Spare Part Image

WP06201017

Stainless steel housing

Name: Stainless steel housing

Model No: WP06201017

£9.26

£11.11

Self-tapping screw WP07802018 Spare Part Image

WP07802018

Self-tapping screw

Name: Self-tapping screw

Model No: WP07802018

£0.44

£0.53

Heat shrink tube WP08301001 Spare Part Image

WP08301001

Heat shrink tube

Name: Heat shrink tube

Model No: WP08301001

£0.26

£0.31

16uf capacitor WP08401001 Spare Part Image

WP08401001

16uf capacitor

Name: 16uf capacitor

Model No: WP08401001

£2.96

£3.55

Cable tie WP08501001 Spare Part Image

WP08501001

Cable tie

Name: Cable tie

Model No: WP08501001

£0.44

£0.53

Wire (green/yellow) WP08601010 Spare Part Image

WP08601010

Wire (green/yellow)

Name: Wire (green/yellow)

Model No: WP08601010

£0.44

£0.53

Power cable WP08701001 Spare Part Image

WP08701001

Power cable

Name: Power cable

Model No: WP08701001

£29.69

£35.63

Bolt m6 x 16 WP5781 Spare Part Image

WP5781

Bolt m6 x 16

Name: Bolt m6 x 16

Model No: WP5781

£0.44

£0.53

Screw m4x8 WP818 Spare Part Image

WP818

Screw m4x8

Name: Screw m4x8

Model No: WP818

£0.44

£0.53

Rd Head S/T Screw M4 X 24
 WP845 Spare Part Image

WP845

Rd Head S/T Screw M4 X 24

Name: Rd Head S/T Screw M4 X 24

Model No: WP845

£0.44

£0.53

Self tapping screw st4.2x38 WP845A Spare Part Image

WP845A

Self tapping screw st4.2x38

Name: Self tapping screw st4.2x38

Model No: WP845A

£0.44

£0.53

Self tapping screw st4.2x30 WP845B Spare Part Image

WP845B

Self tapping screw st4.2x30

Name: Self tapping screw st4.2x30

Model No: WP845B

£0.44

£0.53

Self tapping screw st4.2 x 55 WP845C Spare Part Image

WP845C

Self tapping screw st4.2 x 55

Name: Self tapping screw st4.2 x 55

Model No: WP845C

£0.44

£0.53

Washer WP86124 Spare Part Image

WP86124

Washer

Name: Washer

Model No: WP86124

£0.44

£0.53

Shaft checking ring WP8941 Spare Part Image

WP8941

Shaft checking ring

Name: Shaft checking ring

Model No: WP8941

£0.49

£0.59

Spring washer WP934 Spare Part Image

WP934

Spring washer

Name: Spring washer

Model No: WP934

£0.44

£0.53

Spring washer WP936 Spare Part Image

WP936

Spring washer

Name: Spring washer

Model No: WP936

£0.44

£0.53

  • Manufactured from corrosion resistant materials with stainless steel body and motor case.
  • Max. Output: 92L(20gal)/min.
  • Massive maximum head of 40m makes this unit ideal for wells.
  • Fitted with automatic cut-out.
  • Designed for clean water although these pumps will accept small particles up to 0.5mm.
  • Suitable for the effective drainage of cellars, sinks, cisterns, baths and the general transfer of water.

Cut-Out:

Automatic

Maximum Head:

40m

Maximum Particle Size:

0.5mm

Maximum Water Depth:

7m

Minimum Water Depth:

32mm

Motor Power:

1000W

Nett Weight:

8.77kg

Outlet OD:

Ø32mm

Supply:

230V
