Professional SP Gravity Feed Spray Gun 1.4mm Set-Up
Model No. SP01
|
|
|||||||||||||||
|
|
|||||||||||||||
- GRAVITY SPEED - Spray gun using standard pressure which creates a flat and smooth fan pattern ideal to get the best clear finishing coats.
- MVMP TECHNOLOGY - Precision engineering delivers consistent and unrivalled results. Greater efficiency than HVLP and less material wastage than conventional spray guns.

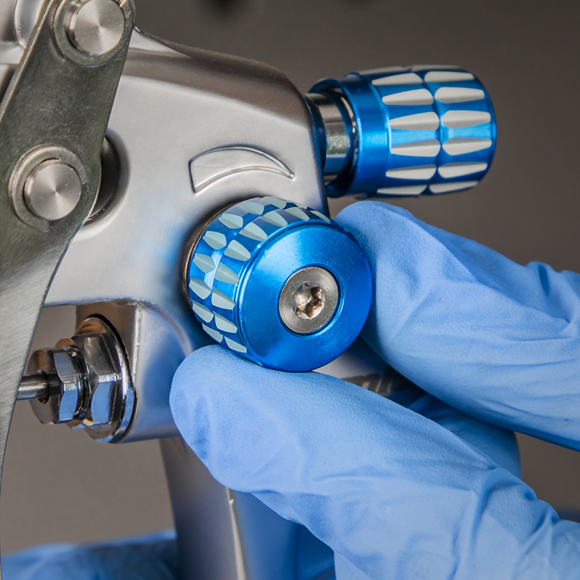

- FEATURES - Air and paint flow controls for fine adjustment of spray pattern with a pot capacity of 600ml.
- SUITABILITY - Stainless steel fluid passages, needle, nozzle, air cap and air valve suitable for solvent and water based paints.
- 3 YEAR GUARANTEE*.
Air Consumption:
10.6CFM
Available Set-Up(s):
1.2, 1.3, 1.7, 1.8mm
Nett Weight:
0.7kg
Pot Capacity:
600ml
Recommended Air Pressure:
30-43psi
Standard Set-Up:
1.4mm
Model No.
Description
List Price (Exc. VAT)
List Price (Inc. VAT)
SP01.01
Gun Body
Name: Gun Body
Model No: SP01.01
£33.49
£40.19
SP01.02
Needle Packing Spring
Name: Needle Packing Spring
Model No: SP01.02
£0.49
£0.59
SP01.03
Needle Packing Washer
Name: Needle Packing Washer
Model No: SP01.03
£0.49
£0.59
SP01.04
Needle Packing Gasket
Name: Needle Packing Gasket
Model No: SP01.04
£0.79
£0.95
SP01.05
Needle Packing Screw
Name: Needle Packing Screw
Model No: SP01.05
£1.29
£1.55
SP01.06
Air Baffle
Name: Air Baffle
Model No: SP01.06
£1.29
£1.55
SP01.07
Washer for Fluid Nozzle Seat
Name: Washer for Fluid Nozzle Seat
Model No: SP01.07
£0.49
£0.59
SP01.08
Fluid Nozzle Seat
Name: Fluid Nozzle Seat
Model No: SP01.08
£8.99
£10.79
SP01.09
Fluid Nozzle 1.4mm
Name: Fluid Nozzle 1.4mm
Model No: SP01.09
£22.49
£26.99
SP01.09A
Fluid Nozzle 1.2mm
Name: Fluid Nozzle 1.2mm
Model No: SP01.09A
£22.49
£26.99
SP01.09B
Fluid Nozzle 1.3mm
Name: Fluid Nozzle 1.3mm
Model No: SP01.09B
£22.49
£26.99
SP01.09C
Fluid Nozzle 1.7mm
Name: Fluid Nozzle 1.7mm
Model No: SP01.09C
£22.49
£26.99
SP01.09D
Fluid Nozzle 1.8mm
Name: Fluid Nozzle 1.8mm
Model No: SP01.09D
£22.49
£26.99
SP01.10
Air Cap 1.4mm
Name: Air Cap 1.4mm
Model No: SP01.10
£14.99
£17.99
SP01.10A
Air Cap 1.2mm
Name: Air Cap 1.2mm
Model No: SP01.10A
£14.99
£17.99
SP01.10B
Air Cap 1.3mm
Name: Air Cap 1.3mm
Model No: SP01.10B
£14.99
£17.99
SP01.10C
Air Cap 1.7mm
Name: Air Cap 1.7mm
Model No: SP01.10C
£14.99
£17.99
SP01.10D
Air Cap 1.8mm
Name: Air Cap 1.8mm
Model No: SP01.10D
£14.99
£17.99
SP01.11
Washer for Air Cap
Name: Washer for Air Cap
Model No: SP01.11
£8.99
£10.79
SP01.12
Locking Ring
Name: Locking Ring
Model No: SP01.12
£4.79
£5.75
SP01.13
Retainer
Name: Retainer
Model No: SP01.13
£0.49
£0.59
SP01.14-19
Air Valve Assembly
Name: Air Valve Assembly
Model No: SP01.14-19
£10.29
£12.35
SP01.20-23
Air Adjustment Assembly
Name: Air Adjustment Assembly
Model No: SP01.20-23
£10.29
£12.35
SP01.24
Air Adaptor
Name: Air Adaptor
Model No: SP01.24
£2.29
£2.75
SP01.25
Washer for Trigger Pin
Name: Washer for Trigger Pin
Model No: SP01.25
£0.49
£0.59
SP01.26
Trigger
Name: Trigger
Model No: SP01.26
£6.79
£8.15
SP01.27
Trigger Pin
Name: Trigger Pin
Model No: SP01.27
£1.79
£2.15
SP01.28
Hinge Pin
Name: Hinge Pin
Model No: SP01.28
£1.79
£2.15
SP01.29
Washer (Square)
Name: Washer (Square)
Model No: SP01.29
£0.49
£0.59
SP01.30
Gasket
Name: Gasket
Model No: SP01.30
£0.79
£0.95
SP01.31-34
Spray Pattern Adjustment Assembly
Name: Spray Pattern Adjustment Assembly
Model No: SP01.31-34
£8.99
£10.79
SP01.35
Knob, Spray Pattern Adjustment Knurled Blue Aluminium, OD: 2
Name: Knob, Spray Pattern Adjustment Knurled Blue Aluminium, OD: 2
Model No: SP01.35
£3.29
£3.95
SP01.36
Spray Pattern Adjustment Knob Screw
Name: Spray Pattern Adjustment Knob Screw
Model No: SP01.36
£0.79
£0.95
SP01.37
Needle Adjustment Adaptor
Name: Needle Adjustment Adaptor
Model No: SP01.37
£3.49
£4.19
SP01.38
Fluid Needle 1.4mm
Name: Fluid Needle 1.4mm
Model No: SP01.38
£11.29
£13.55
SP01.38A
Fluid Needle 1.2mm
Name: Fluid Needle 1.2mm
Model No: SP01.38A
£11.29
£13.55
SP01.38B
Fluid Needle 1.3mm
Name: Fluid Needle 1.3mm
Model No: SP01.38B
£11.29
£13.55
SP01.38C
Fluid Needle 1.7mm
Name: Fluid Needle 1.7mm
Model No: SP01.38C
£11.29
£13.55
SP01.38D
Fluid Needle 1.8mm
Name: Fluid Needle 1.8mm
Model No: SP01.38D
£11.29
£13.55
SP01.39
Needle Adjustment Spring
Name: Needle Adjustment Spring
Model No: SP01.39
£2.29
£2.75
SP01.40
Spring Plug
Name: Spring Plug
Model No: SP01.40
£1.29
£1.55
SP01.41
Knob, Needle Adjustment, Knurled Blue Aluminium, OD: 16mm,
Name: Knob, Needle Adjustment, Knurled Blue Aluminium, OD: 16mm,
Model No: SP01.41
£3.79
£4.55
SP01.42
Fluid Pot Adaptor
Name: Fluid Pot Adaptor
Model No: SP01.42
£4.79
£5.75
SP01.43
Fluid Pot Filter
Name: Fluid Pot Filter
Model No: SP01.43
£0.79
£0.95
SP01.44-49
Fluid Pot Assembly (inc 44,45,46,47,48,49)
Name: Fluid Pot Assembly (inc 44,45,46,47,48,49)
Model No: SP01.44-49
£20.99
£25.19
SP01.50
Multi-Purpose Spanner
Name: Multi-Purpose Spanner
Model No: SP01.50
£11.29
£13.55
SP01.52
Brush (A)
Name: Brush (A)
Model No: SP01.52
£2.29
£2.75
- GRAVITY SPEED - Spray gun using standard pressure which creates a flat and smooth fan pattern ideal to get the best clear finishing coats.
- MVMP TECHNOLOGY - Precision engineering delivers consistent and unrivalled results. Greater efficiency than HVLP and less material wastage than conventional spray guns.
- FEATURES - Air and paint flow controls for fine adjustment of spray pattern with a pot capacity of 600ml.
- SUITABILITY - Stainless steel fluid passages, needle, nozzle, air cap and air valve suitable for solvent and water based paints.
- 3 YEAR GUARANTEE*.
Air Consumption:
10.6CFM
Available Set-Up(s):
1.2, 1.3, 1.7, 1.8mm
Nett Weight:
0.7kg
Pot Capacity:
600ml
Recommended Air Pressure:
30-43psi
Standard Set-Up:
1.4mm
