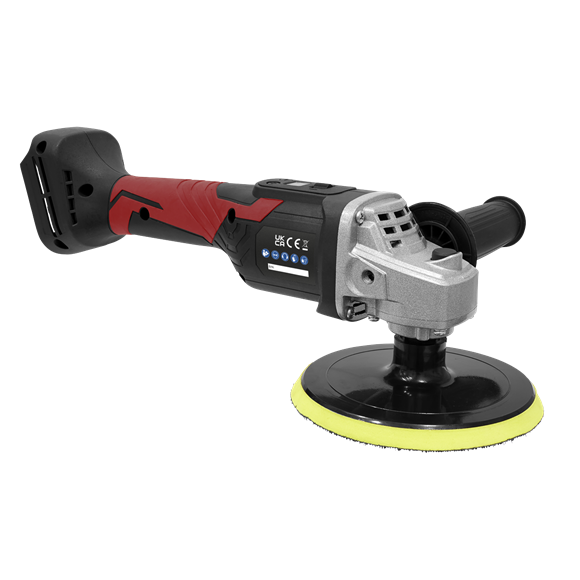

SV20 Series 150mm Cordless Rotary Polisher 20V - Body Only

Model No. CP20VRP

List Price

EX VAT INC VAT

Buy Online

List Price

EX VAT INC VAT

Part of the SV20 Series designed for the professional, offering heavy-duty, high performance, durable tools with lightweight composite designs for superior control and comfort.

Digital display and variable speed control from 500-3000rpm.

Features a slide-button on/off switch allowing for a smooth comfortable main handle grip.

Spindle lock for fast and easy pad changes.

Double injection composite housing with rubber grip for added comfort.

Supplied with Ø150mm backing pad and side handle.

Requires compatible 20V battery and mains charger, sold separately.

3 Year guarantee*.

Battery:

20V 2Ah - 6Ah Lithium-ion (not included)

Consumable Parts:

PTC/150VA/M14 - DA Backing Pad for Hook-and-Loop Discs Ø148mm M14 x 2mm, CP20VBP2 - 2Ah Battery, CP20VBP4 - 4Ah Battery, CP20VBP6 - 6Ah Battery

Nett Weight:

1.3kg

No-Load Speed:

500-3000rpm

Pad Size:

Ø150mm

Replacement Parts:

CP20VMC - Mains Charger (not included)

Thread Size:

M14 x 2mm

Instructions

Declaration of Conformity

Parts Diagram

Model No.

Description

List Price (Exc. VAT)

List Price (Inc. VAT)

B/608-RS

Bearing 608-rs (so)

Name: Bearing 608-rs (so)

Model No: B/608-RS

£8.81

£10.57

B/6201-2RS

Bearing 6201-2rs

Name: Bearing 6201-2rs

Model No: B/6201-2RS

£10.29

£12.35

B/696ZZ

Bearing 696zz

Name: Bearing 696zz

Model No: B/696ZZ

£6.29

£7.55

CP20VOP.19

Shaft Circlip 12mm

Name: Shaft Circlip 12mm

Model No: CP20VOP.19

£0.49

£0.59

CP20VOP.24

Gear Case

Name: Gear Case

Model No: CP20VOP.24

£8.29

£9.95

CP20VOP.25

Self-Lock Button Pin

Name: Self-Lock Button Pin

Model No: CP20VOP.25

£0.49

£0.59

CP20VOP.26

Self-Lock Button Spring

Name: Self-Lock Button Spring

Model No: CP20VOP.26

£0.49

£0.59

CP20VOP.27

Self-Lock Button

Name: Self-Lock Button

Model No: CP20VOP.27

£2.49

£2.99

CP20VOP.32

Switch Button

Name: Switch Button

Model No: CP20VOP.32

£0.49

£0.59

CP20VOP.33

PCB Transparent Cover

Name: PCB Transparent Cover

Model No: CP20VOP.33

£0.49

£0.59

CP20VOP.34

PCB

Name: PCB

Model No: CP20VOP.34

£0.79

£0.95

CP20VOP.35

Switch Button '+'

Name: Switch Button '+'

Model No: CP20VOP.35

£0.49

£0.59

CP20VOP.36

Switch Button '-'

Name: Switch Button '-'

Model No: CP20VOP.36

£0.49

£0.59

CP20VOP.37

Battery Connection Plate

Name: Battery Connection Plate

Model No: CP20VOP.37

£2.99

£3.59

CP20VOP.38

Resistor

Name: Resistor

Model No: CP20VOP.38

£0.49

£0.59

CP20VOP.39

Housing, Right Side

Name: Housing, Right Side

Model No: CP20VOP.39

£8.49

£10.19

CP20VOP.40

Housing, Right Side (Lower)

Name: Housing, Right Side (Lower)

Model No: CP20VOP.40

£12.29

£14.75

CP20VOP.41

Housing, Left Side

Name: Housing, Left Side

Model No: CP20VOP.41

£8.49

£10.19

CP20VOP.42

Housing, Left Side (Lower)

Name: Housing, Left Side (Lower)

Model No: CP20VOP.42

£2.49

£2.99

CP20VRP.01

Output Shaft

Name: Output Shaft

Model No: CP20VRP.01

£5.49

£6.59

CP20VRP.02

Woodruff Key (3x3.5x10)

Name: Woodruff Key (3x3.5x10)

Model No: CP20VRP.02

£0.49

£0.59

CP20VRP.04

Front Cover

Name: Front Cover

Model No: CP20VRP.04

£4.79

£5.75

CP20VRP.07

Gear (Large)

Name: Gear (Large)

Model No: CP20VRP.07

£14.99

£17.99

CP20VRP.15

Shaft retaining ring

Name: Shaft retaining ring

Model No: CP20VRP.15

£0.49

£0.59

CP20VRP.17

Middle Cover

Name: Middle Cover

Model No: CP20VRP.17

£3.79

£4.55

CP20VRP.18

Rotor

Name: Rotor

Model No: CP20VRP.18

£43.99

£52.79

CP20VRP.19

Stator

Name: Stator

Model No: CP20VRP.19

£71.29

£85.55

CP20VRP.32

Backing Pad (Velcro)

Name: Backing Pad (Velcro)

Model No: CP20VRP.32

£7.49

£8.99

CP20VRP.34

Side Handle (M8 x 1.25mm)

Name: Side Handle (M8 x 1.25mm)

Model No: CP20VRP.34

£3.29

£3.95

CP20VRP.35

Label (for Right Side Housing)

Name: Label (for Right Side Housing)

Model No: CP20VRP.35

£0.79

£0.95

CP20VRP.37

Label (for Left Side Housing)

Name: Label (for Left Side Housing)

Model No: CP20VRP.37

£0.79

£0.95

DAS150T.V3-36

Rd Head S/T Screw M4 X 12 Black

Name: Rd Head S/T Screw M4 X 12 Black

Model No: DAS150T.V3-36

£1.79

£2.15

ER1700P.V2-49

Rd Head S/T Screw M3 X 8 Black

Name: Rd Head S/T Screw M3 X 8 Black

Model No: ER1700P.V2-49

£0.44

£0.53

ER1700P.V2-53

Rd Head S/T Screw M4 X 16 Black

Name: Rd Head S/T Screw M4 X 16 Black

Model No: ER1700P.V2-53

£0.44

£0.53

SFS414.S

Hex Head Flange Bolt M4 X 14 Zinc

Name: Hex Head Flange Bolt M4 X 14 Zinc

Model No: SFS414.S

£0.99

£1.19
