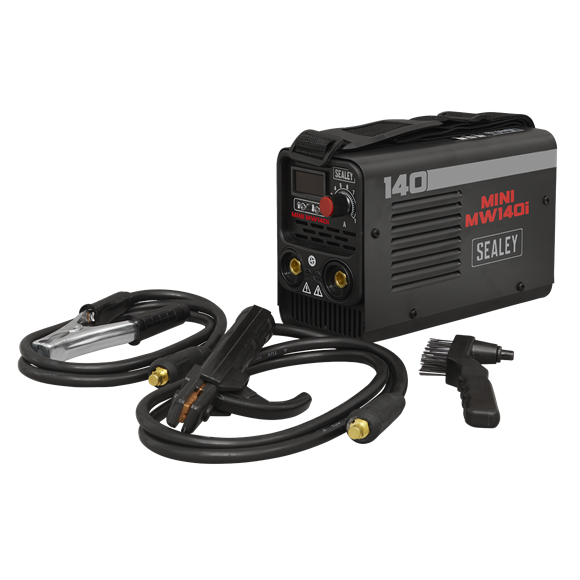

140A MMA Inverter Welder

Model No. MINIMW140i
List Price
Buy Online
Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail
List Price

  • Ultra-compact and lightweight unit weighing just 4kg approx.
  • Portability allows the welder to be taken to the job at hand, ideal for mobile technicians.
  • Unit can ARC/MMA weld a variety of rods including rutile, basic and stainless from Ø1.6mm up to Ø3.2mm.
  • Features LED display, with thermal cut-out protection, anti-stick, arc force and hot start functions.
  • Supplied with 1.6m 16mm² cable with electrode holder and a 1.4m 16mm² earth clamp and cable, both with 10-25 dinse connectors.
  • Forced air cooling system.

Nett Weight:

3.9Kg

Welding Current:

20-140A

Duty Cycle:

100% @ 108A, 60% @ 140A

Electrode Capacity:

Ø1.6-3.2mm

Absorbed Power:

4.2kW

Supply:

230V-16A* *Note: To achieve maximum power a 16A supply may be required.

Protection:

IP21S

Weight:

3.9Kg

Model No.

Description

List Price (Exc. VAT)

List Price (Inc. VAT)

Output Connector (MINIMW140I Only) MINIMW140I-09 Spare Part Image

MINIMW140I-09

Output Connector (MINIMW140I Only)

Name: Output Connector (MINIMW140I Only)

Model No: MINIMW140I-09

£3.49

£4.19

Complete PCB (MINIMW140I Only) MINIMW140I-30 Spare Part Image

MINIMW140I-30

Complete PCB (MINIMW140I Only)

Name: Complete PCB (MINIMW140I Only)

Model No: MINIMW140I-30

£107.29

£128.75

Bottom Panel MINIMW160I-01 Spare Part Image

MINIMW160I-01

Bottom Panel

Name: Bottom Panel

Model No: MINIMW160I-01

£5.79

£6.95

Front Panel MINIMW160I-02 Spare Part Image

MINIMW160I-02

Front Panel

Name: Front Panel

Model No: MINIMW160I-02

£4.49

£5.39

Plastic Frame MINIMW160I-03 Spare Part Image

MINIMW160I-03

Plastic Frame

Name: Plastic Frame

Model No: MINIMW160I-03

£7.29

£8.75

Quick EU Socket MINIMW160I-04 Spare Part Image

MINIMW160I-04

Quick EU Socket

Name: Quick EU Socket

Model No: MINIMW160I-04

£6.99

£8.39

Indicator Light (Green/Red) MINIMW160I-05 Spare Part Image

MINIMW160I-05

Indicator Light (Green/Red)

Name: Indicator Light (Green/Red)

Model No: MINIMW160I-05

£0.49

£0.59

Potentiometer Knob MINIMW160I-06 Spare Part Image

MINIMW160I-06

Potentiometer Knob

Name: Potentiometer Knob

Model No: MINIMW160I-06

£0.49

£0.59

Potentiometer MINIMW160I-07 Spare Part Image

MINIMW160I-07

Potentiometer

Name: Potentiometer

Model No: MINIMW160I-07

£1.79

£2.15

Digital Display MINIMW160I-08 Spare Part Image

MINIMW160I-08

Digital Display

Name: Digital Display

Model No: MINIMW160I-08

£6.29

£7.55

Fan Guard MINIMW160I-22 Spare Part Image

MINIMW160I-22

Fan Guard

Name: Fan Guard

Model No: MINIMW160I-22

£0.79

£0.95

Belt MINIMW160I-23 Spare Part Image

MINIMW160I-23

Belt

Name: Belt

Model No: MINIMW160I-23

£2.29

£2.75

Top Cover MINIMW160I-24 Spare Part Image

MINIMW160I-24

Top Cover

Name: Top Cover

Model No: MINIMW160I-24

£8.99

£10.79

Fan MINIMW160I-25 Spare Part Image

MINIMW160I-25

Fan

Name: Fan

Model No: MINIMW160I-25

£4.99

£5.99

Power Switch 16A MINIMW160I-26 Spare Part Image

MINIMW160I-26

Power Switch 16A

Name: Power Switch 16A

Model No: MINIMW160I-26

£2.79

£3.35

Fan Cover MINIMW160I-27 Spare Part Image

MINIMW160I-27

Fan Cover

Name: Fan Cover

Model No: MINIMW160I-27

£0.99

£1.19

Rear Panel MINIMW160I-28 Spare Part Image

MINIMW160I-28

Rear Panel

Name: Rear Panel

Model No: MINIMW160I-28

£4.49

£5.39

Power Cable (MINIMW140I & MINIMW160I Only) MINIMW160I-29 Spare Part Image

MINIMW160I-29

Power Cable (MINIMW140I & MINIMW160I Only)

Name: Power Cable (MINIMW140I & MINIMW160I Only)

Model No: MINIMW160I-29

£17.79

£21.35

  • Ultra-compact and lightweight unit weighing just 4kg approx.
  • Portability allows the welder to be taken to the job at hand, ideal for mobile technicians.
  • Unit can ARC/MMA weld a variety of rods including rutile, basic and stainless from Ø1.6mm up to Ø3.2mm.
  • Features LED display, with thermal cut-out protection, anti-stick, arc force and hot start functions.
  • Supplied with 1.6m 16mm² cable with electrode holder and a 1.4m 16mm² earth clamp and cable, both with 10-25 dinse connectors.
  • Forced air cooling system.

Nett Weight:

3.9Kg

Welding Current:

20-140A

Duty Cycle:

100% @ 108A, 60% @ 140A

Electrode Capacity:

Ø1.6-3.2mm

Absorbed Power:

4.2kW

Supply:

230V-16A* *Note: To achieve maximum power a 16A supply may be required.

Protection:

IP21S

Weight:

3.9Kg
