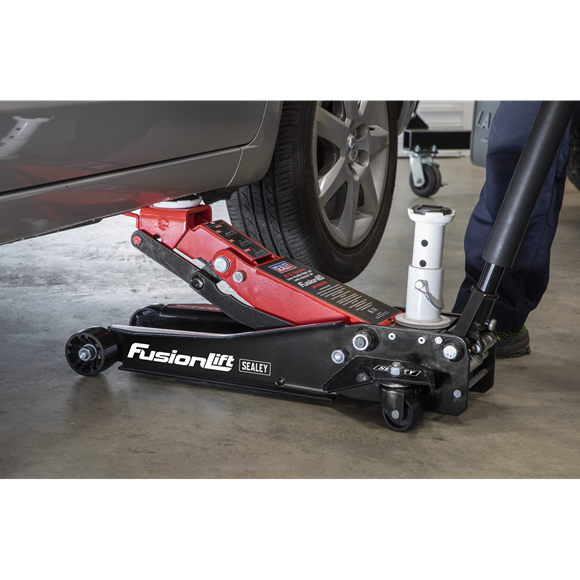

Low Profile High Lift Trolley Jack with Rocket Lift 2 & 3 Tonne

Model No. 3200LEHL
List Price
Buy Online
Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail Image Thumbnail
List Price

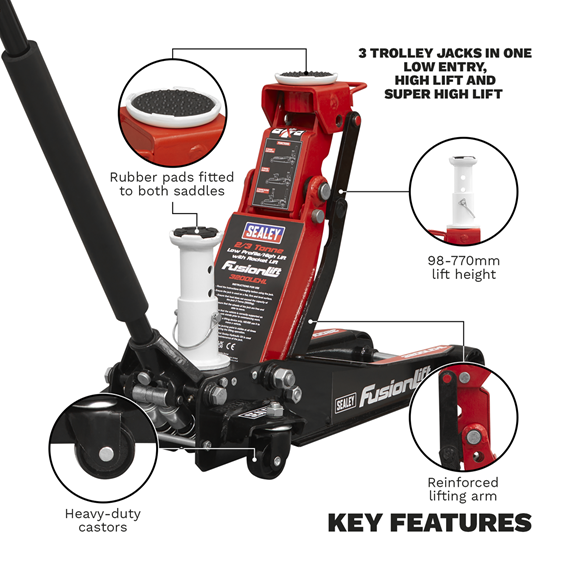

  • A "FUSION" OF 3 TROLLEY JACKS IN ONE – Has a lifting span which is quickly and easily adjusted, giving the advantages of low entry, high lift and super high lift trolley jack all in one.
  • IMPRESSIVE LIFTING RANGE – From a minimum saddle height of just 98mm for low chassis vehicles, to a maximum saddle height of 770mm suitable for SUVs and for extreme off-road vehicles.
  • REINFORCED LIFTING ARM – And solid u-channel side plates keeps lift strong and secure.
  • ROCKET LIFT – Cast iron pump with twin pistons bring the lifting arm into contact with the jacking point in minimal pumps.
  • LONG 2-PIECE HANDLE - To reduce operator effort, supplied with foam bumper to protect bodywork.
  • RUBBER PADS - fitted to both saddles to prevent damage to the underside of the vehicle's jacking point.
  • HEAVY-DUTY CASTORS AND LARGE SADDLE DESIGN – 360° rear castors, to ease positioning under vehicle.

Capacity:

Low Profile 2 Tonne/High Lift 3 Tonne

Length:

805mm

Maximum Chassis Height:

153mm

Maximum Saddle Height:

770mm

Minimum Saddle Height:

98mm

Nett Weight:

44.5kg

Model No.

Description

List Price (Exc. VAT)

List Price (Inc. VAT)

Hydraulic Unit Assembly 3200LEHL-01 Spare Part Image

3200LEHL-01

Hydraulic Unit Assembly

Name: Hydraulic Unit Assembly

Model No: 3200LEHL-01

£185.79

£222.95

Release Valve Assembly 3200LEHL-02 Spare Part Image

3200LEHL-02

Release Valve Assembly

Name: Release Valve Assembly

Model No: 3200LEHL-02

£8.99

£10.79

Oil Filler Plug 3200LEHL-04 Spare Part Image

3200LEHL-04

Oil Filler Plug

Name: Oil Filler Plug

Model No: 3200LEHL-04

£0.49

£0.59

Return Spring 3200LEHL-05 Spare Part Image

3200LEHL-05

Return Spring

Name: Return Spring

Model No: 3200LEHL-05

£2.79

£3.35

Split Pin Ø4 x 45mm 3200LEHL-06 Spare Part Image

3200LEHL-06

Split Pin Ø4 x 45mm

Name: Split Pin Ø4 x 45mm

Model No: 3200LEHL-06

£0.49

£0.59

Connecting Rod 3200LEHL-07 Spare Part Image

3200LEHL-07

Connecting Rod

Name: Connecting Rod

Model No: 3200LEHL-07

£5.79

£6.95

External Circlip Ø25mm 3200LEHL-08 Spare Part Image

3200LEHL-08

External Circlip Ø25mm

Name: External Circlip Ø25mm

Model No: 3200LEHL-08

£0.49

£0.59

Reinforced Lifting Arm Assembly 3200LEHL-09 Spare Part Image

3200LEHL-09

Reinforced Lifting Arm Assembly

Name: Reinforced Lifting Arm Assembly

Model No: 3200LEHL-09

£88.49

£106.19

Saddle Pad for 3200LEHL 3200LEHL-10 Spare Part Image

3200LEHL-10

Saddle Pad for 3200LEHL

Name: Saddle Pad for 3200LEHL

Model No: 3200LEHL-10

£8.29

£9.95

Saddle 3200LEHL-11 Spare Part Image

3200LEHL-11

Saddle

Name: Saddle

Model No: 3200LEHL-11

£11.29

£13.55

External Circlip Ø16mm 3200LEHL-12 Spare Part Image

3200LEHL-12

External Circlip Ø16mm

Name: External Circlip Ø16mm

Model No: 3200LEHL-12

£0.49

£0.59

Handle Socket Bolt 3200LEHL-13 Spare Part Image

3200LEHL-13

Handle Socket Bolt

Name: Handle Socket Bolt

Model No: 3200LEHL-13

£5.79

£6.95

Frame Rod Pin 3200LEHL-14 Spare Part Image

3200LEHL-14

Frame Rod Pin

Name: Frame Rod Pin

Model No: 3200LEHL-14

£8.29

£9.95

Side Frame, Right 3200LEHL-15 Spare Part Image

3200LEHL-15

Side Frame, Right

Name: Side Frame, Right

Model No: 3200LEHL-15

£29.79

£35.75

Front Wheel Shaft 3200LEHL-16 Spare Part Image

3200LEHL-16

Front Wheel Shaft

Name: Front Wheel Shaft

Model No: 3200LEHL-16

£9.49

£11.39

Side Frame, Left 3200LEHL-17 Spare Part Image

3200LEHL-17

Side Frame, Left

Name: Side Frame, Left

Model No: 3200LEHL-17

£29.79

£35.75

Wheel, Heavy-Duty Front Fixed, Black Coated Steel (D: 85 W: 3200LEHL-18 Spare Part Image

3200LEHL-18

Wheel, Heavy-Duty Front Fixed, Black Coated Steel (D: 85 W:

Name: Wheel, Heavy-Duty Front Fixed, Black Coated Steel (D: 85 W:

Model No: 3200LEHL-18

£19.29

£23.15

Front Wheel Bushing 3200LEHL-19 Spare Part Image

3200LEHL-19

Front Wheel Bushing

Name: Front Wheel Bushing

Model No: 3200LEHL-19

£3.49

£4.19

Washer M16 (Thin) 3200LEHL-21 Spare Part Image

3200LEHL-21

Washer M16 (Thin)

Name: Washer M16 (Thin)

Model No: 3200LEHL-21

£0.49

£0.59

Support Shaft (Centre) 3200LEHL-24 Spare Part Image

3200LEHL-24

Support Shaft (Centre)

Name: Support Shaft (Centre)

Model No: 3200LEHL-24

£8.99

£10.79

Rear Castor Assembly (Heavy-Duty) 3200LEHL-27 Spare Part Image

3200LEHL-27

Rear Castor Assembly (Heavy-Duty)

Name: Rear Castor Assembly (Heavy-Duty)

Model No: 3200LEHL-27

£29.79

£35.75

Rear Shaft 3200LEHL-30 Spare Part Image

3200LEHL-30

Rear Shaft

Name: Rear Shaft

Model No: 3200LEHL-30

£4.49

£5.39

Positioning Shaft 3200LEHL-31 Spare Part Image

3200LEHL-31

Positioning Shaft

Name: Positioning Shaft

Model No: 3200LEHL-31

£6.29

£7.55

Rubber Sleeve for Positioning Shaft 3200LEHL-32 Spare Part Image

3200LEHL-32

Rubber Sleeve for Positioning Shaft

Name: Rubber Sleeve for Positioning Shaft

Model No: 3200LEHL-32

£3.49

£4.19

Shoulder Bolt M18x54mm 3200LEHL-37 Spare Part Image

3200LEHL-37

Shoulder Bolt M18x54mm

Name: Shoulder Bolt M18x54mm

Model No: 3200LEHL-37

£0.79

£0.95

Handle Socket 3200LEHL-38 Spare Part Image

3200LEHL-38

Handle Socket

Name: Handle Socket

Model No: 3200LEHL-38

£26.49

£31.79

Handle Socket Bolt M10x19mm 3200LEHL-39 Spare Part Image

3200LEHL-39

Handle Socket Bolt M10x19mm

Name: Handle Socket Bolt M10x19mm

Model No: 3200LEHL-39

£0.79

£0.95

External Circlip Ø12mm 3200LEHL-40 Spare Part Image

3200LEHL-40

External Circlip Ø12mm

Name: External Circlip Ø12mm

Model No: 3200LEHL-40

£0.49

£0.59

Handle Socket Roller 3200LEHL-41 Spare Part Image

3200LEHL-41

Handle Socket Roller

Name: Handle Socket Roller

Model No: 3200LEHL-41

£6.79

£8.15

Handle Socket Pin 3200LEHL-42 Spare Part Image

3200LEHL-42

Handle Socket Pin

Name: Handle Socket Pin

Model No: 3200LEHL-42

£6.79

£8.15

Cover Plate 3200LEHL-43 Spare Part Image

3200LEHL-43

Cover Plate

Name: Cover Plate

Model No: 3200LEHL-43

£5.79

£6.95

Rubber Plug for Cover Plate 3200LEHL-44 Spare Part Image

3200LEHL-44

Rubber Plug for Cover Plate

Name: Rubber Plug for Cover Plate

Model No: 3200LEHL-44

£0.49

£0.59

Handle Assembly 3200LEHL-45 Spare Part Image

3200LEHL-45

Handle Assembly

Name: Handle Assembly

Model No: 3200LEHL-45

£11.79

£14.15

Handle Lock Button 3200LEHL-46 Spare Part Image

3200LEHL-46

Handle Lock Button

Name: Handle Lock Button

Model No: 3200LEHL-46

£0.49

£0.59

Handle Protection Foam 3200LEHL-47 Spare Part Image

3200LEHL-47

Handle Protection Foam

Name: Handle Protection Foam

Model No: 3200LEHL-47

£5.79

£6.95

Height Adjust Saddle Assembly 3200LEHL-48 Spare Part Image

3200LEHL-48

Height Adjust Saddle Assembly

Name: Height Adjust Saddle Assembly

Model No: 3200LEHL-48

£19.99

£23.99

Saddle Pad (for Height Adjust Saddle) 3200LEHL-49 Spare Part Image

3200LEHL-49

Saddle Pad (for Height Adjust Saddle)

Name: Saddle Pad (for Height Adjust Saddle)

Model No: 3200LEHL-49

£5.79

£6.95

Grease Nipple 3200LEHL-50 Spare Part Image

3200LEHL-50

Grease Nipple

Name: Grease Nipple

Model No: 3200LEHL-50

£2.79

£3.35

Handle Grip 3200LEHL-51 Spare Part Image

3200LEHL-51

Handle Grip

Name: Handle Grip

Model No: 3200LEHL-51

£2.79

£3.35

Repair Kit for 3200LEHL 3200LEHL-RK Spare Part Image

3200LEHL-RK

Repair Kit for 3200LEHL

Name: Repair Kit for 3200LEHL

Model No: 3200LEHL-RK

£12.79

£15.35

Flat Washer M16 Zinc FWM16.S Spare Part Image

FWM16.S

Flat Washer M16 Zinc

Name: Flat Washer M16 Zinc

Model No: FWM16.S

£0.99

£1.19

Flat Washer M18 Zinc FWM18.S Spare Part Image

FWM18.S

Flat Washer M18 Zinc

Name: Flat Washer M18 Zinc

Model No: FWM18.S

£0.99

£1.19

Machine Screw Pan Head Phillips M8 x 16mm MSP816.S Spare Part Image

MSP816.S

Machine Screw Pan Head Phillips M8 x 16mm

Name: Machine Screw Pan Head Phillips M8 x 16mm

Model No: MSP816.S

£0.79

£0.95

Nyloc Nut M16 Zinc NLN16.S Spare Part Image

NLN16.S

Nyloc Nut M16 Zinc

Name: Nyloc Nut M16 Zinc

Model No: NLN16.S

£1.09

£1.31

Nyloc Nut M20 Zinc NLN20.S Spare Part Image

NLN20.S

Nyloc Nut M20 Zinc

Name: Nyloc Nut M20 Zinc

Model No: NLN20.S

£1.29

£1.55

Steel Ball 6.0mm SB-6.0 Spare Part Image

SB-6.0

Steel Ball 6.0mm

Name: Steel Ball 6.0mm

Model No: SB-6.0

£0.79

£0.95

Socket Cap Bolt M12 x 25mm SCB1225.S Spare Part Image

SCB1225.S

Socket Cap Bolt M12 x 25mm

Name: Socket Cap Bolt M12 x 25mm

Model No: SCB1225.S

£0.99

£1.19

Spring Washer M12 Zinc SWM12.S Spare Part Image

SWM12.S

Spring Washer M12 Zinc

Name: Spring Washer M12 Zinc

Model No: SWM12.S

£0.99

£1.19

Spring Washer M16 Zinc SWM16.S Spare Part Image

SWM16.S

Spring Washer M16 Zinc

Name: Spring Washer M16 Zinc

Model No: SWM16.S

£0.99

£1.19

Spring Washer M18 Zinc SWM18.S Spare Part Image

SWM18.S

Spring Washer M18 Zinc

Name: Spring Washer M18 Zinc

Model No: SWM18.S

£0.99

£1.19

Spring Washer M20 Zinc SWM20.S Spare Part Image

SWM20.S

Spring Washer M20 Zinc

Name: Spring Washer M20 Zinc

Model No: SWM20.S

£0.99

£1.19

Spring Washer M8 Zinc SWM8.S Spare Part Image

SWM8.S

Spring Washer M8 Zinc

Name: Spring Washer M8 Zinc

Model No: SWM8.S

£0.49

£0.59

  • A "FUSION" OF 3 TROLLEY JACKS IN ONE – Has a lifting span which is quickly and easily adjusted, giving the advantages of low entry, high lift and super high lift trolley jack all in one.
  • IMPRESSIVE LIFTING RANGE – From a minimum saddle height of just 98mm for low chassis vehicles, to a maximum saddle height of 770mm suitable for SUVs and for extreme off-road vehicles.
  • REINFORCED LIFTING ARM – And solid u-channel side plates keeps lift strong and secure.
  • ROCKET LIFT – Cast iron pump with twin pistons bring the lifting arm into contact with the jacking point in minimal pumps.
  • LONG 2-PIECE HANDLE - To reduce operator effort, supplied with foam bumper to protect bodywork.
  • RUBBER PADS - fitted to both saddles to prevent damage to the underside of the vehicle's jacking point.
  • HEAVY-DUTY CASTORS AND LARGE SADDLE DESIGN – 360° rear castors, to ease positioning under vehicle.

Capacity:

Low Profile 2 Tonne/High Lift 3 Tonne

Length:

805mm

Maximum Chassis Height:

153mm

Maximum Saddle Height:

770mm

Minimum Saddle Height:

98mm

Nett Weight:

44.5kg
