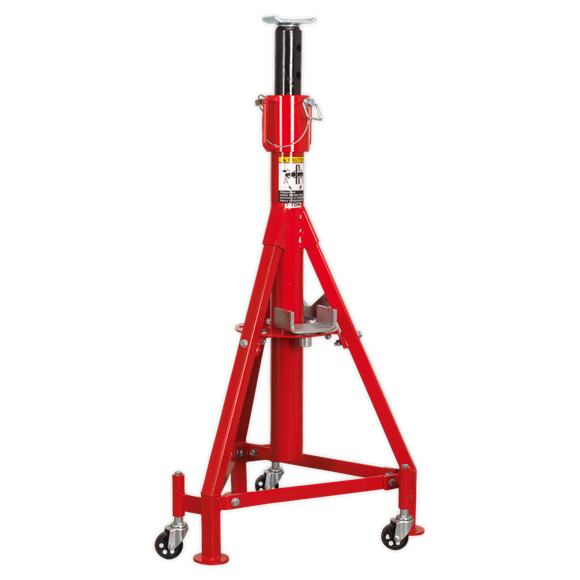

High Level Commercial Vehicle Support Stand 7 Tonne
Model No. ASC70| List Price | |||
|
|
|||
| List Price | |||
|
|
|||
- Heavy-duty 7 Tonne high level support stand.
- Safely supports vehicles when wheel free operations are being carried out.
- Independently UK load tested.
- Sturdy welded steel construction for superior safety and strength.
- Three types of large interchangeable crutches for good load distribution.
- Supplied with captive pin load support.
- Fitted with retracting castors for easy manoeuvrability.
- Suitable for commercial and public service vehicles.
- Sold as singles, but MUST be used in pairs, or multiples of.
Maximum Working Height:
Shallow - 1835mm, Deep - 1835mm, V - 1860mm
Minimum Working Height:
Shallow - 1315mm, Deep - 1315mm, V - 1340mm
Nett Weight:
63.48kg
Model No.
Description
List Price (Exc. VAT)
List Price (Inc. VAT)
ASC120.10A
Wheel , Swivel Castor (D:75 W: 30 B: 10 H: 265)
Name: Wheel , Swivel Castor (D:75 W: 30 B: 10 H: 265)
Model No: ASC120.10A
£19.79
£23.75
ASC70.01
Inner rod
Name: Inner rod
Model No: ASC70.01
£203.79
£244.55
ASC70.02
Load pin ass'y c/w hitch pin
Name: Load pin ass'y c/w hitch pin
Model No: ASC70.02
£18.99
£22.79
ASC70.04
Snap ring
Name: Snap ring
Model No: ASC70.04
£3.29
£3.95
ASC70.05
Main spring
Name: Main spring
Model No: ASC70.05
£21.29
£25.55
ASC70.06
Stand base ass'y
Name: Stand base ass'y
Model No: ASC70.06
£189.49
£227.39
ASC70.11
Crutch head 'u' (long)
Name: Crutch head 'u' (long)
Model No: ASC70.11
£27.29
£32.75
ASC70.12
Crutch head 'u' (short)
Name: Crutch head 'u' (short)
Model No: ASC70.12
£27.29
£32.75
ASC70.13
Crutch head 'v'
Name: Crutch head 'v'
Model No: ASC70.13
£27.29
£32.75
HHB12100.S
Hex Head Bolt M12 X 100mm
Name: Hex Head Bolt M12 X 100mm
Model No: HHB12100.S
£1.99
£2.39
- Heavy-duty 7 Tonne high level support stand.
- Safely supports vehicles when wheel free operations are being carried out.
- Independently UK load tested.
- Sturdy welded steel construction for superior safety and strength.
- Three types of large interchangeable crutches for good load distribution.
- Supplied with captive pin load support.
- Fitted with retracting castors for easy manoeuvrability.
- Suitable for commercial and public service vehicles.
- Sold as singles, but MUST be used in pairs, or multiples of.
Maximum Working Height:
Shallow - 1835mm, Deep - 1835mm, V - 1860mm
Minimum Working Height:
Shallow - 1315mm, Deep - 1315mm, V - 1340mm
Nett Weight:
63.48kg
