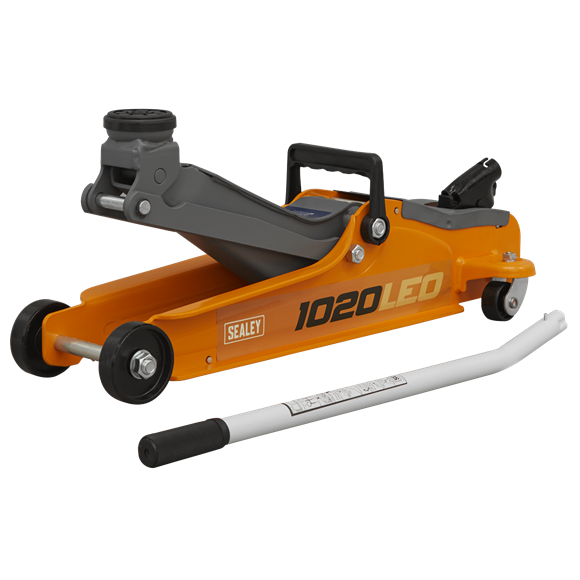

- LOW ENTRYLIFTING RANGE - Minimum saddle height 85mm, maximum saddle height 385mm.
- PROFILED LIFTING ARM - Allows low clearance height making this unit suitable for sports and custom cars.
- ONE PIECE HYDRAULIC UNIT - Fitted with heavy-duty one-piece hydraulic unit with pump-through action preventing handle locking at maximum ram extension.
- WHITE SADDLE - Aids positioning under vehicle and safety valve prevents overloading.
- HEAVY DUTY CHASSIS - Has strengthening flanges along the top edge for extra torsional rigidity under load.
- JACK PAD INCLUDED - Prevents damage to underside of vehicle jacking point.
Capacity:
2 Tonne
Length:
563mm
Maximum Chassis Height:
133mm
Maximum Saddle Height:
385mm
Minimum Saddle Height:
85mm
Nett Weight:
11.86kg
Model No.
Description
List Price (Exc. VAT)
List Price (Inc. VAT)
1020LE.V3-01
Saddle, White Serrated Cup (F) Ø 50mm
Name: Saddle, White Serrated Cup (F) Ø 50mm
Model No: 1020LE.V3-01
£0.49
£0.59
1020LE.V3-02
Lift Arm Assembly
Name: Lift Arm Assembly
Model No: 1020LE.V3-02
£19.99
£23.99
1020LE.V3-03
Radius Link
Name: Radius Link
Model No: 1020LE.V3-03
£2.49
£2.99
1020LE.V3-04
Radius Link Axle
Name: Radius Link Axle
Model No: 1020LE.V3-04
£0.79
£0.95
1020LE.V3-05
Ram Plunger Axle
Name: Ram Plunger Axle
Model No: 1020LE.V3-05
£1.29
£1.55
1020LE.V3-06
Return Spring
Name: Return Spring
Model No: 1020LE.V3-06
£0.79
£0.95
1020LE.V3-07
Saddle Pin
Name: Saddle Pin
Model No: 1020LE.V3-07
£0.49
£0.59
1020LE.V3-08
External Circlip 11.8mm ID.
Name: External Circlip 11.8mm ID.
Model No: 1020LE.V3-08
£0.49
£0.59
1020LE.V3-09
External Circlip 12.0mm ID.
Name: External Circlip 12.0mm ID.
Model No: 1020LE.V3-09
£0.49
£0.59
1020LE.V3-10
External Circlip 17.0mm ID.
Name: External Circlip 17.0mm ID.
Model No: 1020LE.V3-10
£0.49
£0.59
1020LE.V3-11
Front Wheel
Name: Front Wheel
Model No: 1020LE.V3-11
£2.99
£3.59
1020LE.V3-12
Front Wheel Bush
Name: Front Wheel Bush
Model No: 1020LE.V3-12
£0.49
£0.59
1020LE.V3-13
Front Axle
Name: Front Axle
Model No: 1020LE.V3-13
£1.79
£2.15
1020LE.V3-16
Frame Tie Rod
Name: Frame Tie Rod
Model No: 1020LE.V3-16
£0.49
£0.59
1020LE.V3-17
Radius Link Stud
Name: Radius Link Stud
Model No: 1020LE.V3-17
£0.49
£0.59
1020LE.V3-20
Fixed Shaft (Centre)
Name: Fixed Shaft (Centre)
Model No: 1020LE.V3-20
£2.79
£3.35
1020LE.V3-22
Frame Tie Rod
Name: Frame Tie Rod
Model No: 1020LE.V3-22
£0.49
£0.59
1020LE.V3-23
Fixed Shaft
Name: Fixed Shaft
Model No: 1020LE.V3-23
£1.79
£2.15
1020LE.V3-24
Wheel, Rear Swivel Castor, Single Bolt (c/w Bearing & Fixing
Name: Wheel, Rear Swivel Castor, Single Bolt (c/w Bearing & Fixing
Model No: 1020LE.V3-24
£5.29
£6.35
1020LE.V3-28
Frame, Right Side (Red)
Name: Frame, Right Side (Red)
Model No: 1020LE.V3-28
£13.79
£16.55
1020LE.V3-29
Cover Plate
Name: Cover Plate
Model No: 1020LE.V3-29
£0.99
£1.19
1020LE.V3-30
Top Nut
Name: Top Nut
Model No: 1020LE.V3-30
£2.79
£3.35
1020LE.V3-31
O-Ring (Ø25 × Ø3.55)
Name: O-Ring (Ø25 × Ø3.55)
Model No: 1020LE.V3-31
£0.49
£0.59
1020LE.V3-31
O-Ring (Ø25 × Ø3.55)
Name: O-Ring (Ø25 × Ø3.55)
Model No: 1020LE.V3-31
£0.49
£0.59
1020LE.V3-32
Seal Ring
Name: Seal Ring
Model No: 1020LE.V3-32
£0.49
£0.59
1020LE.V3-32
Seal Ring
Name: Seal Ring
Model No: 1020LE.V3-32
£0.49
£0.59
1020LE.V3-33
Reservoir
Name: Reservoir
Model No: 1020LE.V3-33
£1.99
£2.39
1020LE.V3-34
Oil Seal
Name: Oil Seal
Model No: 1020LE.V3-34
£0.49
£0.59
1020LE.V3-34
Oil Seal
Name: Oil Seal
Model No: 1020LE.V3-34
£0.49
£0.59
1020LE.V3-35
Wedge Ring
Name: Wedge Ring
Model No: 1020LE.V3-35
£0.49
£0.59
1020LE.V3-35
Wedge Ring
Name: Wedge Ring
Model No: 1020LE.V3-35
£0.49
£0.59
1020LE.V3-36
Cylinder
Name: Cylinder
Model No: 1020LE.V3-36
£2.79
£3.35
1020LE.V3-37
Flat Washer (Ø34 x Ø23 x 0.8)
Name: Flat Washer (Ø34 x Ø23 x 0.8)
Model No: 1020LE.V3-37
£0.49
£0.59
1020LE.V3-37
Flat Washer (Ø34 x Ø23 x 0.8)
Name: Flat Washer (Ø34 x Ø23 x 0.8)
Model No: 1020LE.V3-37
£0.49
£0.59
1020LE.V3-38
Ram Plunger
Name: Ram Plunger
Model No: 1020LE.V3-38
£2.99
£3.59
1020LE.V3-39
Bushing Cover
Name: Bushing Cover
Model No: 1020LE.V3-39
£0.49
£0.59
1020LE.V3-39
Bushing Cover
Name: Bushing Cover
Model No: 1020LE.V3-39
£0.49
£0.59
1020LE.V3-40
Back-up Washer
Name: Back-up Washer
Model No: 1020LE.V3-40
£0.49
£0.59
1020LE.V3-40
Back-up Washer
Name: Back-up Washer
Model No: 1020LE.V3-40
£0.49
£0.59
1020LE.V3-41
U-Cup Seal
Name: U-Cup Seal
Model No: 1020LE.V3-41
£0.49
£0.59
1020LE.V3-41
U-Cup Seal
Name: U-Cup Seal
Model No: 1020LE.V3-41
£0.49
£0.59
1020LE.V3-42
External Circlip 16.0mm ID.
Name: External Circlip 16.0mm ID.
Model No: 1020LE.V3-42
£0.49
£0.59
1020LE.V3-43
Filter
Name: Filter
Model No: 1020LE.V3-43
£0.49
£0.59
1020LE.V3-43
Filter
Name: Filter
Model No: 1020LE.V3-43
£0.49
£0.59
1020LE.V3-45
Base
Name: Base
Model No: 1020LE.V3-45
£11.49
£13.79
1020LE.V3-46
Throttle Valve
Name: Throttle Valve
Model No: 1020LE.V3-46
£0.49
£0.59
1020LE.V3-46
Throttle Valve
Name: Throttle Valve
Model No: 1020LE.V3-46
£0.49
£0.59
1020LE.V3-47
Spring
Name: Spring
Model No: 1020LE.V3-47
£0.49
£0.59
1020LE.V3-47
Spring
Name: Spring
Model No: 1020LE.V3-47
£0.49
£0.59
1020LE.V3-49
Steel Ball Base
Name: Steel Ball Base
Model No: 1020LE.V3-49
£0.49
£0.59
1020LE.V3-50
Safety Valve Spring
Name: Safety Valve Spring
Model No: 1020LE.V3-50
£0.49
£0.59
1020LE.V3-51
O-Ring (Ø6 × Ø3)
Name: O-Ring (Ø6 × Ø3)
Model No: 1020LE.V3-51
£0.49
£0.59
1020LE.V3-51
O-Ring (Ø6 × Ø3)
Name: O-Ring (Ø6 × Ø3)
Model No: 1020LE.V3-51
£0.49
£0.59
1020LE.V3-52
Safety Valve Screw
Name: Safety Valve Screw
Model No: 1020LE.V3-52
£0.49
£0.59
1020LE.V3-53
Protection Cap
Name: Protection Cap
Model No: 1020LE.V3-53
£0.49
£0.59
1020LE.V3-55
Flat Washer (Ø16 x 4 × 4 x 1)
Name: Flat Washer (Ø16 x 4 × 4 x 1)
Model No: 1020LE.V3-55
£0.49
£0.59
1020LE.V3-55
Flat Washer (Ø16 x 4 × 4 x 1)
Name: Flat Washer (Ø16 x 4 × 4 x 1)
Model No: 1020LE.V3-55
£0.49
£0.59
1020LE.V3-56
Pump
Name: Pump
Model No: 1020LE.V3-56
£2.29
£2.75
1020LE.V3-58
Back-up Washer
Name: Back-up Washer
Model No: 1020LE.V3-58
£0.49
£0.59
1020LE.V3-58
Back-up Washer
Name: Back-up Washer
Model No: 1020LE.V3-58
£0.49
£0.59
1020LE.V3-59
Pump Piston
Name: Pump Piston
Model No: 1020LE.V3-59
£5.49
£6.59
1020LE.V3-60
Connection Sleeve
Name: Connection Sleeve
Model No: 1020LE.V3-60
£0.49
£0.59
1020LE.V3-61
Release Valve Rod
Name: Release Valve Rod
Model No: 1020LE.V3-61
£0.79
£0.95
1020LE.V3-62
Handle Socket
Name: Handle Socket
Model No: 1020LE.V3-62
£2.79
£3.35
1020LE.V3-63
Handle Socket Pin (Upper)
Name: Handle Socket Pin (Upper)
Model No: 1020LE.V3-63
£0.49
£0.59
1020LE.V3-64
Handle Socket Pin (Lower)
Name: Handle Socket Pin (Lower)
Model No: 1020LE.V3-64
£0.49
£0.59
1020LE.V3-65
Retaining Pin
Name: Retaining Pin
Model No: 1020LE.V3-65
£0.49
£0.59
1020LE.V3-66
Handle
Name: Handle
Model No: 1020LE.V3-66
£5.79
£6.95
1020LE.V3-67
Handle Grip
Name: Handle Grip
Model No: 1020LE.V3-67
£0.79
£0.95
1020LE.V3-68
Carry Handle
Name: Carry Handle
Model No: 1020LE.V3-68
£1.29
£1.55
1020LE.V3-HU
Hydraulic Unit for 1020LE Series
Name: Hydraulic Unit for 1020LE Series
Model No: 1020LE.V3-HU
£36.79
£44.15
1020LE.V3-RK
Repair Kit for 1020LE Series
Name: Repair Kit for 1020LE Series
Model No: 1020LE.V3-RK
£3.29
£3.95
1020LEO.27
Frame, Left Side (Orange)
Name: Frame, Left Side (Orange)
Model No: 1020LEO.27
£13.79
£16.55
1020LEO.28
Frame, Right Side (Orange)
Name: Frame, Right Side (Orange)
Model No: 1020LEO.28
£13.79
£16.55
FWM12.S
Flat Washer M12 Zinc
Name: Flat Washer M12 Zinc
Model No: FWM12.S
£0.79
£0.95
JP29
Safety Rubber Jack Pad - Type A
Name: Safety Rubber Jack Pad - Type A
Model No: JP29
£5.95
£7.14
NLN10.S
Nyloc Nut M10 Zinc
Name: Nyloc Nut M10 Zinc
Model No: NLN10.S
£0.79
£0.95
NLN8.S
Nyloc Nut M8 Zinc
Name: Nyloc Nut M8 Zinc
Model No: NLN8.S
£0.79
£0.95
SB-4.0
Steel Ball 4.0mm
Name: Steel Ball 4.0mm
Model No: SB-4.0
£0.79
£0.95
SB-4.0
Steel Ball 4.0mm
Name: Steel Ball 4.0mm
Model No: SB-4.0
£0.79
£0.95
SB-5.0
Steel Ball 5.0mm
Name: Steel Ball 5.0mm
Model No: SB-5.0
£0.79
£0.95
SB-5.0
Steel Ball 5.0mm
Name: Steel Ball 5.0mm
Model No: SB-5.0
£0.79
£0.95
SB-6.0
Steel Ball 6.0mm
Name: Steel Ball 6.0mm
Model No: SB-6.0
£0.79
£0.95
SB-6.0
Steel Ball 6.0mm
Name: Steel Ball 6.0mm
Model No: SB-6.0
£0.79
£0.95
SN12.S
Steel Nut M12 Zinc
Name: Steel Nut M12 Zinc
Model No: SN12.S
£0.99
£1.19
SWM10.S
Spring Washer M10 Zinc
Name: Spring Washer M10 Zinc
Model No: SWM10.S
£0.99
£1.19
SWM12.S
Spring Washer M12 Zinc
Name: Spring Washer M12 Zinc
Model No: SWM12.S
£0.99
£1.19
SWM8.S
Spring Washer M8 Zinc
Name: Spring Washer M8 Zinc
Model No: SWM8.S
£0.49
£0.59
- LOW ENTRYLIFTING RANGE - Minimum saddle height 85mm, maximum saddle height 385mm.
- PROFILED LIFTING ARM - Allows low clearance height making this unit suitable for sports and custom cars.
- ONE PIECE HYDRAULIC UNIT - Fitted with heavy-duty one-piece hydraulic unit with pump-through action preventing handle locking at maximum ram extension.
- WHITE SADDLE - Aids positioning under vehicle and safety valve prevents overloading.
- HEAVY DUTY CHASSIS - Has strengthening flanges along the top edge for extra torsional rigidity under load.
- JACK PAD INCLUDED - Prevents damage to underside of vehicle jacking point.
Capacity:
2 Tonne
Length:
563mm
Maximum Chassis Height:
133mm
Maximum Saddle Height:
385mm
Minimum Saddle Height:
85mm
Nett Weight:
11.86kg
