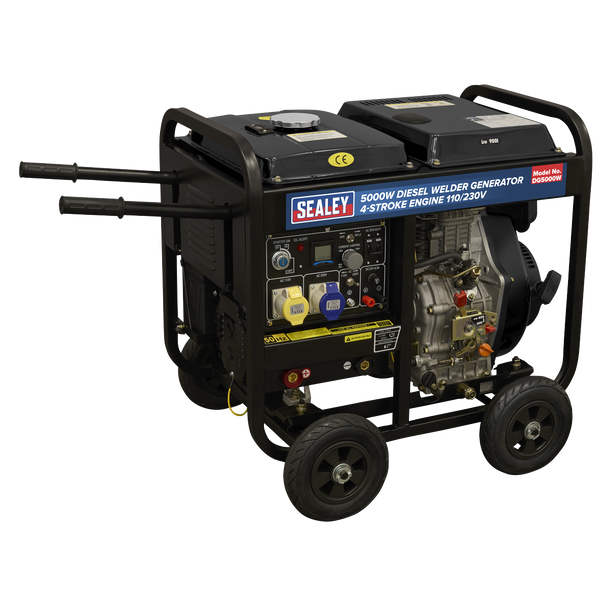

Description
• DUAL VOLTAGE OUTPUT – Supplies both 110V and 230V AC for flexible power options on-site.
• WELDER FUNCTION – Built-in electric welding capability with adjustable current ranges from 80–180A.
• DIESEL ENGINE POWER – Driven by a 418cc single-cylinder, 4-stroke diesel engine delivering 5.0kW.
• RECOIL & KEY START – Manual recoil start, and Key Start Function.
• LARGE FUEL TANK – 15L capacity allows extended operation without frequent refuelling.
• WELDING CAPACITY – Rated for 80–180A welding current and suitable for electrodes from Ø2.5-4mm.
• COMPACT & PORTABLE – Rugged frame with two pull handles and four wheels for easy transportation around the worksite.
• IDEAL FOR REMOTE WORK – Perfect for construction, agricultural, and industrial applications.
• SUPPLIED WITH – Two Keys, 2.8m electrode holder and 2.8m earth clamp.
• WELDER FUNCTION – Built-in electric welding capability with adjustable current ranges from 80–180A.
• DIESEL ENGINE POWER – Driven by a 418cc single-cylinder, 4-stroke diesel engine delivering 5.0kW.
• RECOIL & KEY START – Manual recoil start, and Key Start Function.
• LARGE FUEL TANK – 15L capacity allows extended operation without frequent refuelling.
• WELDING CAPACITY – Rated for 80–180A welding current and suitable for electrodes from Ø2.5-4mm.
• COMPACT & PORTABLE – Rugged frame with two pull handles and four wheels for easy transportation around the worksite.
• IDEAL FOR REMOTE WORK – Perfect for construction, agricultural, and industrial applications.
• SUPPLIED WITH – Two Keys, 2.8m electrode holder and 2.8m earth clamp.
Spare Parts
Specification & Documents
Specification
| Welding Current: | 80-180A |
| Electrode Capacity: | 1.6-4mm |
| Quality Class | A |
| Power Rating Category | COP |
| Performance Class | G1 |
| Rated Power Factor | (COS ∮) 0.8 kW |
Continuous Power Rating: |
4600w |
Current Rating: |
20A |
Dimensions (W x D x H): |
720 x 485 x 600mm |
Fuel Tank: |
15L |
Fuel: |
Diesel |
IP Rating: |
IP23 |
Maximum Power Rating: |
5000W |
Maximum Running Time: |
12hrs |
Motor Power: |
5.7kw/3600rpm |
Motor Type: |
4-Stoke Diesel |
Noise Rating: |
97db(A) |
Oil Capacity: |
1.65L |
Output: |
110/230V |
Nett Weight: |
120kg |
Barcode: |
5054630662492 |
Safety Data Sheet: |
|
Parts Diagram: |
|
Declaration of Conformity: |
|
Instructions: |
