Description

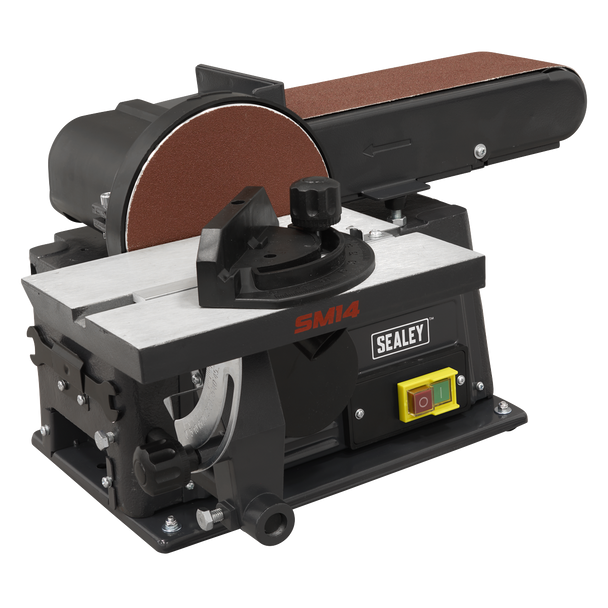

• BENCH MOUNTING - Semi-portable belt and disc sander suitable for general woodworking applications.
• POWERFUL - 500W induction motor with smooth, bearing-mounted drive pulleys gives quiet operation.
• BELT SIZE – 915 x 100mm.
• DISC SIZE - Ø150mm.
• ADJUSTABLE - Sanding disc table tilts to 45° and is supplied with mitre gauge for accurate angle sanding. Belt can be used horizontally or vertically.
• POWERFUL - 500W induction motor with smooth, bearing-mounted drive pulleys gives quiet operation.
• BELT SIZE – 915 x 100mm.
• DISC SIZE - Ø150mm.
• ADJUSTABLE - Sanding disc table tilts to 45° and is supplied with mitre gauge for accurate angle sanding. Belt can be used horizontally or vertically.
Spare Parts
Specification & Documents
Consumable Parts
| Replacement Sanding Belts: | |
| Model No: | Grade: |
| SB0014: | 60Grit |
| SB0015: | 80Grit |
| SB0016: | 100Grit |
| Replacement Sanding Disc: | |
| Model No: | Grade: |
| SSD02: | 80Grit |
Belt Size(s): |
915 x 100mm |
Belt Speed: |
460m/min |
Disc Size: |
Ø150mm |
Disc Speed: |
2950rpm |
Dust Extraction Diameter: |
Ø35mm |
Motor Power: |
500W - 230V |
Table Size: |
225 x 160mm |
Table Tilt: |
0-45º |
Nett Weight: |
22kg |
Barcode: |
5054630429514 |
Declaration of Conformity: |
|
Parts Diagram: |
|
Instructions: |
|
Supply: |
230V |
