Description

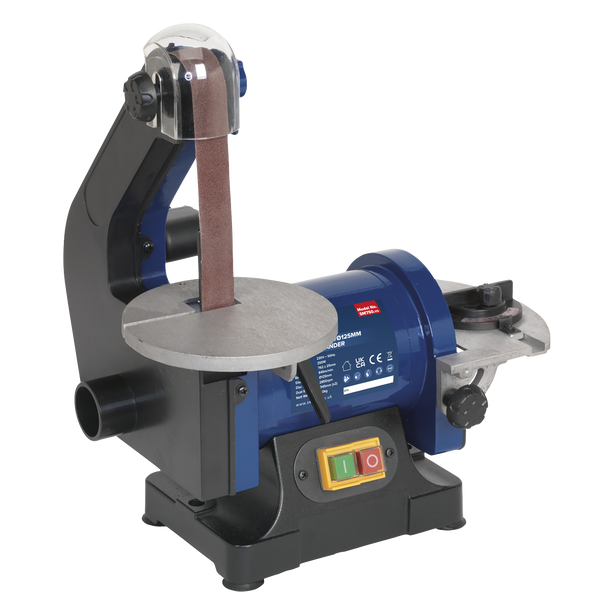

• BENCH MOUNTING - Semi-portable belt and disc sander suitable for general woodworking applications.
• POWERFUL - 250W induction motor with smooth, bearing-mounted drive pulleys gives quiet operation.
• BELT - Size: 762 x 25mm.
• DISC - Size: Ø125mm.
• ADJUSTABLE - Sanding disc table tilts to 45° and is supplied with mitre gauge for accurate angle sanding.
• VERTICAL - Sanding belt is fixed, but table is similarly adjustable.
• INCLUDED - Supplied with one of each abrasive already fitted.
• POWERFUL - 250W induction motor with smooth, bearing-mounted drive pulleys gives quiet operation.
• BELT - Size: 762 x 25mm.
• DISC - Size: Ø125mm.
• ADJUSTABLE - Sanding disc table tilts to 45° and is supplied with mitre gauge for accurate angle sanding.
• VERTICAL - Sanding belt is fixed, but table is similarly adjustable.
• INCLUDED - Supplied with one of each abrasive already fitted.
Spare Parts
Specification & Documents
Consumable Parts

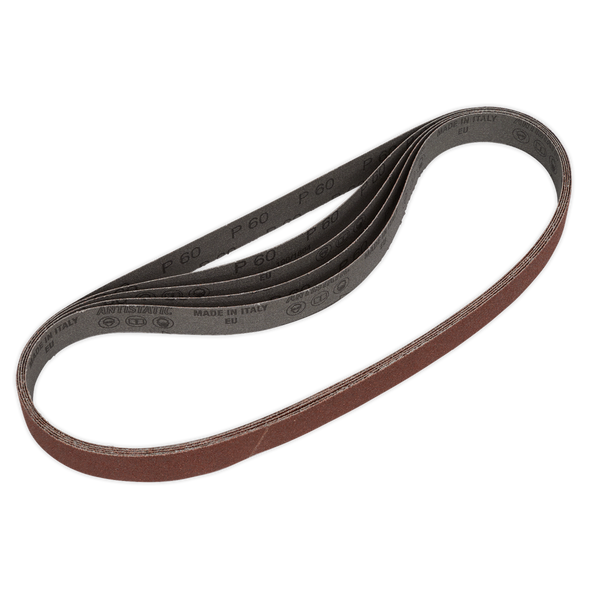

| Replacement Sanding Belts: | |
| Model No: | Grade: |
| SM750B60G | 60Grit |
| SM750B80G | 80Grit |
| SM750B120G: | 120Grit |
| Replacement Sanding Discs: | |
| Model No: | Grade: |
| SSD01: | 80Grit |
Belt Size(s): |
762 x 25mm |
Belt Speed: |
845m/min |
Disc Size: |
Ø125mm |
Disc Speed: |
2850rpm |
Dust Extraction Diameter: |
Ø45mm (x2) |
Motor Power: |
250W |
Supply: |
230V |
Table Size: |
128 x 185mm |
Table Tilt: |
0-45° |
Nett Weight: |
7kg |
Barcode: |
5054630427596 |
Declaration of Conformity: |
|
Instructions: |
|
Parts Diagram: |
