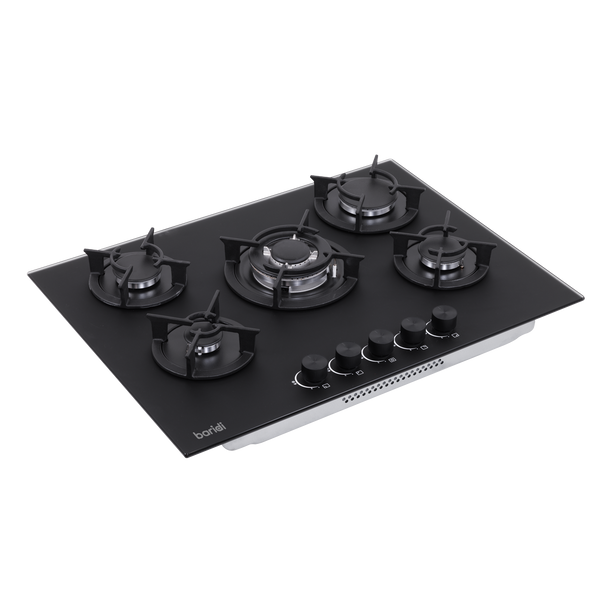

Description
• VERSATILE - Five burners, including a dedicated wok burner, allowing you to simultaneously cook a variety of dishes with different heat requirements.
• HIGH COOKING POWER -10.4kW total power provides quick and efficient heating, reducing cooking times and enabling high-temperature cooking.
• CAST IRON PAN SUPPORTS - The robust cast iron pan supports, not only provide stability for your cookware but also offer long-lasting durability.
• AUTO IGNITION - Integrated ignition system for quick and easy burner activation with flame failure safety device on each burner.
• MATT BLACK GLASS FINISH - Sleek, modern glass that’s easy to clean and maintain.
• SUITABLE FOR LPG OR NATURAL GAS - Compatible with multiple fuel types.
• IMPORTANT – Note that changing or repairing anything connected to gas carries significant risk and must be carried out by a Gas Safe registered engineer. Warranty will be voided if installed or repaired without a gas safe certificate.
• HIGH COOKING POWER -10.4kW total power provides quick and efficient heating, reducing cooking times and enabling high-temperature cooking.
• CAST IRON PAN SUPPORTS - The robust cast iron pan supports, not only provide stability for your cookware but also offer long-lasting durability.
• AUTO IGNITION - Integrated ignition system for quick and easy burner activation with flame failure safety device on each burner.
• MATT BLACK GLASS FINISH - Sleek, modern glass that’s easy to clean and maintain.
• SUITABLE FOR LPG OR NATURAL GAS - Compatible with multiple fuel types.
• IMPORTANT – Note that changing or repairing anything connected to gas carries significant risk and must be carried out by a Gas Safe registered engineer. Warranty will be voided if installed or repaired without a gas safe certificate.
Spare Parts
Specification & Documents
Specification
| Cut-Out (W x D): | 560 x 840mm |
| Auxiliary Burner: | 1kW |
| Semi-Rapid Burner: | 1.8 kW |
| Rapid Burner: | 2.4kW |
| Wok Burner: | 3.4kW |
| Gas Consumption: | 988L/hr |
| Power Lead: | BS Plug |
| Panel Material | 8mm Tempered Glass. Matte Black |
| Rated Power: | 2W |
| Connection: | A4 elbow with nozzle |
| Natural Gas (G20) | 20mbar |
| Butane (G30) | 28-30mbar |
| Propane (G31) | 37mbar |
| Appliance Category: | II2H3+ |
| Countries of Destination | CH, CZ, ES, GB, GR, IE, IT, LT, PT, SK |
| Burner Pans Min/Max Ø | Auxiliary burner: 10 to 14mm Semi-Rapid Burner: 16 to 20mm Rapid Burner: 22 to 24mm Wok Burner: 24 to 26mm |
Cable Length: |
1.4m |
Noise Power/Pressure: |
N/A |
Power: |
10.4kW |
Supply: |
230V ~ 50Hz |
Type: |
Gas |
Vibration/Uncertainty: |
N/A |
Nett Weight: |
13.1kg |
Product Depth (Front to Back): |
51cm |
Product Height (Floor to Top): |
10cm |
Product Width (Side to Side): |
70cm |
Barcode: |
5054630678455 |
Parts Diagram: |
|
Declaration of Conformity: |
|
Instructions: |
