Description

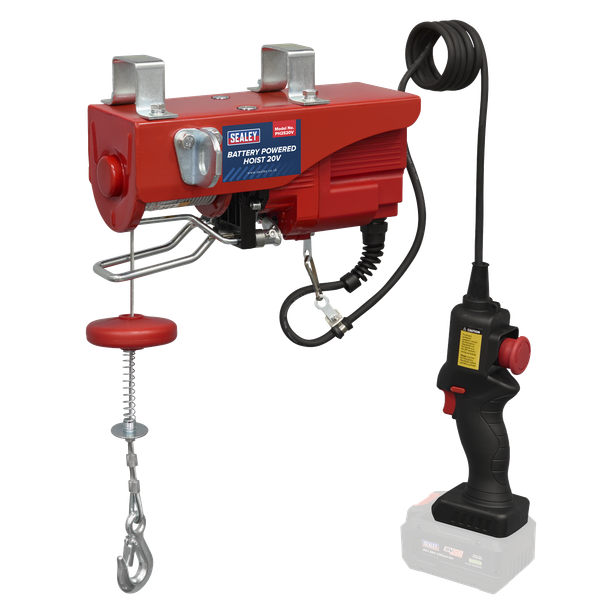

• BATTERY POWERED - Powered by our SV20 20V battery system. For best performance, use Battery Model No. CP20VBP8.
• DUAL BRAKES - Hoist is installed with two types of brakes electronic and mechanical to ensure the product brakes effectively.
• OVERHEAT PROTECTION - Features integrated overheat protection for improved safety and extended product life.
• LONG WIRE - 12m Wire for extended reach and easier hoisting (double line 6m).
• PULLING COMPACITY - 125kg of pulling power (double line 250kg).
• DUAL BRAKES - Hoist is installed with two types of brakes electronic and mechanical to ensure the product brakes effectively.
• OVERHEAT PROTECTION - Features integrated overheat protection for improved safety and extended product life.
• LONG WIRE - 12m Wire for extended reach and easier hoisting (double line 6m).
• PULLING COMPACITY - 125kg of pulling power (double line 250kg).
Spare Parts
Specification & Documents
Capacity (Double Cable): |
250kg |
Capacity (Single Cable): |
125kg |
Lift Speed (Maximum): |
Single - 4m/min
Double - 2m/min |
Insulating Grade: |
B |
IP Rating: |
IP23
|
Lift Height (Double Cable): |
6m |
Lift Height (Single Cable): |
12m |
Minimum Rope Tensile Strength: |
1870N/mm² |
Motor Power: |
200W |
Rope Diameter: |
Ø3.18mm |
Voltage: |
20V |
Nett Weight: |
7.5kg |
Barcode: |
5054630632990 |
