Description
• PSA DIESEL ENGINE - Suitable for use with 1.4 (DV4), 1.5 (DV5) and 1.6 (DV6) HDi diesel engines.

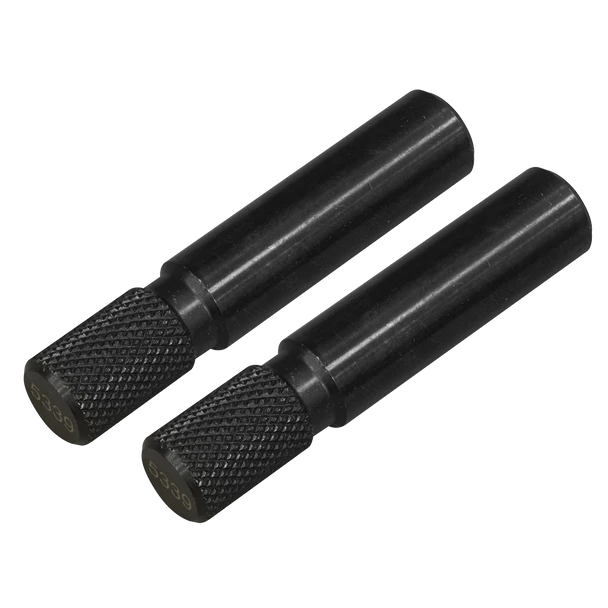

• ALIGNMENT PINS - Used for correct alignment of the camshaft carrier during timing chain-in-head replacement procedures.
• CAMSHAFT CARRIER - Ensures correct location of the camshaft carrier during reassembly of the engine.
• OEM TOOLS - Equivalent to 0194-N, 2.000.022.900, 303-245, 303-034, EN-52146, T9997170
• TIME SAVING - Makes assembly a simpler and more accurate process.
• ALIGNMENT PINS - Used for correct alignment of the camshaft carrier during timing chain-in-head replacement procedures.
• CAMSHAFT CARRIER - Ensures correct location of the camshaft carrier during reassembly of the engine.
• OEM TOOLS - Equivalent to 0194-N, 2.000.022.900, 303-245, 303-034, EN-52146, T9997170
• TIME SAVING - Makes assembly a simpler and more accurate process.
Specification & Documents
Application(s)
| Applications: | |
| Citroen: | C1 (05-10), C2 (02-10), C3 (02-10), C3 1 (02-10), C3 II (02-10), C3 III (04-18), C3 Pluriel (2012), C3 Classic (02-10), C3 Aircross (18-21), C3 Picasso (04-17), C4 (07-11), C4 II (11-18), C4 III (00-04), C4X (02-26), C4 Picasso (00-18), C4 Grand Picasso (06-18), C4 Cactus (18-21), C4 Aircross (07-10), C4 Sports Tourer (18-24), C4 Grand Sports Tourer (18-25), C5 Aircross (19-25) C5 II (04-08), C5 III (04-15), C-Elysee (14-21) |
| Fiat: | Scudo (07-16) |
| Ford: | B-Max (12-15), C-Max (11-20), Grand C-Max (10-19), Ecoboost (13-23), Fiesta (02-13), Fusion (02-11), Focus (04-25), Galaxy (11-15), Kuga (20-23), Puma (20-23), S-Max (10-15), Tourneo Connect (13-24), Grand Tourneo Connect (15-24), Transit Connect (13-24), Transit Courier (20-26) |
| Mazda: | 2 (02-10), 3 (03-14) |
| Peugeot: | 107 (05-10), 1007 (05-10), 206 (01-09), 206 + (10-13), 206 CC (05-07), 207 (06-13), 207CC (07-15), 208 (13-23), 2008 (13-20), 308 (01-26), 308 CC (06-15), 308 SW (21-26), 3008 (09-18), 407 (05-15), 4008 (99-02), 508 (09-24), 5008 (02-15), Bipper (08-10), Rifter (18-24), Partner (05-11), Partner II (05-11), Partner III (02-17), Partner IV (18-24), Expert III (07-12) |
| Mini: | Mini (06-15), Clubman (07-14) |
| Suzuki: | Liana (04-08), SX4 (07-11) |
| Vauxhall: | Combo E (18-21), Crossland (17-21), Grandland (17-21) |
Associated Tool(s)
| Associated tools: | VSE5846, VSE5930, VSE5941 |
Engine Codes
| Engine Codes: | |
| 1.4D: | 8HT (DV4TD), 8HW (DV4TD), 8HX (DV4TD), 8HV (DV4TED4), 8HX (DV4TD), 8HV (DV4TED4), 8HX (DV4TED4), 8HZ (DV4TD), 8HY (DV4TED4) |
| 1.4D DDiS: | DV4(8HY) |
| 1.4D HDi: | DV4C(8HP), DV4C(8HR), DV4TD(8HX), DV4TD(8HZ), DV4TD(8HW), DV4TD(8HZ), DV4TED4(8HX), DV4TD(8HZ), DVTED4(8HV), DV4TED4(8HY), DV4TED(8HS), DV4TD(8HT) |
| 1.4D TDCi: | F6JA, F6JB, F6JD |
| 1.5D HDi: | YHX(DV5RCD), YHY(DV5RD), YHT(DV5RCF), YHY(DV5RD), YHS(DV5RCE), YHX(DV5RCD), YHZ(DV5RC), YHW(DV5RE), YHT(DV5RCF), YHZ(DV5RC), YHR(DV5RUCD), YHV(DV5RUC), DV5RC(YHZ) |
| 1.5D TDCi: | UGJE, XXDD, XWDD, XWDE, XWDG, XVGA, XUGA, XWGA |
| 1.5D ecoBlue: | ZTDA, ZTJA, ZTJB, ZTJC, ZTJD, ZTJE, Z2GA |
| 1.5D: | LQJ/D15T, LQJ/D15H |
| 1.6D Blue-HDi: | DV6C(BHX), DV6C(BHZ) |
| 1.6D DDiS: | DV6(9HX) |
| 1.6D e-HDi: | DV6FE(BHW), DV6FE(BHY), DV6FE(BXZ), DV6FD(BHY), DV6C(9HR), DV6C(9HD), DV6TED(9HD), DV6FC(BHW), DV6FC(BHX), DV6FC(BHY), DV6FC(BHZ) |
| 1.6D HDi Airdream: | DV6C(9HL), DV6C(9HR), DV6C(9HD) |
| 1.6D HDi : | DV6UTED4(9HX), DV6TED4(9HZ), DV6FD(BHY), DV6UTED4(9HU), DV6C(9HL), DV6C(9HR), DV6TED4(9HY), DV6C(9HD), DV6(9HR), DV6BTED4(9HW), DV6ATED4(9HX), DV6DTED(9HJ), DV6ETED(9HN), DV6DTED(9HP), DV6TED4BU(9HS), DV6FE(BHW), DV6BUTED4(9HT), DV6TED4B(9HV), DV6BTED4(9HT), DV6D(9HP), DV6TED4(9HV), DV6ETEDM(9HK), DV6C(9HC), DV6CM(9HG), DV6C(9HG), DV6C (9HD), DV6TED4(9HW), DV6TED4(9HX), DV6AT(9HX), DV6ATED(9HX), DV6CTED(9HC), DV6DTED(9HC), DV6DTED(9HJ), DV6DTED(9HH), DV6TEDB4(9HV), DV6TEDB4(9HS), DV6ETED(9HK), DV6AUTED4(9HX), DV6TED4B, DV6DTED(9HF) |
| 1.6D TDCi: | T3JB, T1WA, T1WB, G8DF, T1DA, T1DB, T3DB, UBGA, T1GA |
| 1.6 JTD: | 9H07 |
OEM Tool(s)
| OEM Tool(s): | |
| PSA: | 0194-N |
| Ford: | 303-245 |
| Fiat: | 2.000.022.900 |
| Mazda: | 303-034 |
| Vauxhall: | EN-52146 |
Nett Weight: |
0.105kg |
Barcode: |
5054630735547 |
