Description

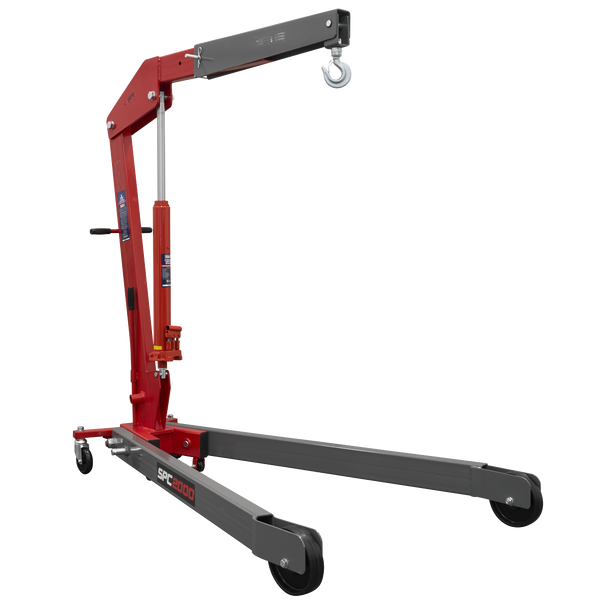

HEAVY-DUTY FRAME - 2 Tonne Folding crane with heavy-duty forged hook.
• SPACE SAVING - Fast folding for easy storage and transportation.
• LOW ACCESS - Low profile legs, with a height of only 80mm at the wheels.
• EXTENDABLE LIFTING ARM - The jib can be set in three positions, allowing a reach of 1320, 1460 and 1610mm, lifting capacities of 2000, 1700 and 1500kg.
• REVOLVING HANDLE - 300° Rotating pump handle aids use where space is limited.
• 3 Year guarantee*.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• SPACE SAVING - Fast folding for easy storage and transportation.
• LOW ACCESS - Low profile legs, with a height of only 80mm at the wheels.
• EXTENDABLE LIFTING ARM - The jib can be set in three positions, allowing a reach of 1320, 1460 and 1610mm, lifting capacities of 2000, 1700 and 1500kg.
• REVOLVING HANDLE - 300° Rotating pump handle aids use where space is limited.
• 3 Year guarantee*.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Spare Parts
Specification & Documents
Specification
Height Jib Down: |
1670mm |
Height Legs Folded: |
1910mm |
Height of Frame: |
200mm |
Length Legs Extended: |
n/a |
Length of Jib Position 1: |
1320mm |
Length of Jib Position 2: |
1460mm |
Length of Jib Position 3: |
1610mm |
Length of Jib Position 4: |
n/a |
Length of Jib Position 5: |
n/a |
Length: |
1920mm |
Lifting Capacity in Position 1: |
2000kg |
Lifting Capacity in Position 2: |
1700kg |
Lifting Capacity in Position 3: |
1500kg |
Lifting Capacity in Position 4: |
n/a |
Lifting Capacity in Position 5: |
n/a |
Max. Lift Ht at Jib Position 1: |
2520mm |
Max. Lift Ht at Jib Position 2: |
2600mm |
Max. Lift Ht at Jib Position 3: |
2730mm |
Max. Lift Ht at Jib Position 4: |
n/a |
Max. Lift Ht at Jib Position 5: |
n/a |
Rear Width: |
590mm |
Nett Weight: |
160kg |
Width Front Frame: |
1130mm |
Width Inside Front Frame: |
980mm |
Barcode: |
5054630490071 |
Instructions: |
|
Safety Data Sheet: |
|
Declaration of Conformity: |
|
Parts Diagram: |
