Description

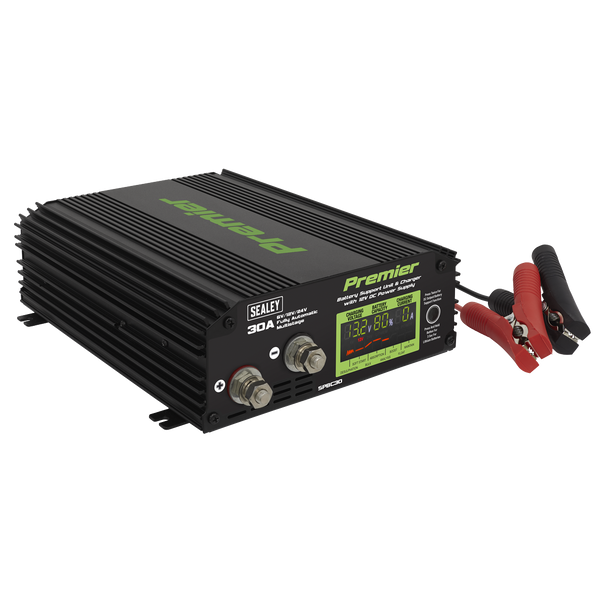

• Fully automatic 7-stage battery charger/maintainer, designed for charging a variety of EFB and AGM (stop/start), GEL, lead acid and calcium batteries with auto chemistry selection.
• Additional function to charge lithium batteries via selection button.
• Automatically selects and charges 6, 12, or 24V.
• Zero volt battery charging, enabling recovery and charging of a completely discharged battery (providing any load removed from the rechargeable battery).
• Old battery sulfation repair function.
• 13.5V DC power supply for battery support function providing support for the battery during prolonged electronic diagnostic checks.
• Reverse polarity, short circuit, over temperature and overcharging protection.
• Built-in cooling fan that only operates when required.
• Intuitive LED screen displays charging voltage, current, battery capacity percentage, and illuminated charging stages.
• Compact design with mounting brackets for permanent fitting.
• 5 Year guarantee*.
• Additional function to charge lithium batteries via selection button.
• Automatically selects and charges 6, 12, or 24V.
• Zero volt battery charging, enabling recovery and charging of a completely discharged battery (providing any load removed from the rechargeable battery).
• Old battery sulfation repair function.
• 13.5V DC power supply for battery support function providing support for the battery during prolonged electronic diagnostic checks.
• Reverse polarity, short circuit, over temperature and overcharging protection.
• Built-in cooling fan that only operates when required.
• Intuitive LED screen displays charging voltage, current, battery capacity percentage, and illuminated charging stages.
• Compact design with mounting brackets for permanent fitting.
• 5 Year guarantee*.
Specification & Documents
Specification
| Supply: | 230V ~ 50Hz 2.9-3.2A |
| Output: | 6/12/24V |
| Output Charge: | 30A @ 6/12V (16A @24V) |
| Battery Range: | 60–300Ah |
| Battery Support Mode: | 13.5V dc – 30A |
| Cable Length: | 1.1m |
| IP Rating: | IP20 |
| Dimensions: | 210 x 76 x 225mm |
| Op. Temperature Range: | -15°C - 50°C |
Nett Weight: |
2.8Kg |
Cable & Clamp Length: |
1.1m |
Barcode: |
5054511972719 |
Instructions: |
|
Declaration of Conformity: |
