Description

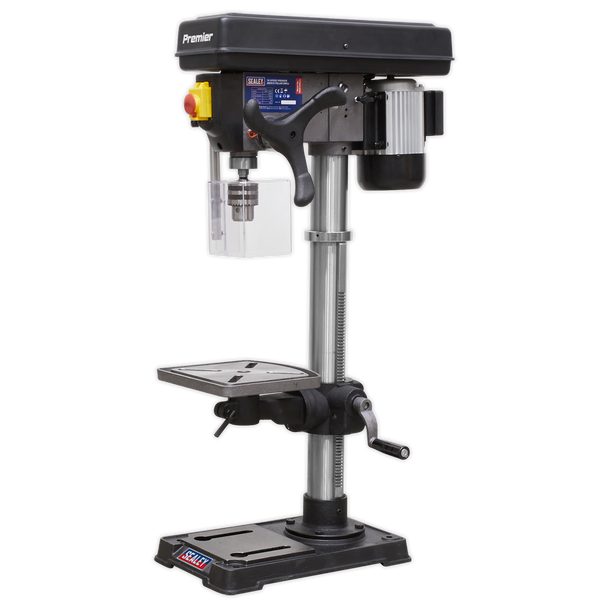

• One of a comprehensive range of Premier bench mounting pillar drills for the professional workshop.
• Features heavy-duty aluminium-bodied motor for long and reliable performance.
• No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open.
• Supplied with an electrically inter-locked chuck guard.
• Large sized square table fitted with precision rack and pinion height adjustment.
• 16mm(5/8") Capacity chuck, MT2.
• Height: 1050mm.
• Spindle Centre to Column: 165mm.
• Motor Power: 370W.
• Column Diameter: Ø73mm.
• Spindle Travel: 80mm.
• Weight: 45kg.
• 3 Year guarantee*.
• Features heavy-duty aluminium-bodied motor for long and reliable performance.
• No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open.
• Supplied with an electrically inter-locked chuck guard.
• Large sized square table fitted with precision rack and pinion height adjustment.
• 16mm(5/8") Capacity chuck, MT2.
• Height: 1050mm.
• Spindle Centre to Column: 165mm.
• Motor Power: 370W.
• Column Diameter: Ø73mm.
• Spindle Travel: 80mm.
• Weight: 45kg.
• 3 Year guarantee*.
Spare Parts
Specification & Documents
Base Size: |
450 x 270mm |
Collar Diameter: |
Ø55mm |
Column Diameter: |
Ø73mm |
Drilling Capacity (Chuck Size): |
16mm |
Integral Work Light: |
No |
Maximum Distance Spindle to Base: |
700mm |
Maximum Distance Spindle to Table: |
485mm |
Motor Power (Start): |
370W(600W) |
Number of Speeds: |
16 |
Optional Accessories: |
PDM/KC - Keyless Pillar Drill Chuck 16mm |
Overall Height: |
1050mm |
Speed Range: |
190-3000rpm |
Spindle Centre to Column: |
165mm |
Spindle Nose Taper: |
MT2 |
Spindle Travel: |
80mm |
Supply: |
230V |
Swing: |
330mm |
Nett Weight: |
45kg |
Working Base Surface Size: |
205 x 200mm |
Working Table Surface Size: |
254 x 254mm |
Barcode: |
5054511355956 |
Declaration of Conformity: |
|
Instructions: |
|
Parts Diagram: |
