Description

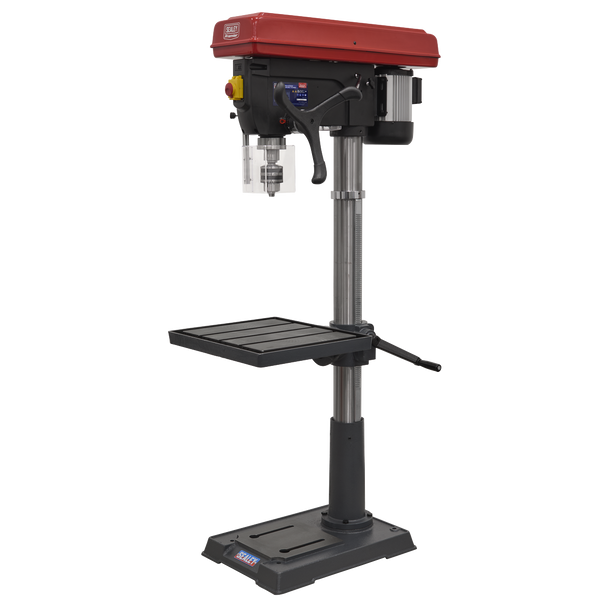

• One of a comprehensive range of Premier floor standing pillar drills for the professional workshop.
• Features heavy-duty aluminium-bodied motor for long and reliable performance.
• No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open.
• Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process (bulb not included).
• Supplied with an electrically inter-locked chuck guard.
• Large sized square table fitted with precision rack and pinion height adjustment.
• 20mm(3/4") Capacity chuck, MT4.
• Height: 1710mm.
• Spindle Centre to Column: 260mm.
• Motor Power: 1100W.
• Column Diameter: Ø92mm.
• Spindle Travel: 120mm.
• Weight: 131kg.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• 3 Year guarantee*.
• Features heavy-duty aluminium-bodied motor for long and reliable performance.
• No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open.
• Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process (bulb not included).
• Supplied with an electrically inter-locked chuck guard.
• Large sized square table fitted with precision rack and pinion height adjustment.
• 20mm(3/4") Capacity chuck, MT4.
• Height: 1710mm.
• Spindle Centre to Column: 260mm.
• Motor Power: 1100W.
• Column Diameter: Ø92mm.
• Spindle Travel: 120mm.
• Weight: 131kg.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• 3 Year guarantee*.
Spare Parts
Specification & Documents
Base Size: |
575 x 455mm |
Collar Diameter: |
Ø85mm |
Column Diameter: |
Ø92mm |
Drilling Capacity (Chuck Size): |
20mm |
Integral Work Light: |
Yes |
Maximum Distance Spindle to Base: |
1160mm |
Maximum Distance Spindle to Table: |
680mm |
Motor Power (Start): |
1100W(1500W) |
Number of Speeds: |
12 |
Optional Accessories: |
PDM/KC - Keyless Pillar Drill Chuck 16mm |
Overall Height: |
1710mm |
Speed Range: |
120-3480rpm |
Spindle Centre to Column: |
260mm |
Spindle Nose Taper: |
MT4 |
Spindle Travel: |
120mm |
Supply: |
230V |
Swing: |
520mm |
Nett Weight: |
110kg |
Working Base Surface Size: |
410 x 330mm |
Working Table Surface Size: |
425 x 475mm |
Barcode: |
5054511342390 |
Declaration of Conformity: |
|
Instructions: |
|
Parts Diagram: |
