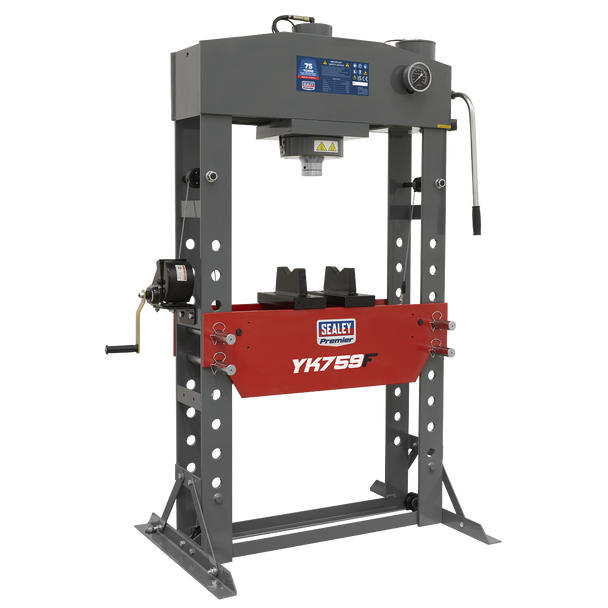

Description
• Heavy-duty steel frame construction with 2-speed hydraulic pump unit.
• Sliding hydraulic ram assembly gives 260mm of lateral travel for off-centre pressing applications.
• Frame head fitted with ram pressure gauge.
• Supplied with flat pressing plate/V-blocks.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• A forklift must be available at the delivery point to unload this item.
• 5 Year guarantee*.
• Sliding hydraulic ram assembly gives 260mm of lateral travel for off-centre pressing applications.
• Frame head fitted with ram pressure gauge.
• Supplied with flat pressing plate/V-blocks.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• A forklift must be available at the delivery point to unload this item.
• 5 Year guarantee*.
Spare Parts
Specification & Documents
Bench or Floor Mounting: |
Floor |
Capacity: |
75 Tonne |
Gauge Included: |
Yes |
Lateral Ram Travel: |
260mm |
Maximum Height - Ram to Table: |
884mm |
Minimum Height - Ram to Table: |
170mm |
Optional Accessories: |
YKSG75 - Safety Guard, YKPP8 - Press Pin Set |
Overall Height: |
1925mm |
Ram Diameter: |
Ø93mm |
Ram Stroke: |
250mm |
Table Aperture: |
251mm |
Type: |
Hydraulic |
Nett Weight: |
435kg |
Working Table Depth: |
279mm |
Working Table Width: |
1020mm |
Barcode: |
5054511718119 |
Declaration of Conformity: |
|
Instructions: |
|
Parts Diagram: |
|
Safety Data Sheet: |
