Description

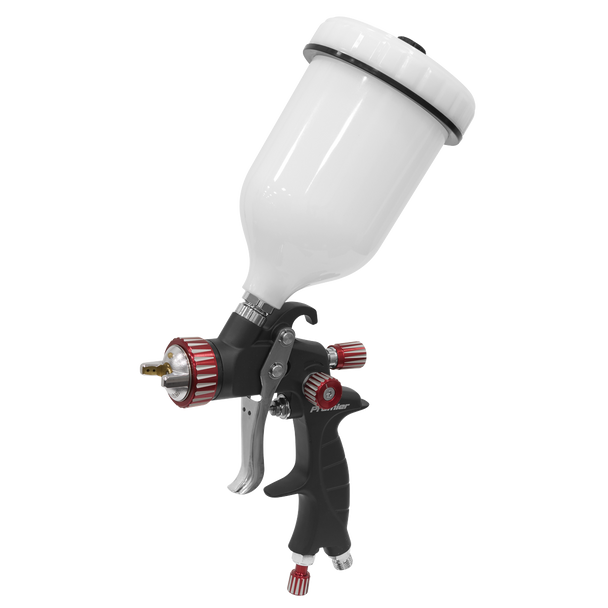

• GRAVITY FEED - Spray gun designed for applying clear and base coats.
• HVLP TECHNOLOGY - Precision engineering delivers consistent and unrivalled results.
• FEATURES - Air and paint flow controls for fine adjustment of spray pattern with a pot capacity of 600ml.
• SUITABILITY - Stainless steel fluid passages, needle, nozzle, air cap and air valve suitable for solvent and water based paints.

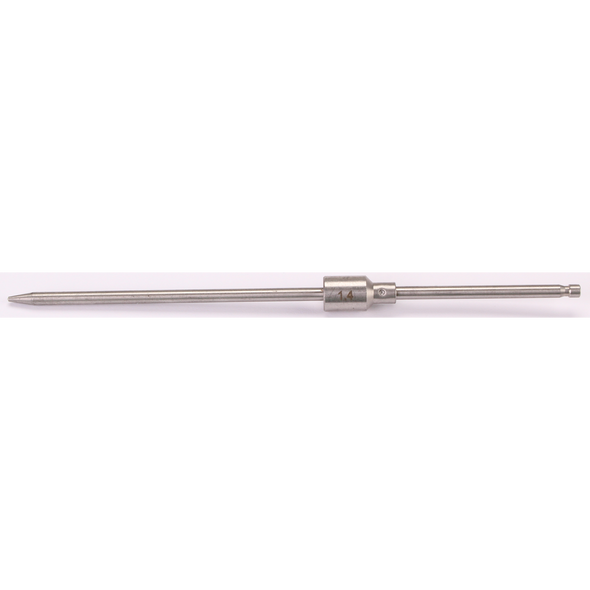

• ALTERNATIVES - Additional set-ups available, for 1.4mm order Model No. SP01.38 or for 1.7mm order Model No. SP01.38C.
• GUARANTEE - 3 Year guarantee*.
• HVLP TECHNOLOGY - Precision engineering delivers consistent and unrivalled results.
• FEATURES - Air and paint flow controls for fine adjustment of spray pattern with a pot capacity of 600ml.
• SUITABILITY - Stainless steel fluid passages, needle, nozzle, air cap and air valve suitable for solvent and water based paints.
• ALTERNATIVES - Additional set-ups available, for 1.4mm order Model No. SP01.38 or for 1.7mm order Model No. SP01.38C.
• GUARANTEE - 3 Year guarantee*.
Spare Parts
Specification & Documents
Air Consumption: |
14cfm |
Available Set-Up(s): |
1.4, 1.7mm |
Pot Capacity: |
600ml |
Recommended Air Pressure: |
30-43psi |
Standard Set-Up: |
1.3mm |
Nett Weight: |
0.94kg |
Barcode: |
5054630539503 |
Parts Diagram: |
|
Declaration of Conformity: |
|
Instructions: |
