Description

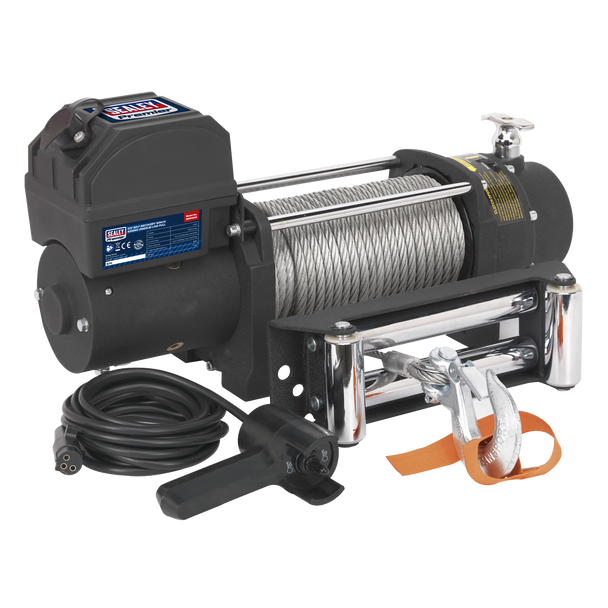

• Suitable for self-recovery and off-road use.
• Designed and built with the toughest jobs in mind.
• Heavy-duty all-weather housing and solenoids.
• High power 1.9kW 12V DC series wound motor gives first class pulling power.
• 3-Stage planetary gears using oversized components for greater torque plus mechanical braking.
• Remote control allows power in and power out of cable from a safe distance.
• Ergonomic 'lift & turn' free spool clutches.
• High quality wire rope with a 4-way roller fairlead for smooth and even distribution of cable onto drum.
• Cable Length: 26m.
• Line Pull*: 4300kg(9500lb).
• Gear Ratio: 196.6:1.
• IP67 rated.
• 3 Year Guarantee*. *Performance quoted at first layer of cable on drum.
• Designed and built with the toughest jobs in mind.
• Heavy-duty all-weather housing and solenoids.
• High power 1.9kW 12V DC series wound motor gives first class pulling power.
• 3-Stage planetary gears using oversized components for greater torque plus mechanical braking.
• Remote control allows power in and power out of cable from a safe distance.
• Ergonomic 'lift & turn' free spool clutches.
• High quality wire rope with a 4-way roller fairlead for smooth and even distribution of cable onto drum.
• Cable Length: 26m.
• Line Pull*: 4300kg(9500lb).
• Gear Ratio: 196.6:1.
• IP67 rated.
• 3 Year Guarantee*. *Performance quoted at first layer of cable on drum.
Spare Parts
Specification & Documents
Consumable Parts: |
SRW5450.WR, SRW5450.DR |
Current Draw: |
No-Load - 90A, Maximum Load - 420A |
Gear Ratio: |
196.6:1 |
Line Pull*: |
4300kg(9500lb) |
Line Speed*: |
No Load - 4.3m/min, Maximum Load - 1.6m/min |
Motor Power: |
1.9kW |
Note: |
*Performance quoted at first layer of cable on drum |
Supply: |
12V |
Nett Weight: |
40kg |
Wire Rope Diameter: |
9.2mm |
Wire Rope Length: |
26m |
Barcode: |
5051747814219 |
