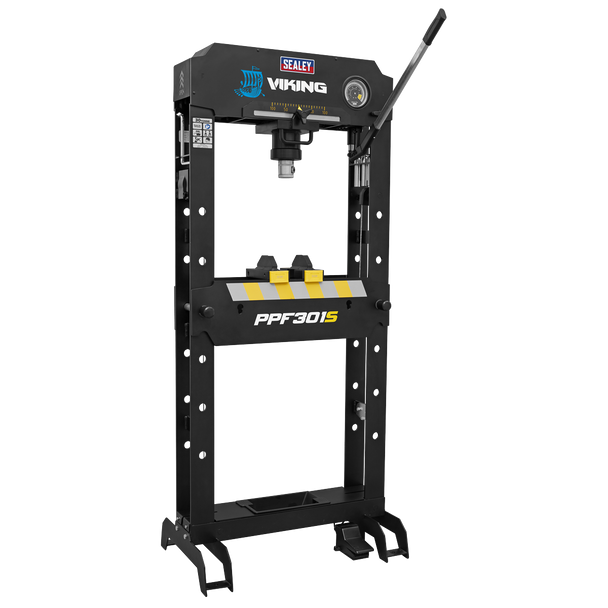

Description
• Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit.
• Screw adjustable ram and adjustable work area with removable tray.
• Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications.
• Frame head fitted with ram pressure gauge.
• Winch assisted press table adjustment.
• Storage for press pins included in frame.
• Supplied with press pins, flat pressing plate/V-blocks.
• 5 Year guarantee*.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• Screw adjustable ram and adjustable work area with removable tray.
• Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications.
• Frame head fitted with ram pressure gauge.
• Winch assisted press table adjustment.
• Storage for press pins included in frame.
• Supplied with press pins, flat pressing plate/V-blocks.
• 5 Year guarantee*.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Spare Parts
Specification & Documents
Air Consumption: |
4.5cfm |
Bench or Floor Mounting: |
Floor |
Capacity: |
30 Tonne |
Gauge Included: |
Yes |
Lateral Ram Travel: |
200mm |
Maximum Height - Ram to Table: |
850mm |
Minimum Height - Ram to Table: |
25mm |
Overall Height: |
1800mm |
Ram Diameter: |
∅103.2mm |
Ram Stroke: |
220mm |
Screw Extension: |
75mm |
Table Aperture: |
168mm |
Type: |
Floor |
Nett Weight: |
162.5kg |
Working Table Depth: |
188mm |
Working Table Width: |
770mm |
Barcode: |
5054630135002 |
