Description

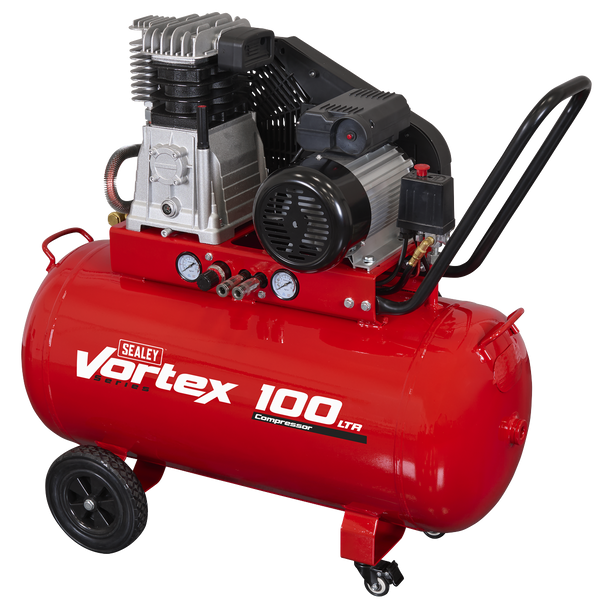

• PROFESSIONAL - Suitable for the professional workshop, this unit is fitted with a genuine 3.5hp motor.
• EASY START - Twin capacitors and a centrifugal switch aid trouble-free start-up.
• HEAVY-DUTY FULL CAST CYLINDERS WITH ALLOY HEADS - For improved heat dissipation and long-life.
• HEAVY-DUTY DRIVE GUARDS - Protect belt and flywheel, that is designed to force air over the pump to aid cooling.
• MANOEUVRABILITY - Equipped with rear wheels and two castors at the front, along with a sturdy front handle, for effortless movement and positioning in the workshop.
• EASY START - Twin capacitors and a centrifugal switch aid trouble-free start-up.
• HEAVY-DUTY FULL CAST CYLINDERS WITH ALLOY HEADS - For improved heat dissipation and long-life.
• HEAVY-DUTY DRIVE GUARDS - Protect belt and flywheel, that is designed to force air over the pump to aid cooling.
• MANOEUVRABILITY - Equipped with rear wheels and two castors at the front, along with a sturdy front handle, for effortless movement and positioning in the workshop.
Spare Parts
Specification & Documents
Air Displacement cfm(L/min): |
15cfm(425L/min) |
Maximum Free Air Delivery cfm(L/min): |
10.59cfm(300L/min) |
Maximum Pressure: |
116psi(8bar) |
Minimum Rated Supply: |
13A |
Motor Output: |
3.5hp |
Noise Level: |
89dB |
Oil Capacity: |
1000ml |
Outlet: |
Quick Release Coupling |
Phase: |
1ph |
Receiver Capacity: |
100L |
Size (W x D x H): |
1030 x 470 x 930mm |
Speed: |
1100rpm |
Supply: |
230V/13A |
Nett Weight: |
74kg |
Barcode: |
5054630497452 |
Safety Data Sheet: |
|
Instructions: |
|
Declaration of Conformity: |
