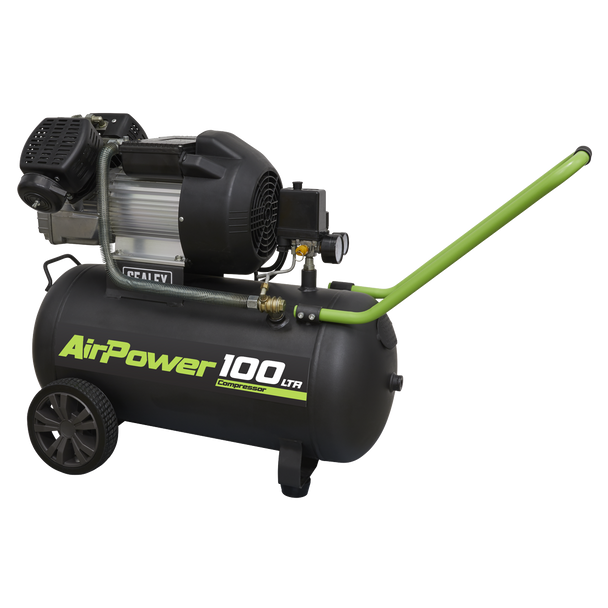

Description
• Air Displacement: 12.6cfm(357L/min).
• Maximum Free Air Delivery: 8.8cfm(249L/min).
• Maximum Pressure: 116psi(8bar).
• V-Twin pump with aluminium cylinders and cast iron liners for reduced weight and improved resistance to wear.
• Suitable for general-purpose workshop applications.
• Pump directly coupled to heavy-duty induction motor for reliable and quiet operation.
• Maximum Free Air Delivery: 8.8cfm(249L/min).
• Maximum Pressure: 116psi(8bar).
• V-Twin pump with aluminium cylinders and cast iron liners for reduced weight and improved resistance to wear.
• Suitable for general-purpose workshop applications.
• Pump directly coupled to heavy-duty induction motor for reliable and quiet operation.
Spare Parts
Specification & Documents
Air Displacement cfm(L/min): |
12.6(357) |
Maximum Free Air Delivery cfm(L/min): |
8.8(249) |
Maximum Pressure: |
116psi(8bar) |
Minimum Rated Supply: |
13A |
Motor Output: |
3hp |
Noise Level: |
96dB(A) |
Oil Capacity: |
0.35L |
Outlet: |
Quick Release Coupling |
Phase: |
1ph |
Receiver Capacity: |
100L |
Size (W x D x H): |
890 x 450 x 760mm |
Supply: |
230V/13A |
Nett Weight: |
52kg |
Barcode: |
5054511531190 |
Declaration of Conformity: |
|
Parts Diagram: |
|
Instructions: |
