Description

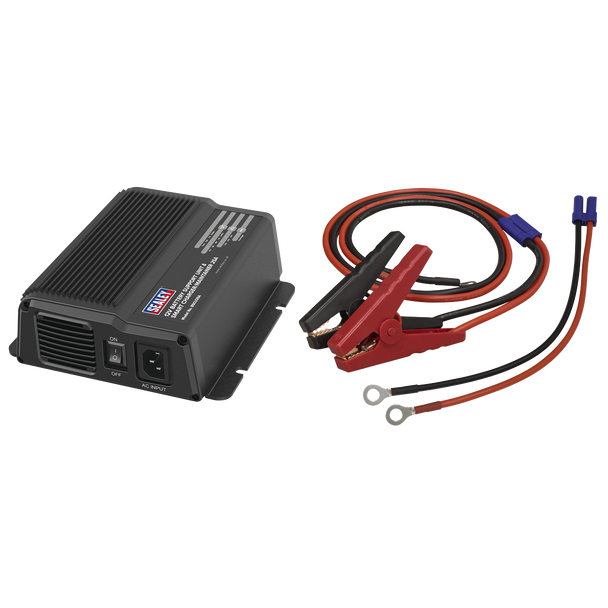

• SMART CHARGER/MAINTAINER - 12V 25A Smart charger and maintainer designed to trickle charger 12V batteries safely and efficiently.
• COMPATIBLE BATTERY TYPES - Suitable for charging and maintaining a variety of VRLA, Gel, AGM/EFB, leisure and lithium batteries.
• SAFETY FEATURES - Safety features include over-charge, over-heat, short circuit and reverse polarity protection.
• TEMPERATURE SENSOR - Temperature sensor allows accurate charging of battery even when cold.
• WALL MOUNTABLE - Compact design with mounting holes for permanent fitting.
• AUTOMATIC MAINTAINING FUNCTION - Once fully charged, battery may be left connected to be automatically conditioned and maintained.
• ADJUSTABLE FLOAT MODES - Optional Float mode from 13.2V, 13.5V and 13.8V so it can be matched to the manufacturer’s guidelines.
• 2 YEAR GUARANTEE*.
• COMPATIBLE BATTERY TYPES - Suitable for charging and maintaining a variety of VRLA, Gel, AGM/EFB, leisure and lithium batteries.
• SAFETY FEATURES - Safety features include over-charge, over-heat, short circuit and reverse polarity protection.
• TEMPERATURE SENSOR - Temperature sensor allows accurate charging of battery even when cold.
• WALL MOUNTABLE - Compact design with mounting holes for permanent fitting.
• AUTOMATIC MAINTAINING FUNCTION - Once fully charged, battery may be left connected to be automatically conditioned and maintained.
• ADJUSTABLE FLOAT MODES - Optional Float mode from 13.2V, 13.5V and 13.8V so it can be matched to the manufacturer’s guidelines.
• 2 YEAR GUARANTEE*.
Spare Parts
Specification & Documents
Specification
| Output: | 12V |
| Zero Volt Charging: | Yes |
| Battery Support/DC Supply Mode: | Yes |
| Supply (Current): | 2.4A |
| Supply (Volage): | 230V |
| Plug Type: | 3-pin |
| Power Supply Cable Length: | 1.65m |
| Cable & Clamp Length: | 1.10m |
| Charger Type:Traditional (T) or Intelligent (HF): | HF |
| Battery Range: | 50-310Ah |
| Max Size Battery (AH) Full charge in 12hrs from Discharged: | 300Ah |
| Output Charge Peak: | 25A |
| Output Start Peak: | N/A |
| Weight: | 1.6kg |
| Type of Battery: | |
| VRLA (Lead Acid): | Yes |
| GEL: | Yes |
| AGM/EFB: | Yes |
| Lithium: | Yes |
| Leisure (Deep Discharged): | Yes |
Cable & Clamp Length: |
1.1m |
Barcode: |
5054630527791 |
Parts Diagram: |
|
Declaration of Conformity: |
|
Instructions: |
