Description

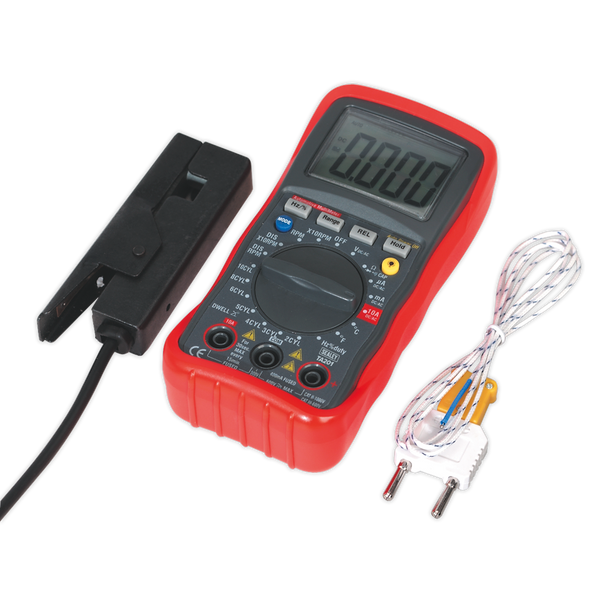

• Compact size meter with 4-digit 22mm, high-contrast LCD display and back light.
• Features auto-ranging, data-hold and auto-power-off functions.
• Includes inductive coupler for fast reading of engine rpm.
• Supplied with probe, crocodile clip and thermocouple leads for easy hook-up.
• Features auto-ranging, data-hold and auto-power-off functions.
• Includes inductive coupler for fast reading of engine rpm.
• Supplied with probe, crocodile clip and thermocouple leads for easy hook-up.
Spare Parts
Specification & Documents
Specification
| Tach (rpm): | 4-Stroke; 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke; 300-4000 (x1)rpm, 300-6000 (x10)rpm |
| Dwell: | 2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°, 10Cyl 0-36° |
| AC Voltage: | 400mV, 4V, 40V, 400V, 600V (Auto-Ranging, except 400mV) |
| DC Voltage: | 400mV, 4V, 40V, 400V, 600V (Auto-Ranging) |
| AC Current: | 400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA) |
| DC Current: | 400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA) |
| Capacitance: | 40nF, 400nF, 4µF, 40µF, 100µF (Auto-Ranging) |
| Frequency: | 4V Range; 5Hz-10kHz, 40 & 400V Ranges; 5Hz-200kHz, 600V Range; 50Hz-1kHz, 400mA Range; 5Hz-5kHz, 10A Range; 5Hz-1kHz |
| Duty Cycle: | 0.1-99.9% |
| Pulse Width: | No |
| Resistance: | 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging) |
| Continuity: | <150Ω |
| Temperature: | -20 to +760°C/-4 to +1400°F |
| IR Temperature: | No |
| Diode Check: | Yes (Typical Test Current 0.3mA) |
| Transistor Test: | No |
| Back Light: | Yes |
| Bar Graph Display: | No |
| Display Hold: | Yes |
| Auto-Ranging: | Yes |
| Inductive Coupler: | Yes |
| PC Interface: | No |
| Digits Height: | 22mm |
| Auto Power Off: | Yes |
| Low Battery Indicator: | Yes |
| Batteries (supplied): | 9V (PP3) |
| Hi-Impact Case: | Yes |
| Size (L x W x D): | 146 x 66.2 x 41.5mm |
| Weight: | 330g |
Nett Weight: |
330g |
Barcode: |
5024209695374 |
Declaration of Conformity: |
|
Safety Data Sheet: |
|
Instructions: |
