Name: 14-Function Digital Automotive Multimeter with Inductive Coupler [TA202]
Brand: Sealey
SKU: TA202
Price: 128.34 GBP
Availability: OutOfStock

14-Function Digital Automotive Multimeter with Inductive Coupler [TA202]

(No reviews yet) Write a Review

Description
Spare Parts
Warranty Information
Specification & Documents

Description

• Extra-large, high-contrast LCD display with 36mm high digital read-out and back light.
• Durable case and integral stand suitable for the toughest workshop conditions.
• Features millisecond pulse-width function for accurate measurement of fuel injection systems.
• Includes auto-ranging, data-hold and auto-power-off.
• Suitable for AC and DC circuits.

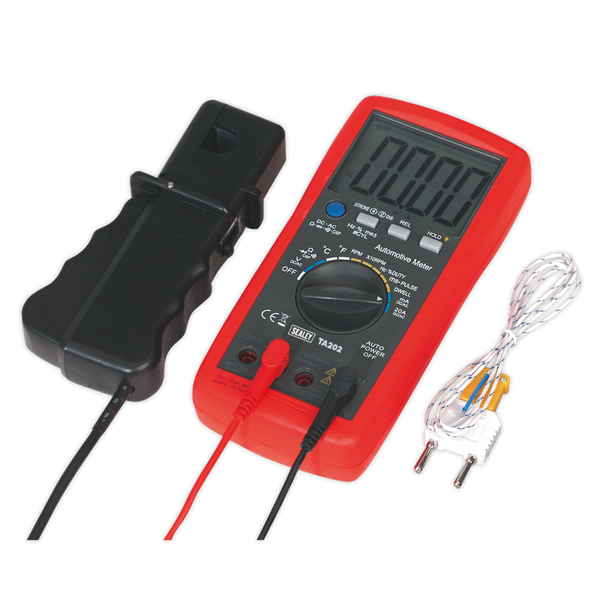

• Supplied with inductive coupler (IC), test probes, thermocouple and storage case.

View AllClose

Spare Parts

Product
Price

Total: items /

Adding your products to cart

View Cart Continue Shopping

Warranty Information

View AllClose

Specification & Documents

Specification

Tach (rpm):	4-Stroke; 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke; 300-4000 (x1)rpm, 300-6000 (x10)rpm
Dwell:	4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
AC Voltage:	400mV, 4V, 40V, 400V, 700V (Auto-Ranging, except 400mV)
DC Voltage:	400mV, 4V, 40V, 400V, 1000V (Auto-Ranging)
AC Current:	400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging for µA & mA)
DC Current:	400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging for µA & mA)
Capacitance:	40nF, 400nF, 4µF, 40µF, 100µF (Auto-Ranging)
Frequency:	5Hz, 50Hz, 500Hz, 5kHz, 50kHz, 500kHz, 10MHz (Auto-Ranging)
Duty Cycle:	0.1-99.9%
Pulse Width:	1-10ms
Resistance:	400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging)
Continuity:	<150Ω
Temperature:	-20 to +760°C/-4 to +1400°F
IR Temperature:	No
Diode Check:	Yes (Typical Test Current 0.3mA)
Transistor Test:	No
Back Light:	Yes
Bar Graph Display:	No
Display Hold:	Yes
Auto-Ranging:	Yes
Inductive Coupler:	Yes
PC Interface:	No
Digits Height:	36mm
Auto Power Off:	Yes
Low Battery Indicator:	Yes
Batteries (supplied):	9V (PP3)
Hi-Impact Case:	Yes
Size (L x W x D):	195 x 92 x 36mm
Weight:	394g

Nett Weight:	394g
Barcode:	5024209695381
Declaration of Conformity:	View Document
Safety Data Sheet:	View Document
Instructions:	View Document
