Description
• Air Displacement: 20.9cfm(591L/min).
• Maximum Free Air Delivery: 15.2cfm(430L/min).
• Maximum Pressure: 145psi(10bar).

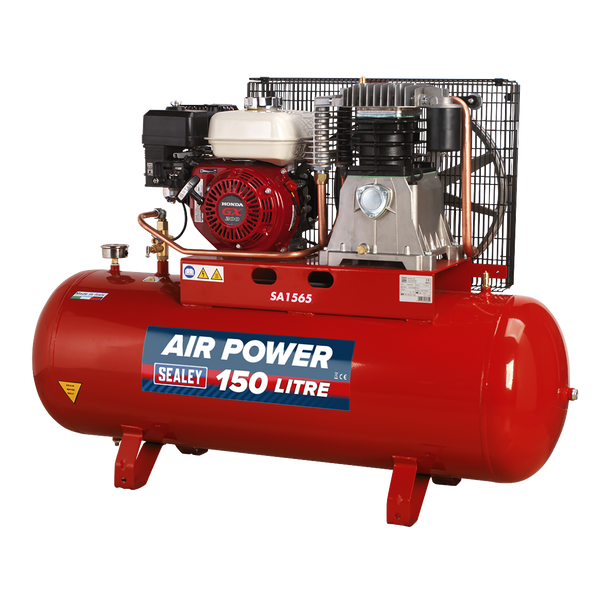

• Static compressor with Honda GX200 6.5hp unit coupled to heavy-duty, 2-stage twin piston, cast iron pump.
• Pump has heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.
• Heavy-duty drive guard protects belt and flywheel that is designed to also force air over the pump to aid cooling.
• Supplied with full CE certification, test certificates and operating/maintenance manual.
• Features gauge and air outlet.
• Runs on unleaded fuel.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• Maximum Free Air Delivery: 15.2cfm(430L/min).
• Maximum Pressure: 145psi(10bar).
• Static compressor with Honda GX200 6.5hp unit coupled to heavy-duty, 2-stage twin piston, cast iron pump.
• Pump has heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.
• Heavy-duty drive guard protects belt and flywheel that is designed to also force air over the pump to aid cooling.
• Supplied with full CE certification, test certificates and operating/maintenance manual.
• Features gauge and air outlet.
• Runs on unleaded fuel.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Spare Parts
Specification & Documents
Noise Level: |
97dB(A) |
Oil Capacity: |
1.2L |
Outlet: |
1/2"BSP Female Tap |
Receiver Capacity: |
150L |
Size (W x D x H): |
1360 x 540 x 1110mm |
Nett Weight: |
103kg |
Motor Type: |
Honda GX200 Petrol |
Motor Output: |
6.5hp |
Maximum Pressure: |
145psi(10bar) |
Maximum Free Air Delivery cfm(L/min): |
15.2(430) |
Air Displacement cfm(L/min): |
20.9(591) |
Barcode: |
5051747570351 |
Parts Diagram: |
|
Declaration of Conformity: |
|
Instructions: |
|
Safety Data Sheet: |
