Description
• Air Displacement: 6.8cfm(193L/min).
• Maximum Free Air Delivery: 4.6cfm(130L/min).
• Maximum Pressure: 116psi(8bar).
• Aluminium cylinder head with cast iron cylinder gives added resistance to wear.
• Copper wound motor provides longer lasting performance.
• Suitable for general-purpose workshop applications.
• Pump head directly coupled to heavy-duty induction motor for reliable and quiet operation.
• Fitted with fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures.

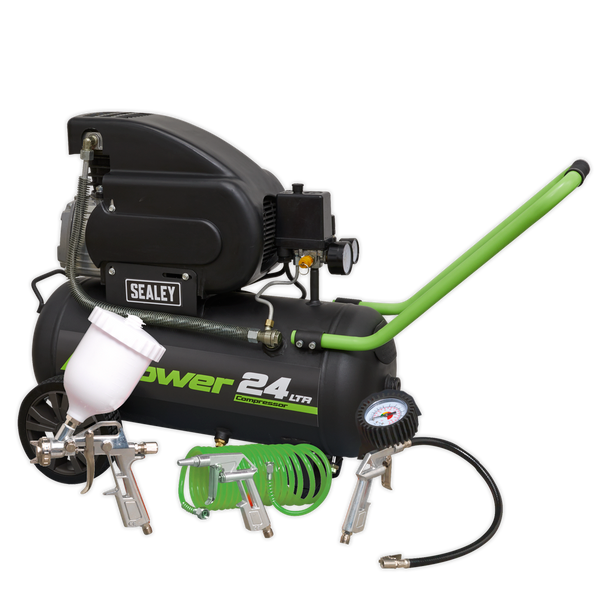

• Includes 4pc multipurpose air accessory kit.
• Fitted with 3-pin plug.
• Maximum Free Air Delivery: 4.6cfm(130L/min).
• Maximum Pressure: 116psi(8bar).
• Aluminium cylinder head with cast iron cylinder gives added resistance to wear.
• Copper wound motor provides longer lasting performance.
• Suitable for general-purpose workshop applications.
• Pump head directly coupled to heavy-duty induction motor for reliable and quiet operation.
• Fitted with fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures.
• Includes 4pc multipurpose air accessory kit.
• Fitted with 3-pin plug.
Spare Parts
Specification & Documents
Specification
| Motor Output: | 2hp |
| Voltage/Phase: | 230v - 1ph |
| Minimum Rated Supply: | 13A |
| Air Displacement cfm(L/min): | 6.8(193) |
| Maximum Free Air Delivery cfm(L/min): | 4.6(130) |
| Maximum Pressure: | 116psi(8bar) |
| Receiver Capacity: | 24L |
| Outlet Fitting: | Quick Release Coupling |
| Dimensions (W x D x H): | 600 x 290 x 585mm |
| Air Accessory Kit Contents: | Gravity Feed Spray Gun, Tyre Inflator, Air Blow Gun, 5m Air Hose 1/4"BSP |
| Weight: | 26.5kg |
Nett Weight: |
27kg |
Barcode: |
5054511527858 |
Declaration of Conformity: |
|
Parts Diagram: |
