Description

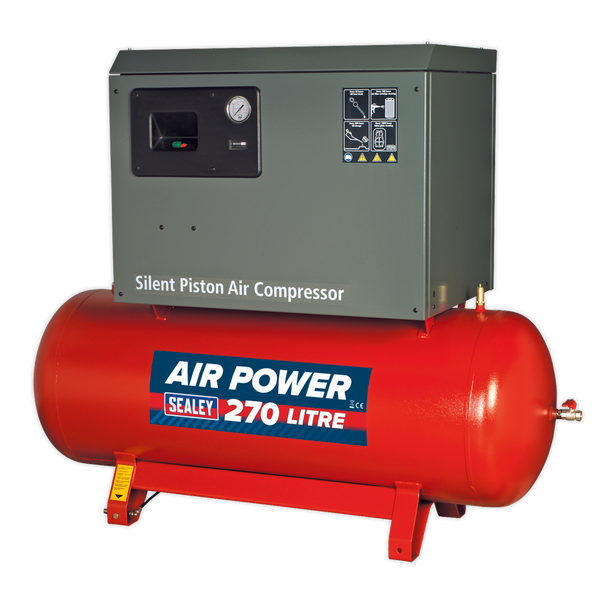

• Maximum Free Air Delivery: 23.6cfm(668L/min).
• Maximum Pressure: 145psi(10bar).
• Heavy-duty low noise compressor suitable for garage, bodyshop and industrial applications.
• Fitted with cast iron cylinder head enabling slower revving and improved pump life.
• Fully enclosed, insulated design gives quiet running at just 66dB(A) (at 1m) and protects vital components from damage.
• Features fully automatic pressure cut-out switch and tank pressure gauge.
• Heavy-duty 3-phase electric motor with soft start feature.
• Control box features tachometer for monitoring use and optimizing service times.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Spare Parts
Specification & Documents
Air Displacement cfm(L/min): |
32.6(924) |
Maximum Free Air Delivery cfm(L/min): |
23.6(668) |
Maximum Pressure: |
145psi(10bar) |
Minimum Rated Supply: |
32A |
Motor Output: |
7.5hp |
Noise Level: |
66dB(A) |
Oil Capacity: |
1.57L |
Outlet: |
1/2"BSP Female Tap |
Phase: |
3ph |
Receiver Capacity: |
270L |
Size (W x D x H): |
1550 x 600 x 1260mm |
Speed: |
1280rpm |
Supply: |
400V |
Nett Weight: |
213kg |
Barcode: |
5051747570368 |
Parts Diagram: |
|
Declaration of Conformity: |
|
Instructions: |
|
Safety Data Sheet: |
