Description

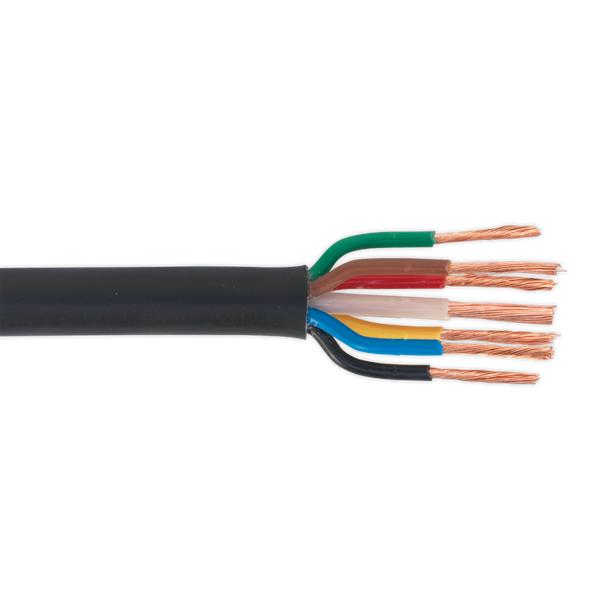

• Thin wall automotive cable.
• Seven (6 + 1) core conductor.
• Core Colours: Black, Blue, Brown, Green, Red, White, Yellow.
• Cross Sections: 6 x 1mm², 1 x 2mm².
• Current Ratings: 16.5A, 25A.
• RoHS Compliant.
• Seven (6 + 1) core conductor.
• Core Colours: Black, Blue, Brown, Green, Red, White, Yellow.
• Cross Sections: 6 x 1mm², 1 x 2mm².
• Current Ratings: 16.5A, 25A.
• RoHS Compliant.
Specification & Documents
Amps: |
16.5A, 25A |
Cable Type: |
Thin Wall |
Colour: |
Sheath; Black, Core; Black, Blue, Brown, Green, Red, White, Yellow |
Conductor Specification: |
6 x 32/0.20mm, 1 x 28/0.30mm |
Core Type: |
6 + 1 Core |
Length: |
30m |
Section: |
6 x 1mm², 1 x 2mm² |
Size (OD): |
n/a |
Temperature Range: |
n/a |
Nett Weight: |
3.97kg |
Barcode: |
5054511017595 |
