Description
• Air Displacement: 15.8cfm(447L/min).
• Maximum Free Air Delivery: 11.5cfm(326L/min).
• Maximum Pressure: 145psi(10bar).

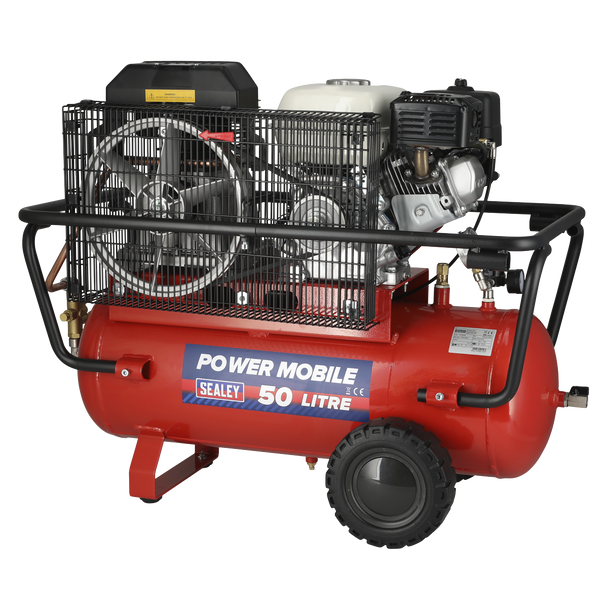

• Fully mobile compressor with Honda GX160 5.5hp power unit coupled to heavy-duty, twin piston, cast iron pump.
• Fitted with heavy-duty rubber transport wheels and protected by 360° roll cage.
• Heavy-duty drive guard protects belt and flywheel that is designed to also force air over the pump to aid cooling.
• Supplied with full CE certification, test certificates and operating/maintenance manual.
• Features twin gauges and air outlet regulator.
• Runs on unleaded fuel.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• Maximum Free Air Delivery: 11.5cfm(326L/min).
• Maximum Pressure: 145psi(10bar).
• Fully mobile compressor with Honda GX160 5.5hp power unit coupled to heavy-duty, twin piston, cast iron pump.
• Fitted with heavy-duty rubber transport wheels and protected by 360° roll cage.
• Heavy-duty drive guard protects belt and flywheel that is designed to also force air over the pump to aid cooling.
• Supplied with full CE certification, test certificates and operating/maintenance manual.
• Features twin gauges and air outlet regulator.
• Runs on unleaded fuel.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Spare Parts
Specification & Documents
Air Displacement cfm(L/min): |
15.8(447) |
Maximum Free Air Delivery cfm(L/min): |
11.5(326) |
Maximum Pressure: |
145psi(10bar) |
Motor Output: |
5.5hp |
Motor Type: |
Honda GX160 Petrol |
Noise Level: |
76dB(A) |
Oil Capacity: |
0.72L |
Outlet: |
1/4"BSP & 3/8"BSP Female Tap |
Receiver Capacity: |
50L |
Size (W x D x H): |
970 x 470 x 760mm |
Nett Weight: |
67kg |
Barcode: |
5051747521193 |
Declaration of Conformity: |
|
Parts Diagram: |
|
Safety Data Sheet: |
|
Instructions: |
