Description

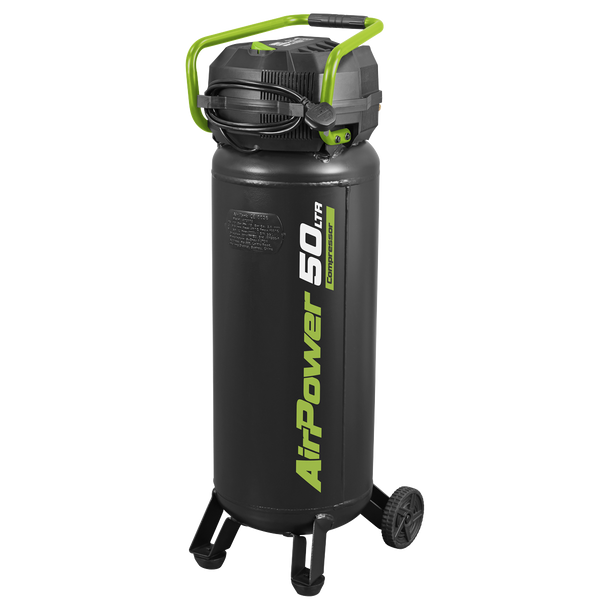

• SPACE SAVING - Vertical tank saves floor space which makes it perfect for small workshops.
• OIL FREE - The benefits of oil free compressors include: Easy maintenance, reduced noise levels, better efficiency, quieter when running and no oil contamination in the air supply.
• ALUMINIUM CONSTRUCTION - Aluminium cylinder head with cast iron cylinder gives added resistance to wear.
• AUTOMATIC CUT-OUT- Fitted with fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures.
• PERFECT FOR WORKSHOPS - Suitable for all general-purpose workshop applications.
• OIL FREE - The benefits of oil free compressors include: Easy maintenance, reduced noise levels, better efficiency, quieter when running and no oil contamination in the air supply.
• ALUMINIUM CONSTRUCTION - Aluminium cylinder head with cast iron cylinder gives added resistance to wear.
• AUTOMATIC CUT-OUT- Fitted with fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures.
• PERFECT FOR WORKSHOPS - Suitable for all general-purpose workshop applications.
Spare Parts
Specification & Documents
Air Displacement cfm(L/min): |
6.35(180) |
Maximum Free Air Delivery cfm(L/min): |
3.17(90) |
Maximum Pressure: |
145psi(10bar) |
Minimum Rated Supply: |
13A |
Motor Output: |
2hp |
Noise Level: |
96/85dB(A) |
Outlet: |
Quick Release Coupling |
Phase: |
1ph |
Receiver Capacity: |
50L |
Size (W x D x H): |
370 x 355 x 1340mm |
Speed: |
3500rpm |
Supply: |
230V/13A |
Nett Weight: |
25kg |
Barcode: |
5054630381409 |
Declaration of Conformity: |
|
Instructions: |
|
Parts Diagram: |
