Description

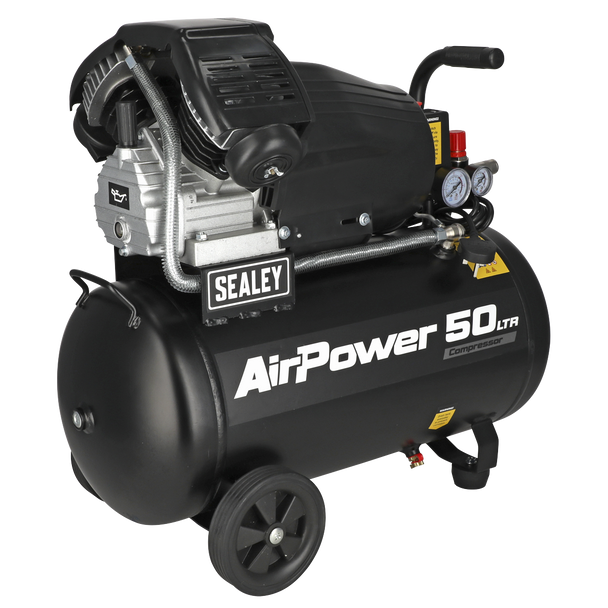

• ALUMINIUM CONSTRUCTION - V-Twin pump with aluminium cylinder head with cast iron cylinder gives added resistance to wear.
• AUTOMATIC CUT-OUT- Fitted with fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures.
• RELIABLE AND QUIET - Pump head directly coupled to heavy-duty induction motor for reliable and quiet operation.
• HIGH QUALITY TANK - Precision welded receiver tank manufactured to meet Pressure Vessel Directive.
• PERFECT FOR WORKSHOPS - Suitable for all general-purpose workshop applications.
• AUTOMATIC CUT-OUT- Fitted with fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures.
• RELIABLE AND QUIET - Pump head directly coupled to heavy-duty induction motor for reliable and quiet operation.
• HIGH QUALITY TANK - Precision welded receiver tank manufactured to meet Pressure Vessel Directive.
• PERFECT FOR WORKSHOPS - Suitable for all general-purpose workshop applications.
Spare Parts
Specification & Documents
Air Displacement cfm(L/min): |
12.4cfm(350L/min) |
Maximum Free Air Delivery cfm(L/min): |
7cfm(198L/min) |
Maximum Pressure: |
116psi(8bar) |
Minimum Rated Supply: |
13A |
Motor Output: |
3hp |
Noise Level: |
97dB |
Oil Capacity: |
350ml |
Outlet: |
Quick Release Coupling |
Phase: |
1ph |
Receiver Capacity: |
50L |
Size (W x D x H): |
705 x 335 x 610mm |
Supply: |
230V/13A |
Nett Weight: |
38.8kg |
Barcode: |
5054630386091 |
Safety Data Sheet: |
|
Parts Diagram: |
|
Declaration of Conformity: |
|
Instructions: |
