Description

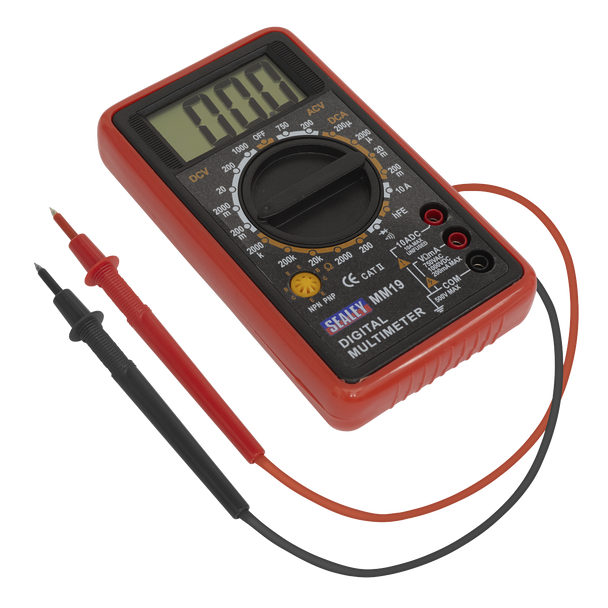

• High quality general-purpose multimeter with a large (46 x 25mm), clear and easy-to-read LCD display.
• Supplied with test leads.
• Measures: - DC Current - Resistance - Audible Continuity - Diode/Transistor Verification Mode.
• Supplied with test leads.
• Measures: - DC Current - Resistance - Audible Continuity - Diode/Transistor Verification Mode.
Specification & Documents
Specification
| AC Voltage (Accuracy): | 200V, 750V (±2%) |
| DC Voltage (Accuracy): | 200mV, 2000mV, 20V, 200V (±1.5%), 1000V (±1.8%) |
| AC Current (Accuracy): | No |
| DC Current (Accuracy): | 200µA, 2000µA, 20mA (±2%), 200mA (±2.2%), 10A (±2%) |
| Resistance (Accuracy): | 200Ω, 2000Ω, 20kΩ, 200kΩ (±1.8%), 2000kΩ (±2%) |
| Capacitance (Accuracy): | No |
| Temperature (Accuracy): | No |
| Frequency (Accuracy): | No |
| Duty Cycle: | No |
| Continuity Audible: | Yes |
| Diode Test: | Yes (Forward Voltage Drop) |
| Transistor Test: | Yes (hFE @ 10µA & 3Vce) |
| Hi-Impact Rubber Case: | Yes |
| Digits x Height: | 3.5 x 22mm |
| Low Battery Indicator: | No |
| Battery (Supplied): | 1 x 9V |
| Information: | - |
| Size (L x W x D): | 130 x 70 x 14mm |
| Weight: | 240g |
| Conformity: | IEC 1010 |
Nett Weight: |
240g |
Barcode: |
5024209250658 |
