Description

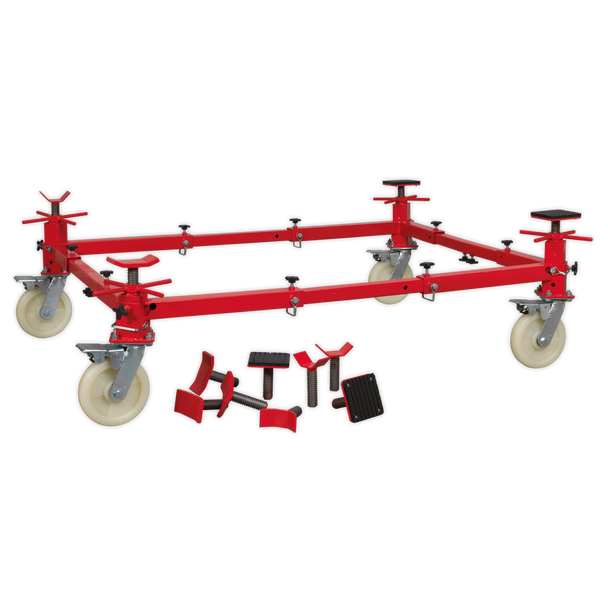

• DURABLE - Heavy-duty steel frame suitable for supporting partly dismantled or badly damaged vehicles.
• EV BATTERIES - Dolly works perfectly to move and support electric battery units.
• SAFE - Enables easy movement around workshop or bodyshop.
• ADJUSTABLE - Frame allows you to change the length and width as required.
• MULTIPLE DIFFERENT SUPPORTS - Three types of height-adjustable and interchangeable supports, rubber support pads, shallow and deep crutches.
• LARGE LOCKING CASTORS - Fitted with four Ø200mm nylon locking castors.
• EV BATTERIES - Dolly works perfectly to move and support electric battery units.
• SAFE - Enables easy movement around workshop or bodyshop.
• ADJUSTABLE - Frame allows you to change the length and width as required.
• MULTIPLE DIFFERENT SUPPORTS - Three types of height-adjustable and interchangeable supports, rubber support pads, shallow and deep crutches.
• LARGE LOCKING CASTORS - Fitted with four Ø200mm nylon locking castors.
Spare Parts
Specification & Documents
Capacity: |
900kg |
Maximum Height: |
520mm |
Maximum Length: |
1750mm |
Maximum Width: |
1280mm |
Minimum Height: |
400mm |
Minimum Length: |
1150mm |
Minimum Width: |
680mm |
Nett Weight: |
72.24kg |
Barcode: |
5054511144109 |
Instructions: |
|
Parts Diagram: |
