Description

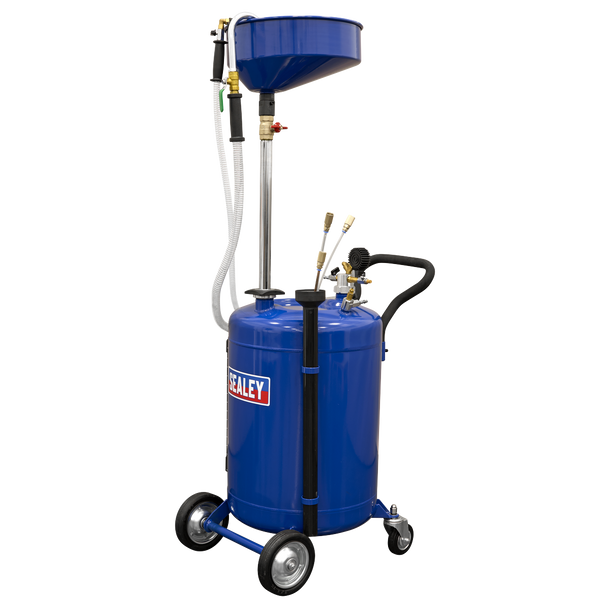

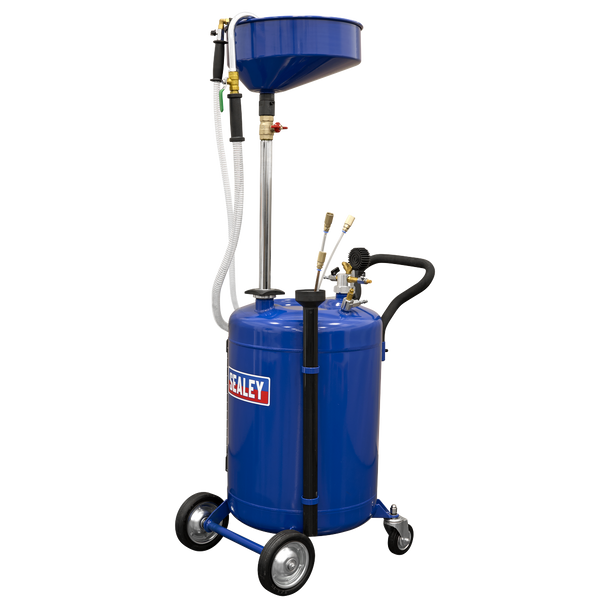

• Steel fabricated 90L reservoir.
• Height-adjustable steel drain pan, fitted with grid filter.
• Gravity feed reservoir with air discharge hose.
• Includes quick release oil dipstick probes, plus adaptors for BMW and VW, powered by venturi suction pump.
• Fitted with reservoir oil level indicator tube.
• Heavy-duty wheels and castors for easy mobility.
• Min./Max. Pan Height: 1300/1750mm.
• Height-adjustable steel drain pan, fitted with grid filter.
• Gravity feed reservoir with air discharge hose.
• Includes quick release oil dipstick probes, plus adaptors for BMW and VW, powered by venturi suction pump.
• Fitted with reservoir oil level indicator tube.
• Heavy-duty wheels and castors for easy mobility.
• Min./Max. Pan Height: 1300/1750mm.
Spare Parts
Specification & Documents
Air Discharge: |
Yes |
Air Inlet Size: |
1/4" |
Capacity: |
90L |
Gravity Discharge: |
No |
Gravity Feed: |
Yes |
Maximum Height to Pan: |
1750mm |
Minimum Height to Pan: |
1300mm |
Pump Discharge: |
No |
Suction Probe: |
Yes |
Temperature Range: |
<90°C |
Nett Weight: |
26kg |
Maximum Inlet Pressure: |
7bar |
Oil Discharge Pressure (bar): |
0.5bar |
Collection Bowl Capacity (L): |
18L |
Barcode: |
5024209287623 |
Parts Diagram: |
|
Instructions: |
