Description

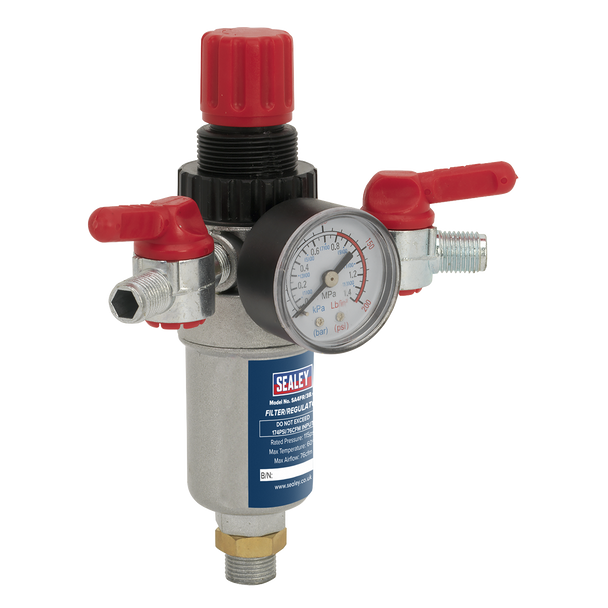

• Heavy-duty aluminium alloy valve assembly with integral filter and water trap.
• Airflow control knob can be locked in position to prevent accidental adjustment of pressure.
• Features large gauge marked in psi, bar and MPa.
• Individual compressed air outlets are fitted with shut-off valve.
• Suitable for direct mounting onto compressors or can be plumbed into air line runs.
• Max. Air Input: 174psi, Max. Air Output: 174psi, Safe Working Pressure: 0-115psi.
• Max. Airflow: 76cfm, Inlet Thread: 3/8"BSP, Outlet Thread: 1/4"BSP.
• Outlet quantity: 2.
• Airflow control knob can be locked in position to prevent accidental adjustment of pressure.
• Features large gauge marked in psi, bar and MPa.
• Individual compressed air outlets are fitted with shut-off valve.
• Suitable for direct mounting onto compressors or can be plumbed into air line runs.
• Max. Air Input: 174psi, Max. Air Output: 174psi, Safe Working Pressure: 0-115psi.
• Max. Airflow: 76cfm, Inlet Thread: 3/8"BSP, Outlet Thread: 1/4"BSP.
• Outlet quantity: 2.
Specification & Documents
Inlet Size: |
3/8"BSP |
Maximum Air Input: |
174psi |
Maximum Air Output: |
174psi |
Maximum Airflow: |
76cfm |
Outlet Size: |
1/4"BSP |
Safe Working Pressure: |
<115psi |
Nett Weight: |
0.45kg |
Outlet Quantity: |
2 |
Barcode: |
5024209141918 |
Instructions: |
