Description

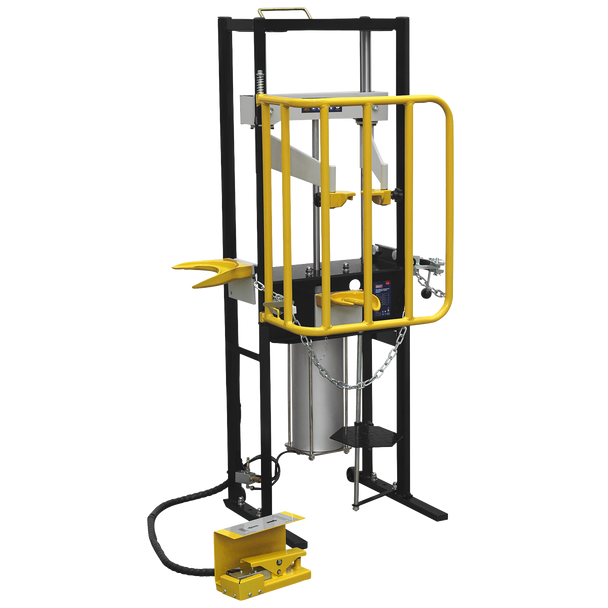

• FAST AND SAFE – Designed for the fast and safe compression of road springs, fitted with safety locking guard.
• 1000KG CAPACITY – Air operated unit with 1000kg capacity.
• INTERCHANGABLE YOKES – Supplied with two interchangeable plastic-coated yokes and a suspension strut clamp.
• WIDE USE OF APPLICATIONS – Fits a wide range of spring configurations and diameters.
• FEATURES STRUT LOCATING PLATFORM – For easy movement of the suspension strut to avoid unnecessary lifting.
• 1000KG CAPACITY – Air operated unit with 1000kg capacity.
• INTERCHANGABLE YOKES – Supplied with two interchangeable plastic-coated yokes and a suspension strut clamp.
• WIDE USE OF APPLICATIONS – Fits a wide range of spring configurations and diameters.
• FEATURES STRUT LOCATING PLATFORM – For easy movement of the suspension strut to avoid unnecessary lifting.
Spare Parts
Specification & Documents
Specification
| Maximum Load: | 1000kg |
| Upper Yoke Travel: | 420mm |
| Spring Diameter: | Ø102-165mm |
| Actuation: | Foot Pedal |
| Maximum Air Pressure: | 116psi(8bar) |
| Essential Max. Allowable Limit: | 8bar |
| Essential Min. Allowable Limit: | 6.5bar |
| Nominal Size for Piping: | Inner: Ø6mm Outer: Ø8mm |
| Safety Device Set Pressure: | 8bar |
| Output of the Pressure Equipment: | 6.5-8bar |
Nett Weight: |
63.4kg
|
Barcode: |
5054630566677 |
