Description

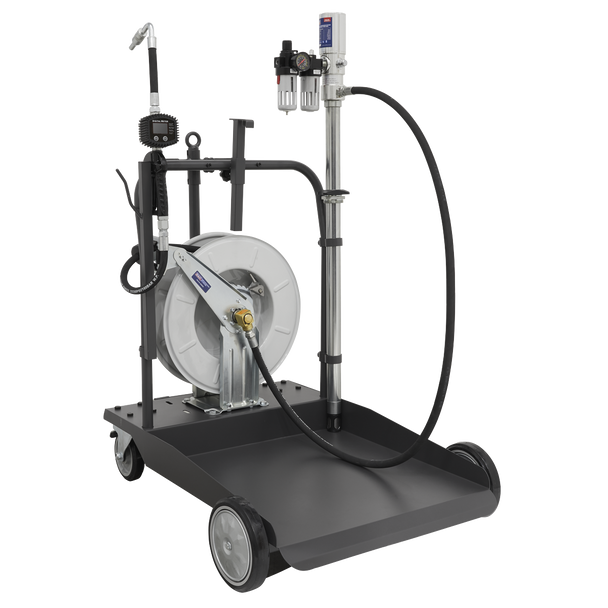

• Mobile oil dispensing unit with air operated 3:1 double acting pump for barrels or tanks with 2"BSP fittings.
• Pump is supplied with air management system connected to a 940mm rigid suction probe with non-return valve.
• Features trolley, 10m retractable hose reel (Model No. AK4567D supplied) and digital oil meter (Model No. AK4565D supplied).
• Suitable for use with 205L drums and engine, hydraulic, synthetic, gear and transmission oils up to SAE150.
• Pump is supplied with air management system connected to a 940mm rigid suction probe with non-return valve.
• Features trolley, 10m retractable hose reel (Model No. AK4567D supplied) and digital oil meter (Model No. AK4565D supplied).
• Suitable for use with 205L drums and engine, hydraulic, synthetic, gear and transmission oils up to SAE150.
Spare Parts
Specification & Documents
Maximum Air Pressure: |
115psi |
Maximum Flow Rate: |
12L/min |
Maximum Output Pressure: |
350psi |
Maximum Trolley Capacity: |
220kg |
Maximum Viscosity: |
SAE150 |
Outlet Size: |
1/2"BSP |
Pump Ratio: |
3:1 |
Recommended Air Pressure: |
70psi |
Nett Weight: |
59.40kg |
Barcode: |
5054630037443 |
Safety Data Sheet: |
|
Parts Diagram: |
|
Declaration of Conformity: |
