Description

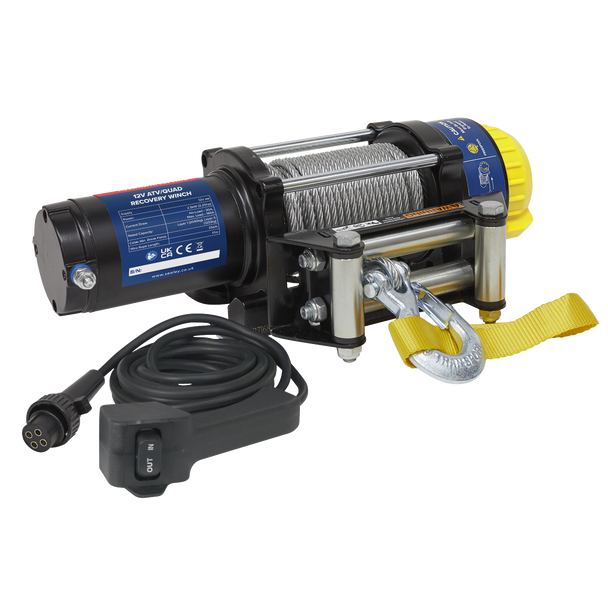

• Suitable for ATV and quad bike mounting, these high-speed winches offer a combination of performance with durability.
• High power 2.5kW (3.25hp) 12V DC permanent magnet type motor gives first class pulling power.
• All-metal chassis for long-life and low maintenance.
• Motor can easily be rotated 90° to meet various wiring and mounting requirements.
• Patented unique automatic spring brake, reliable in full load operation.
• High quality wire rope feeds through 4-way roller fairlead for even distribution of cable onto drum.
• Cable Length: 17m.
• Line Pull*: 2040kg(4500lb).
• IP67 rated.
• Gear Ratio: 180:1. *Performance quoted at first layer of cable on drum.
• High power 2.5kW (3.25hp) 12V DC permanent magnet type motor gives first class pulling power.
• All-metal chassis for long-life and low maintenance.
• Motor can easily be rotated 90° to meet various wiring and mounting requirements.
• Patented unique automatic spring brake, reliable in full load operation.
• High quality wire rope feeds through 4-way roller fairlead for even distribution of cable onto drum.
• Cable Length: 17m.
• Line Pull*: 2040kg(4500lb).
• IP67 rated.
• Gear Ratio: 180:1. *Performance quoted at first layer of cable on drum.
Spare Parts
Specification & Documents
Consumable Parts: |
ATV2040.WR - Wire Rope (Ø5.4mm x 17m) for ATV2040, ATV2040.DR - Dyneema Rope (Ø5.5mm x 17m) for ATV2040 |
Current Draw: |
No-Load - 30A, Maximum Load - 185A |
Gear Ratio: |
180:1 |
Line Pull*: |
2040kg(4500lb) |
Line Speed*: |
No Load - 4.5m/min, Maximum Load - 1.3m/min |
Motor Power: |
2.5kW(3.25hp) |
Note: |
*Performance quoted at first layer of cable on drum |
Supply: |
12V |
Nett Weight: |
13.9kg |
Wire Rope Diameter: |
5.4mm |
Wire Rope Length: |
17m |
Rated Capacity: |
Layer 1: 2043kg, Layer 4: 1234kg |
Barcode: |
5054511366297 |
Declaration of Conformity: |
|
Instructions: |
|
Parts Diagram: |
