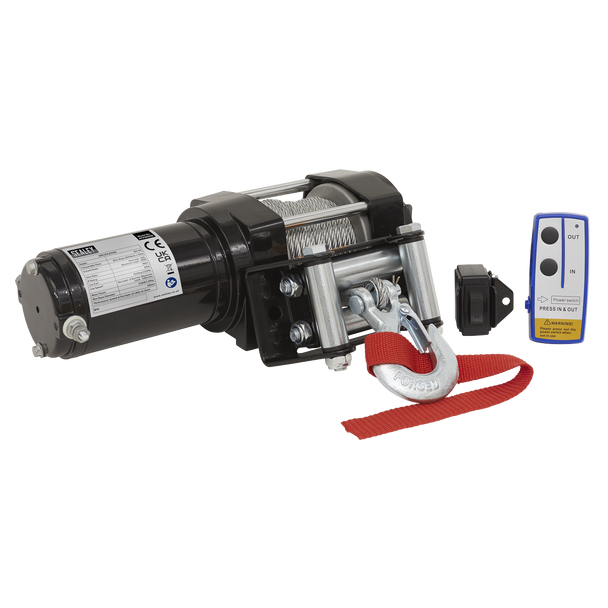

Description
• ATV – Perfect for mounting an ATV.
• 3-STAGE – Use a 3-Stage planetary gearing mechanism.
• 12 VOLT – 1.2hp Permanent magnet DC powered motor.
• CLUTCH – Features a pull and turn clutch.
• 4-WAY – Roller fairlead for even distribution of cable onto the drum.
• WIRELESS – Remote included for use at safe distances.
• 3-STAGE – Use a 3-Stage planetary gearing mechanism.
• 12 VOLT – 1.2hp Permanent magnet DC powered motor.
• CLUTCH – Features a pull and turn clutch.
• 4-WAY – Roller fairlead for even distribution of cable onto the drum.
• WIRELESS – Remote included for use at safe distances.
Spare Parts
Specification & Documents
Consumable Parts: |
Wire Rope (Ø4.8mm x 12m) |
Current Draw: |
No-Load - 12A, Maximum Load - 118A |
Gear Ratio: |
166:1 |
Line Pull*: |
1000kg/2200lb |
Line Speed*: |
No Load - 3.3m/min, Maximum Load - 0.8m/min |
Motor Power: |
0.9kW/1.25hp |
Note: |
*Performance quoted at first layer of cable on drum. |
Supply: |
12V |
Nett Weight: |
8.5kg |
Wire Rope Diameter: |
Ø4.8mm |
Barcode: |
5054630071256 |
Declaration of Conformity: |
|
Instructions: |
|
Parts Diagram: |
