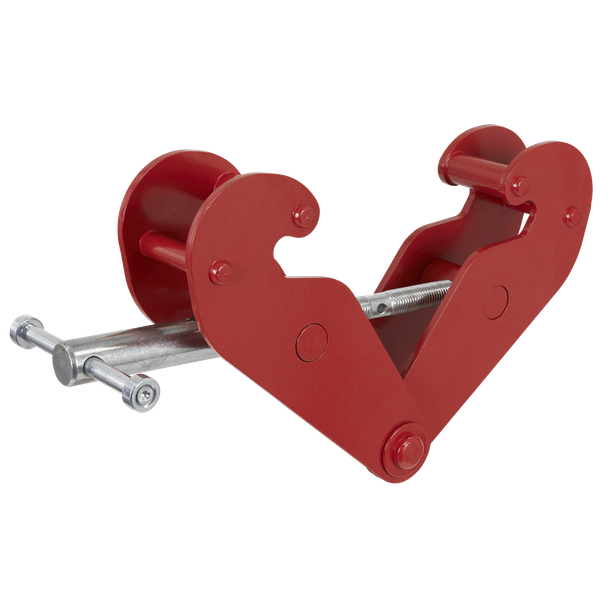

Description
• Suitable for semi-permanent attachment to steel beams and acts as a lifting point for chain blocks, hoists and lifting tackle.
• The clamp may also be used for lifting and transfer of steel beams and as a pulling clamp.
• Low profile afforded by integral pivot/lifting point.
• The clamp may also be used for lifting and transfer of steel beams and as a pulling clamp.
• Low profile afforded by integral pivot/lifting point.
Specification & Documents
Adjustable Beam Width: |
75-220mm |
Capacity: |
1000kg |
Dimensions: |
(A) - 260mm, (B) - 180-360mm, (C) - 64mm, (D) - 5mm, (E) - 215mm, (F) - 102-155mm, (G) - 25mm, (H) - Ø22mm |
Note: |
Refer to catalogue for diagram. |
Nett Weight: |
4.2kg |
Barcode: |
5024209121392 |
Declaration of Conformity: |
|
Instructions: |
