Description

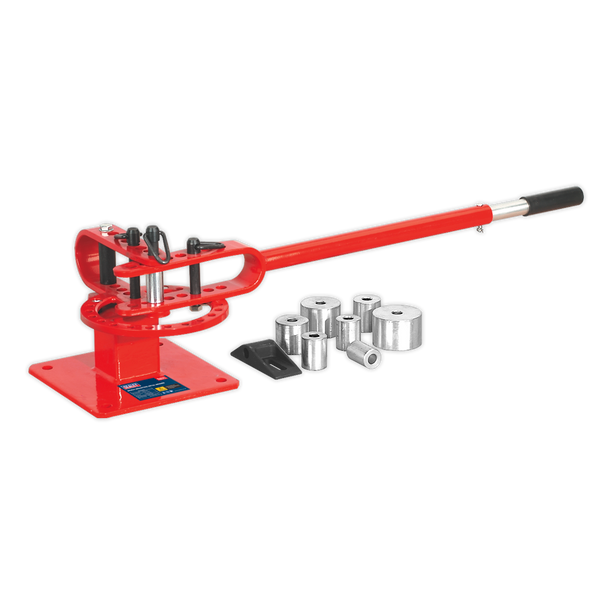

• Manually operated, bench mounting metal bender.
• Capable of producing radiused and angled bends in strips up to 50mm wide and radiused bends in round/square stock up to 16mm diameter/side.
• Supplied with seven dies, 1" to 3".
• Capable of producing radiused and angled bends in strips up to 50mm wide and radiused bends in round/square stock up to 16mm diameter/side.
• Supplied with seven dies, 1" to 3".
Spare Parts
Specification & Documents
Bending Capacity (Angle Attachment): |
3/16" Flat Mild Steel; <2" Wide, 1/4" Flat Mild Steel; <1-1/4" Wide |
Bending Capacity (Die): |
Flat Material; <5/16" x 2", Square or Round Material; <5/8" |
Die Diameters: |
1", 1-1/4", 1-1/2", 1-3/4", 2", 2-1/2", 3" |
Nett Weight: |
17.00kg |
Barcode: |
5054511342123 |
Instructions: |
|
Parts Diagram: |
