Description

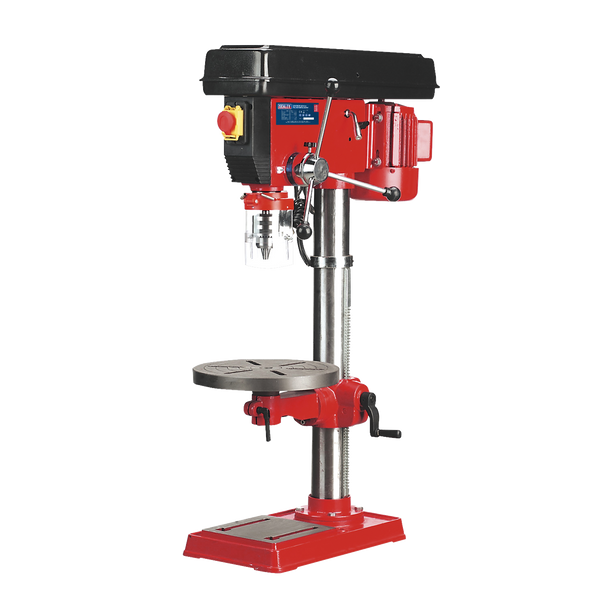

• One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications.
• Meets Safety of Machinery (Safety) Directives 1992 (and amendments).
• Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments.
• Model No. GDM50B and up have Morse taper spindle housings for taking taper shank drill bits.
• All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.
• All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
• Mortise attachment available, order Model No. MA10.
• 16mm(5/8") Capacity chuck No. 2MT.
• Height: 1070mm.
• Spindle Centre to Column: 178mm.
• Motor Power: 450W, Input Power: 650W.
• Column Diameter: 80mm.
• Spindle Travel: 80mm.
• Weight: 60kg.
• Meets Safety of Machinery (Safety) Directives 1992 (and amendments).
• Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments.
• Model No. GDM50B and up have Morse taper spindle housings for taking taper shank drill bits.
• All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.
• All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
• Mortise attachment available, order Model No. MA10.
• 16mm(5/8") Capacity chuck No. 2MT.
• Height: 1070mm.
• Spindle Centre to Column: 178mm.
• Motor Power: 450W, Input Power: 650W.
• Column Diameter: 80mm.
• Spindle Travel: 80mm.
• Weight: 60kg.
Spare Parts
Specification & Documents
Base Size: |
460 x 275mm |
Collar Diameter: |
60mm |
Column Diameter: |
80mm |
Drilling Capacity (Chuck Size): |
16mm |
Maximum Distance Spindle to Base: |
670mm |
Maximum Distance Spindle to Table: |
480mm |
Motor Power (Start): |
450W(650W) |
Number of Speeds: |
16 |
Optional Accessories: |
GDMX/KC - Keyless Pillar Drill Chuck 16mm |
Overall Height: |
1070mm |
Speed Range: |
120-3000rpm |
Spindle Centre to Column: |
178mm |
Spindle Nose Taper: |
MT2 |
Spindle Travel: |
80mm |
Supply: |
230V |
Swing: |
356mm |
Nett Weight: |
60kg |
Working Base Surface Size: |
200 x 220mm |
Working Table Surface Size: |
Ø310mm |
Barcode: |
5024209365659 |
Declaration of Conformity: |
|
Instructions: |
|
Parts Diagram: |
