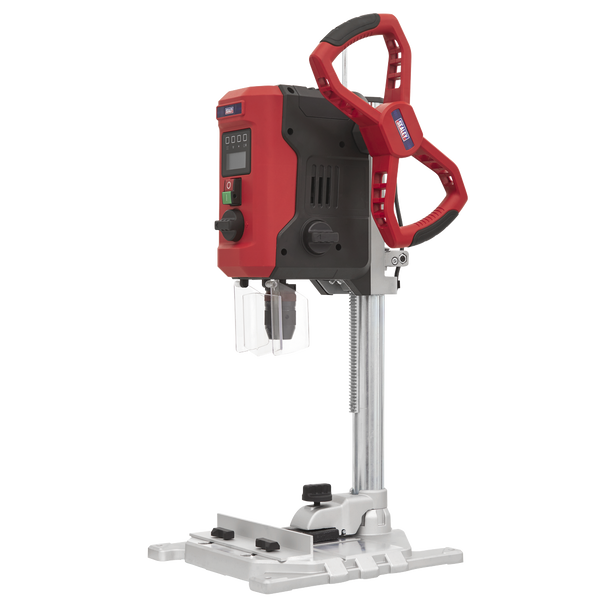

Description
• PRECISION - Good workspace illumination and accuracy thanks to the integrated LED light and laser.
• CLARITY - Easy to read LCD display shows rpm as well as spindle travel for exact drilling depth (100mm stroke).
• CONTROL - Two gears with variable speed adjustment from 170 to 880rpm and 490 to 2600rpm.
• CONVENIENT - Quick release 1.5 to 13mm chuck.
• STURDY - Wide (300 x 330mm) aluminium base gives increased stability and is corrosion-free.
• EXACT - Parallel workpiece guide makes repeated drilling of large surfaces along edge more precise.
• POSITIVE - Rubber grip on stylish handle design gives great control during repeated use.
• INTERGRATED LASER - Ideal for easy and precise drilling.
• INTERGRATED LED - Creates perfect illumination.
• DIGITAL DISPLAY - For accurate drilling.
• CLARITY - Easy to read LCD display shows rpm as well as spindle travel for exact drilling depth (100mm stroke).
• CONTROL - Two gears with variable speed adjustment from 170 to 880rpm and 490 to 2600rpm.
• CONVENIENT - Quick release 1.5 to 13mm chuck.
• STURDY - Wide (300 x 330mm) aluminium base gives increased stability and is corrosion-free.
• EXACT - Parallel workpiece guide makes repeated drilling of large surfaces along edge more precise.
• POSITIVE - Rubber grip on stylish handle design gives great control during repeated use.
• INTERGRATED LASER - Ideal for easy and precise drilling.
• INTERGRATED LED - Creates perfect illumination.
• DIGITAL DISPLAY - For accurate drilling.
Spare Parts
Specification & Documents
Base Size: |
330mm x 300mm |
Collar Diameter: |
Ø43mm |
Column Diameter: |
Ø46mm |
Drilling Capacity (Chuck Size): |
13mm |
Integral Work Light: |
Yes, Including Laser Guide. |
Maximum Distance Spindle to Base: |
280mm |
Maximum Distance Spindle to Table: |
N/A |
Motor Power (Start): |
720W(900W) |
Number of Speeds: |
2 Variable Speed Range : First : 170-880/min. Second : 490-2600/min |
Optional Accessories: |
N/A |
Overall Height: |
760mm |
Speed Range: |
170-880/min, 490-2600/min |
Spindle Centre to Column: |
125mm |
Spindle Nose Taper: |
N/A |
Spindle Travel: |
100mm |
Supply: |
230V |
Swing: |
250mm |
Nett Weight: |
10.2kg |
Working Table Surface Size: |
N/A |
Barcode: |
5054630276880 |
