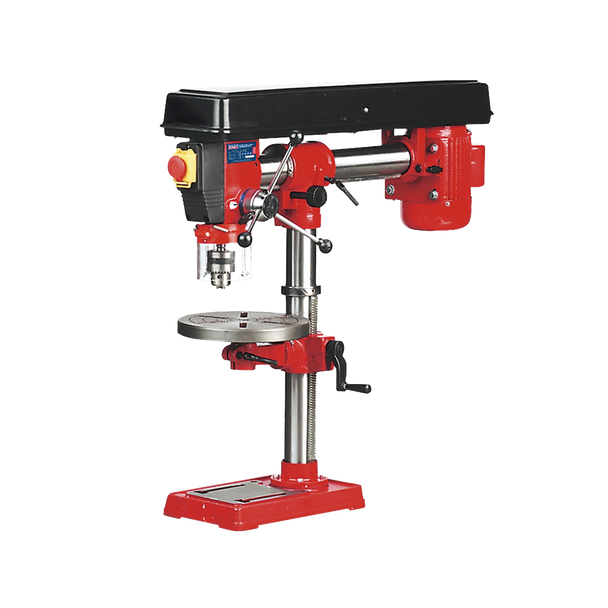

Description
• Heavy-duty construction.
• Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch.
• Radial feature allows off-table drilling and angle drilling.
• Features a maximum throat depth of 420mm.
• Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit.
• Also available as floor standing type - GDM1630FR.
• Mortise attachment available, order Model No. MA10.
• 16mm(5/8") Capacity chuck No. 2MT.
• Height: 820mm.
• Spindle Centre to Column - Max: 420mm.
• Motor Power: 550W.
• Column Diameter: 60mm.
• Spindle Travel: 80mm.
• Weight: 43kg.
• Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch.
• Radial feature allows off-table drilling and angle drilling.
• Features a maximum throat depth of 420mm.
• Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit.
• Also available as floor standing type - GDM1630FR.
• Mortise attachment available, order Model No. MA10.
• 16mm(5/8") Capacity chuck No. 2MT.
• Height: 820mm.
• Spindle Centre to Column - Max: 420mm.
• Motor Power: 550W.
• Column Diameter: 60mm.
• Spindle Travel: 80mm.
• Weight: 43kg.
Spare Parts
Specification & Documents
Base Size: |
345 x 215mm |
Collar Diameter: |
Ø60mm |
Column Diameter: |
Ø60mm |
Drilling Capacity (Chuck Size): |
16mm |
Maximum Distance Spindle to Base: |
470mm |
Maximum Distance Spindle to Table: |
300mm |
Motor Power: |
550W |
Number of Speeds: |
5 |
Optional Accessories: |
GDMX/KC - Keyless Pillar Drill Chuck 16mm |
Overall Height: |
820mm |
Radial Arm Travel: |
285mm |
Speed Range: |
500-2450rpm |
Spindle Centre to Column: |
420mm |
Spindle Nose Taper: |
MT2 |
Spindle Travel: |
80mm |
Supply: |
230V |
Swing: |
840mm |
Nett Weight: |
43kg |
Working Base Surface Size: |
160 x 180mm |
Working Table Surface Size: |
Ø310mm |
Barcode: |
5024209116831 |
Instructions: |
|
Declaration of Conformity: |
|
Parts Diagram: |
